Part Number # MPDB69082
SKU # 2460302
MPDB69082

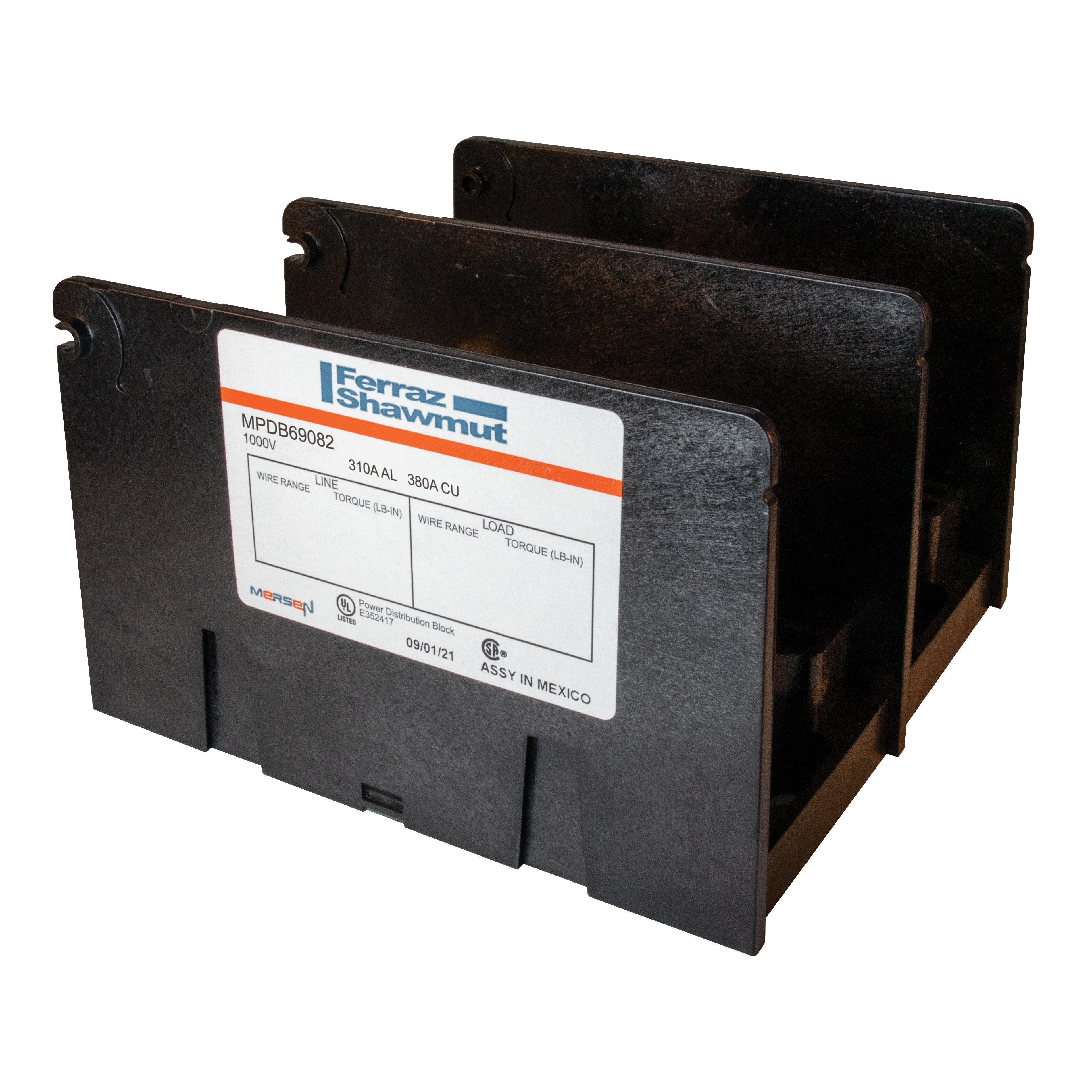

Mersen MPDB69082 Large Open Style Power Distribution Block, 1000 V AC/DC, 380 A, 2 Poles, 14 to 2/0 AWG Wire, Polycarbonate
Part Number # MPDB69082
SKU # 2460302
$759.27
Typical price:$1749.36 /
MPDB69082 Key Features
| Part Number # : | MPDB69082 |
|---|---|
| SKU #: | 2460302 |
| Amperage Rating: | 380 A |
| Dimensions: | 7.89 in W x 5.7 in D x 4.75 in H |
| Finish: | TiN Coated |
| Number of Poles: | 2 |
| Series: | MPDB |
| Short Circuit Current Rating (kA): | 100 kA |
| Type: | Large Open Style |
| Wire Size: | 14 to 2/0 AWG |
| Country of origin: | MX |
| Material: | Polycarbonate |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39121453 |
| UPC: | 782001451103 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$759.27
Typical price:$1749.36 /
Quantity:
- Mersen Power Distribution Block, Large Open Style, Series: MPDB, 1000 V AC/DC, 380 A, 2 Pole, 1 Primary Connections/Pole, 12 Secondary Connection/Pole, 14 to 2/0 AWG Wire, 100 kA Short Circuit, Polycarbonate, TiN Coated, Black, 7.89 in W x 5.7 in D x 4.75 in H Dimensions
MPDB69082 Application
Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction and Tap-Off Point ApplicationsMPDB69082 Item Features
- Adder poles can be stacked to form multi-pole units in the field without the use of tools, adder poles allow for customization of primary and secondary wire combinations
- Aluminum connectors accept both aluminum or copper wire while copper connectors accept copper wire only and all 1-piece tin plated
- Insulators are virtually unbreakable, made of glass-filled polycarbonate, see-through hinged safety covers are optional and provide a greater deg of safety and shock resistance where required, hinged covers can be installed without tools
- 1 in through air and 2 in over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL508A
- Polycarbonate safety covers provide dead-front protection
- Each cover has a test probe hole in the center for circuit checking
- Tin plated aluminum contact
MPDB69082 Standards
RoHS Compliant|UL 1953 File No. E352417|CSA Class 6228-01SKU #2460302Part Number #MPDB69082UNSPSC39121453UPC782001451103
Image provided may only be a representation of final product and may include optional equipment
