Part Number # MPDB67532
SKU # 2460304
MPDB67532

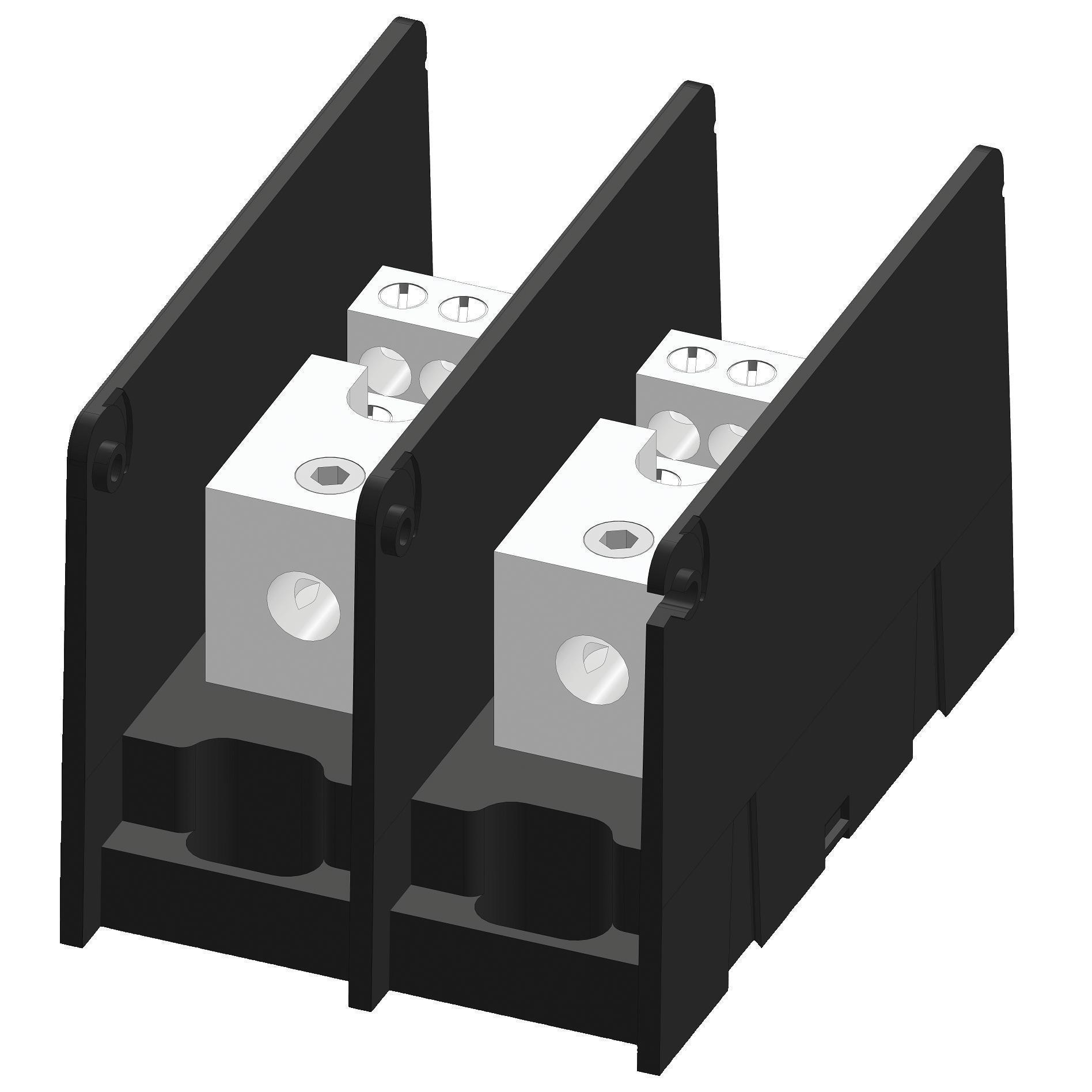

Mersen MPDB67532 Intermediate Open Style Power Distribution Block, 1000 V AC/DC, 270 A, 2 Poles, 14 to 2/0 AWG Wire, Polycarbonate
Part Number # MPDB67532
SKU # 2460304
$518.01
Typical price:$1193.49 /
MPDB67532 Key Features
| Part Number # : | MPDB67532 |
|---|---|
| SKU #: | 2460304 |
| Amperage Rating: | 270 A |
| Dimensions: | 3.57 in L x 4 in W x 2.62 in H |
| Finish: | TiN Coated |
| Number of Poles: | 2 |
| Series: | MPDB |
| Short Circuit Current Rating (kA): | 100 kA |
| Type: | Intermediate Open Style |
| Wire Size: | 14 to 2/0 AWG |
| Country of origin: | MX |
| Material: | Polycarbonate |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39121453 |
| UPC: | 782001453954 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$518.01
Typical price:$1193.49 /
Quantity:
- Mersen Power Distribution Block, Intermediate Open Style, Series: MPDB, 1000 V AC/DC, 270 A, 2 Pole, 2 Primary Connections/Pole, 10 Secondary Connection/Pole, 14 to 2/0 AWG Wire, 100 kA Short Circuit, Polycarbonate, TiN Coated, 3.57 in L x 4 in W x 2.62 in H Dimensions
MPDB67532 Application
Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction and Tap-Off Point ApplicationsMPDB67532 Item Features
- Adder poles can be stacked to form multi-pole units in the field without the use of tools, adder poles allow for customization of primary and secondary wire combinations
- Aluminum connectors accept both AL or CU wire while copper connectors accept CU wire only and all 1-piece tin-plated
- Insulators are virtually unbreakable, made of glass-filled polycarbonate, see-through hinged safety covers are optional and provide a greater deg of safety and shock resistance where required, hinged covers can be installed without tools
- 1 in through air and 2 in over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL508A
- Polycarbonate safety covers provide dead-front protection
- Each cover has a test probe hole in the center for circuit checking
- Tin plated aluminum contact
MPDB67532 Standards
CSA Class 6228 01|RoHS Compliant|UL 1953/File No. E352417SKU #2460304Part Number #MPDB67532UNSPSC39121453UPC782001453954
Image provided may only be a representation of final product and may include optional equipment
