Part Number # MPDB69111
SKU # 2460305
MPDB69111

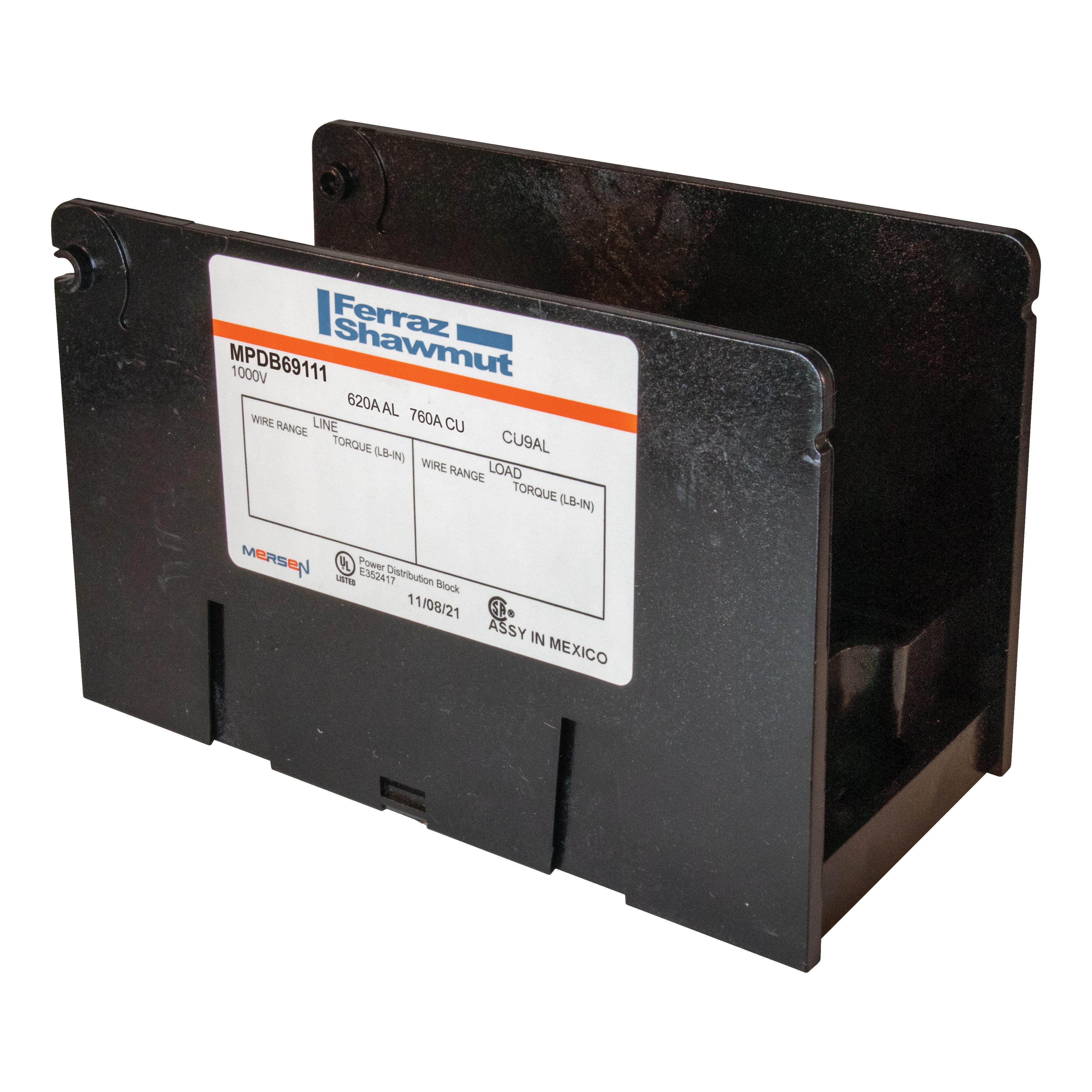

Mersen MPDB69111 Large Open Style Power Distribution Block, 600 V AC, 760 A, 1 Pole, 4 AWG to 500 kcmil Wire, Polycarbonate
Part Number # MPDB69111
SKU # 2460305
$1331.58
Typical price:$3067.97 /
MPDB69111 Key Features
| Part Number # : | MPDB69111 |
|---|---|
| SKU #: | 2460305 |
| Amperage Rating: | 760 A |
| Dimensions: | 3.55 in H x 2.73 in W x 5.7 in D |
| Number of Poles: | 1 |
| Series: | MPDB |
| Short Circuit Current Rating (kA): | 100 kA |
| Type: | Large Open Style |
| Wire Size: | 4 AWG to 500 kcmil |
| Country of origin: | MX |
| Material: | Polycarbonate |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39121453 |
| UPC: | 782001452506 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1331.58
Typical price:$3067.97 /
Quantity:
- Mersen Power Distribution Block, Large Open Style, Series: MPDB, 600 V AC, 760 A, 1 Pole, 2 Primary Connections/Pole, 12 Secondary Connection/Pole, 4 AWG to 500 kcmil Wire, 100 kA Short Circuit Current, Polycarbonate, Black, 3.55 in H x 2.73 in W x 5.7 in D
MPDB69111 Application
Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction Tap-Off PointsMPDB69111 Item Features
- Aluminum connectors accept both aluminum or copper wire while copper connectors accept copper wire only
- Connectors are all 1-piece tin plated
- Insulators are virtually unbreakable, made of glass-filled polycarbonate
- See-through, hinged safety covers provide a greater degree of safety and shock resistance where required
- Hinged covers can be installed without tools
- 1 in through air and 2 in over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL 508A
- Polycarbonate safety covers provide dead-front protection
- One cover is needed for each pole
- Each cover has a test probe hole in the center for circuit checking
- 4 AWG to 500 kcmil Al line, 14 to 4 AWG Al load
MPDB69111 Standards
RoHS Compliant|UL File No. E352417|CSA Class 6228-01, File No. 069363_0_000|CE Certified|UL94-V0 FlammabilitySKU #2460305Part Number #MPDB69111UNSPSC39121453UPC782001452506
Image provided may only be a representation of final product and may include optional equipment
