Part Number # MPDB69092
SKU # 2460306
MPDB69092

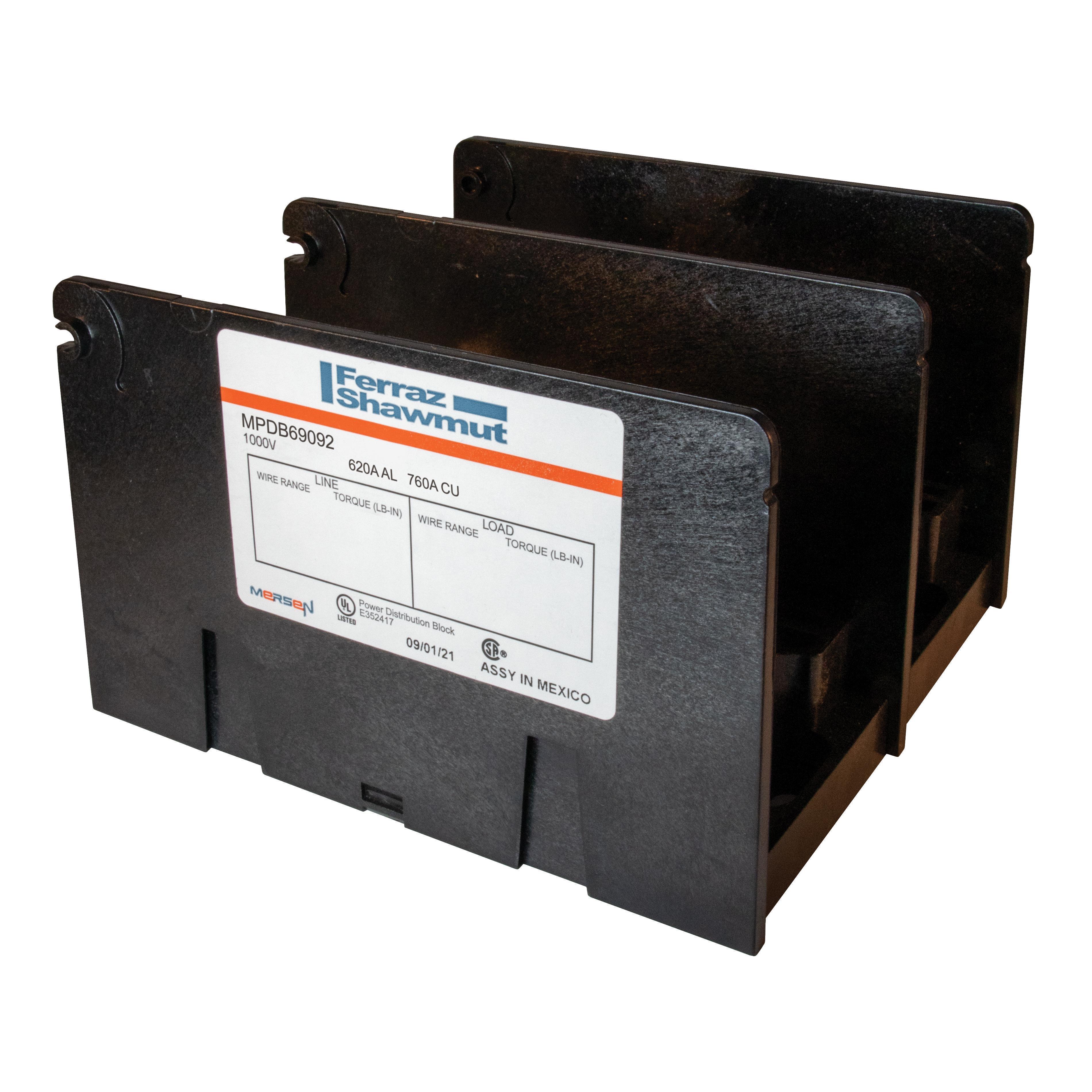

Mersen MPDB69092 Large Open Style Power Distribution Block, 1000 V AC/DC, 760 A, 2 Poles, 4 AWG to 500 kcmil Wire, Polycarbonate
Part Number # MPDB69092
SKU # 2460306
$979.20
Typical price:$2256.08 /
MPDB69092 Key Features
| Part Number # : | MPDB69092 |
|---|---|
| SKU #: | 2460306 |
| Amperage Rating: | 760 A |
| Dimensions: | 7.89 in W x 5.7 in D x 4.75 in H |
| Finish: | TiN Coated |
| Number of Poles: | 2 |
| Series: | MPDB |
| Short Circuit Current Rating (kA): | 100 kA |
| Type: | Large Open Style |
| Wire Size: | 4 AWG to 500 kcmil |
| Country of origin: | MX |
| Material: | Polycarbonate |
| Manufacturer Name: | MERSEN |
| UNSPSC: | 39121453 |
| UPC: | 782001451141 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$979.20
Typical price:$2256.08 /
Quantity:
- Mersen Power Distribution Block, Large Open Style, Series: MPDB, 1000 V AC/DC, 760 A, 2 Pole, 2 Primary Connections/Pole, 2 Secondary Connection/Pole, 4 AWG to 500 kcmil Wire, 100 kA Short Circuit, Polycarbonate, TiN Coated, Black, 7.89 in W x 5.7 in D x 4.75 in H Dimensions
MPDB69092 Application
Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction and Tap-Off Point ApplicationsMPDB69092 Item Features
- Adder poles can be stacked to form multi-pole units in the field without the use of tools, adder poles allow for customization of primary and secondary wire combinations
- Aluminum connectors accept both aluminum or copper wire while copper connectors accept copper wire only and all 1-piece tin plated
- Insulators are virtually unbreakable, made of glass-filled polycarbonate, see-through hinged safety covers are optional and provide a greater deg of safety and shock resistance where required, hinged covers can be installed without tools
- 1 in through air and 2 in over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL508A
- Polycarbonate safety covers provide dead-front protection
- Each cover has a test probe hole in the center for circuit checking
- Tin plated aluminum contact
MPDB69092 Standards
RoHS Compliant|UL 1953 File No. E352417|CSA Class 6228-01SKU #2460306Part Number #MPDB69092UNSPSC39121453UPC782001451141
Image provided may only be a representation of final product and may include optional equipment
