9005860000
Weidmuller 9005860000
Part Number # 9005860000
SKU # 2460318
$384.00 / 5000Each
Typical price:$425.00 / Each
Weidmuller 9005860000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 9005860000 |
| SKU #: | 2460318 |
| Conductor Size: | 20 AWG |
| Overall Length: | 14 mm |
| Temperature Rating (Degrees F): | 105 deg C |
| Type: | Type H0.5/14D |
| Connection type: | Crimped |
| Contact material: | Electro-Galvanized Cathode Copper |
| Country of origin: | DE |
| Insulation material: | Polypropylene |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163102 |
| UPC: | 04008190275921 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$384.00 / 5000Each
Typical price:$425.00 / Each
Quantity:

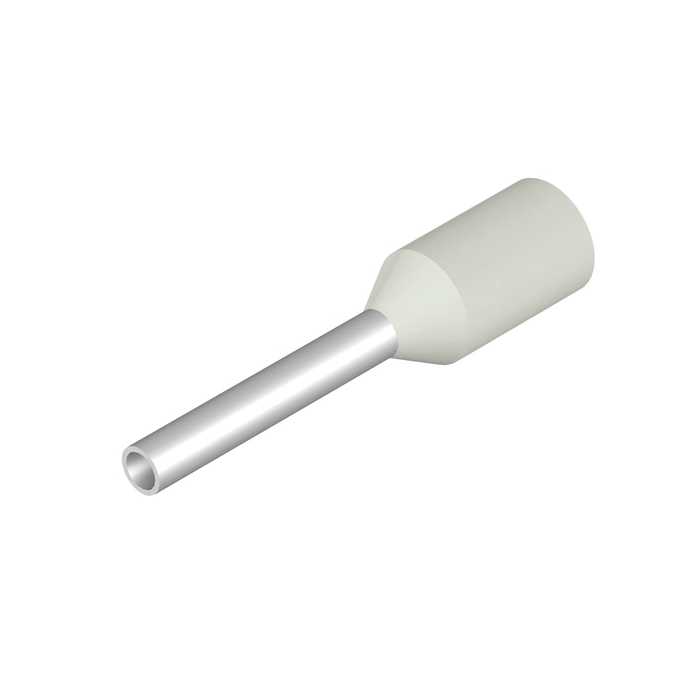

- Weidmuller Wire End Ferrule, Type H0.5/14D, 20 AWG Conductor, Insulated Insulation, Polypropylene Insulation, Crimped, Electro-Galvanized Cathode Copper Contact, 105 deg C, 14 mm Overall Length, Milky White
9005860000 Item Features
- Polypropylene conical entry funnel
- Heat-resistant up to 105 deg C
- The entry funnel can also be manufactured from a non-flammable material on request
- Dimensional tolerances to DIN 46228 Part 4
- 0.15 mm metal sleeve thickness
- 0.25 mm plastic collar thickness
- 0.5 sq-mm conductor cross-section
- 1 mm contact surface diameter
- 2.6 mm collar diameter
- 10 mm stripping length
9005860000 Standards
CSA Certified|cULus Listed|RU Compliant|UL E354986|RoHS CompliantSKU #2460318Part Number #9005860000UNSPSC31163102UPC04008190275921
Image provided may only be a representation of final product and may include optional equipment
