Part Number # METSEPM2120
SKU # 2460513
METSEPM2120
Schneider Electric METSEPM2120
Part Number # METSEPM2120
SKU # 2460513
$595.03 / Each
Typical price:$684.28 / Each
Schneider Electric METSEPM2120 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | METSEPM2120 |
| SKU #: | 2460513 |
| Dimensions: | 3.78 in H x 3.78 in W x 3.00 in D |
| Display Type: | 7-Segment LED |
| Enclosure Type: | IP30/IP54 |
| UNSPSC: | 41113708 |
| UPC: | 00060648080014 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$595.03 / Each
Typical price:$684.28 / Each
Quantity:
- Schneider Electric METSEPM2120, 44 to 277 V AC/DC, 50 to 60 Hz Frequency, 1,5 Accuracy, 7-Segment LED Display, IP30/IP54 Enclosure, 3.78 in H x 3.78 in W x 3.00 in D Dimensions, Polycarbonate
METSEPM2120 Application
For this meter is either 1A or 5A inputMETSEPM2120 Item Features
- EasyLogic PM2000 series energy and power meters provide all the measurement capabilities required to monitor an electrical installation in a single 96x96 mm unit
- LED and LCD display options
- Ctive energy Class 0.5S as per IEC 62053-22, Active energy Class 1 as per IEC 62053-21
- Reactive energy Class 1 as per IEC 62053-24 standard
- Active load timers monitor meter operation and Run hours, advising maintenance requirements
- Field configurable password for securing setup information to prevent tampering of integrated values
- Cyber security option to disable RS-485 port through front panel keys, protecting against unauthorized access, which is helpful during installation and trouble shooting of communication network
- LED display: Auto scaling, 9+3 digits for energy, 4 digits for other parameters
- LCD display: 6 digits with auto scaling for energy and other parameters 12 A.M. snap shot summary page stored in the meter for 24 hours
- 2 configurable rate counters display values in customer specified units based on energy measured
- Energy preset feature for retrofit application
- Optional I/O modules available: 2 Digital Inputs& 2 Outputs or 2 Analogue Inputs
- 2 Outputs for comprehensive WAGES monitoring
- Mounts using two clips, no tools required
- Compact size with maximum of 54 mm depth
- Connectable up to 480 V ac L-L +/- 10% without voltage transformers for category III, double insulated installations
- Test LED on front panel for test and calibration on site or in laboratory
- Heart-beat LED indicates normal functioning and communication status if connected to RS-485 network
- Total harmonic distortion up to the 15th harmonic power quality analysis
METSEPM2120 Standards
CE IEC 61010-1CULus UL 61010-1CULus conforming to CSA C22.2 No 61010-1RCMEACC-TickSKU #2460513Part Number #METSEPM2120UNSPSC41113708UPC00060648080014

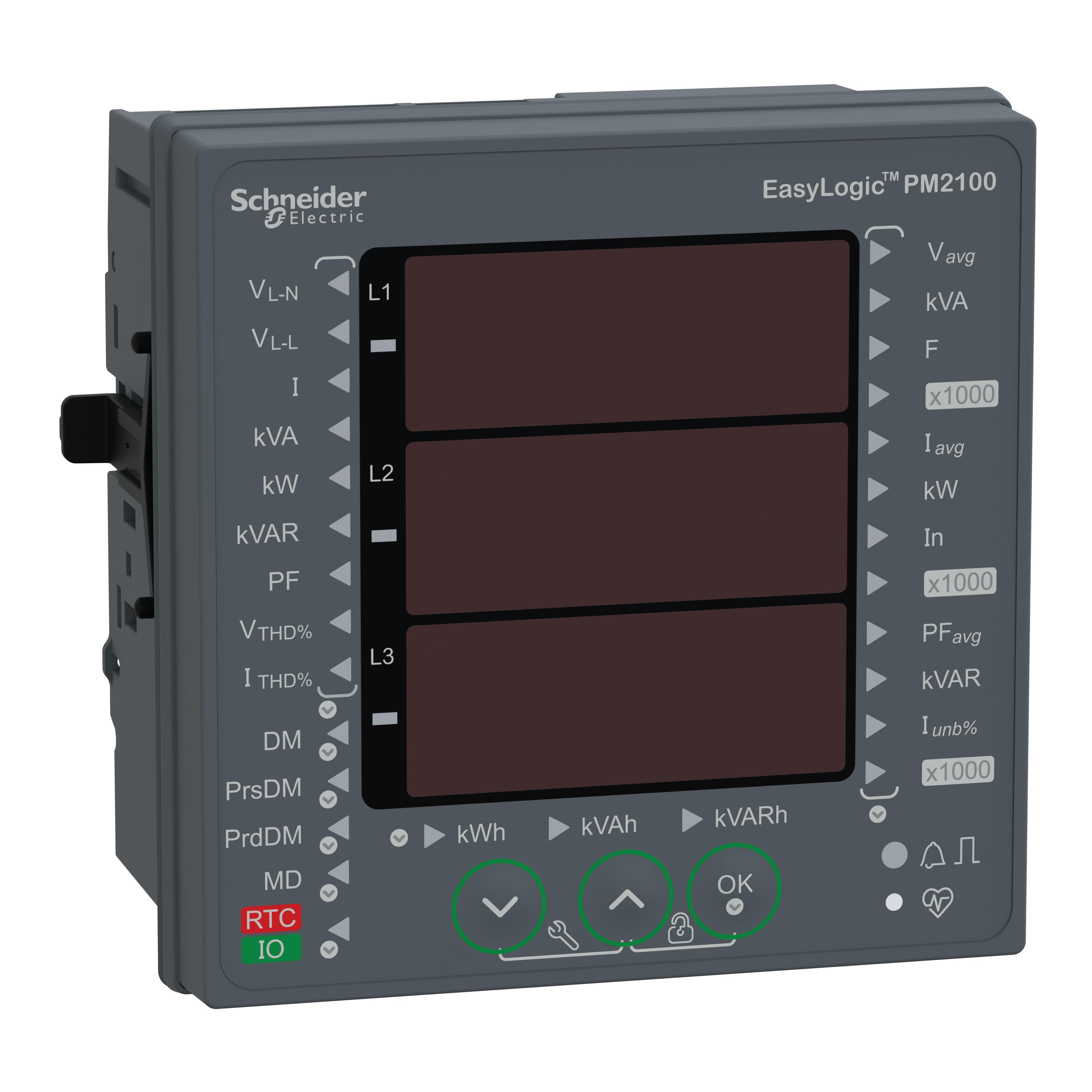

Image provided may only be a representation of final product and may include optional equipment
