1844050000
Weidmuller 1844050000
Part Number # 1844050000
SKU # 2460861
$452.75 / 36Each
Typical price:$521.21 / Each
Weidmuller 1844050000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1844050000 |
| SKU #: | 2460861 |
| Connector Size: | 1.5 sq-mm |
| Connector Type: | Female Plug |
| Dimensions: | 12.2 mm H x 50.44 mm W x 31.8 mm D |
| Number of Positions: | 8 |
| Series: | BL/SL 5.08 Series |
| Temperature Rating (Degrees F): | -50 to 100 deg C |
| Termination Type: | Top Screw |
| Type: | High Current Wire Connection |
| Wire Size: | 26 to 14 AWG |
| Contact material: | CuSn |
| Housing material: | PBT |
| Insulation resistance: | >=10^8 Ohm |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 31163101 |
| UPC: | 04032248355976 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$452.75 / 36Each
Typical price:$521.21 / Each
Quantity:

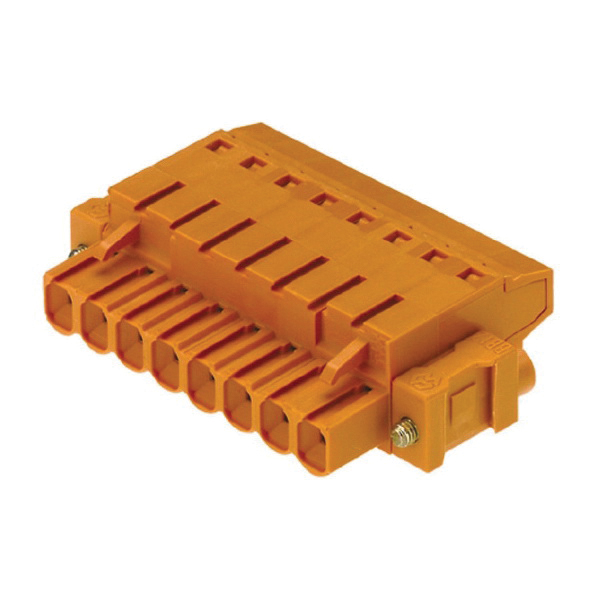

- Weidmuller OMNIMATE Signal PCB Plug-In Connector, High Current Wire Connection, Series: BL/SL 5.08 Series, 8 Positions, 1 Row, 5.08 mm Pitch/Row Spacing, 26 to 14 AWG Wire, 300/400 V, Female Plug Connector, 1.5 sq-mm Connector, Top Screw Termination, CuSn Contact, >=10^8 Ohm Insulation Resistance, PBT Housing Material, -50 to 100 deg C, Orange, 12.2 mm H x 50.44 mm W x 31.8 mm D Dimensions
1844050000 Item Features
- Female plugs with top screw connection system for connecting wires with straight outlet direction and screw flange
- The female connectors provide space for labelling and can be coded
- 400 V IEC, 300V UL
- https://youtu.be/Ifq_mdNjF4g
1844050000 Standards
RoHS Compliant|cULus File No. E60693 Recognized|IEC 60664-1, IEC 61984|UL 94 V-0 Flammability Rating|EAC CertifiedSKU #2460861Part Number #1844050000UNSPSC31163101UPC04032248355976
Image provided may only be a representation of final product and may include optional equipment
