Brand: Southwire
Southwire 58541699
Part Number # 58541699
SKU # 2461065

Southwire 58541699 Key Features
| Brand: | Southwire |
|---|---|
| Part Number # : | 58541699 |
| SKU #: | 2461065 |
| Conductor Type: | Tinned Copper |
| Insulation material: | Cross Linked |
| Jacket Material: | Thermoplastic Elastomer |
| Outside Diameter: | 698 mil |
| Temperature Rating (Degrees F): | 90 deg C Dry/Wet, -40 deg C Cold |
| Type: | Type TC-ER |
| UNSPSC: | 26121600 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.

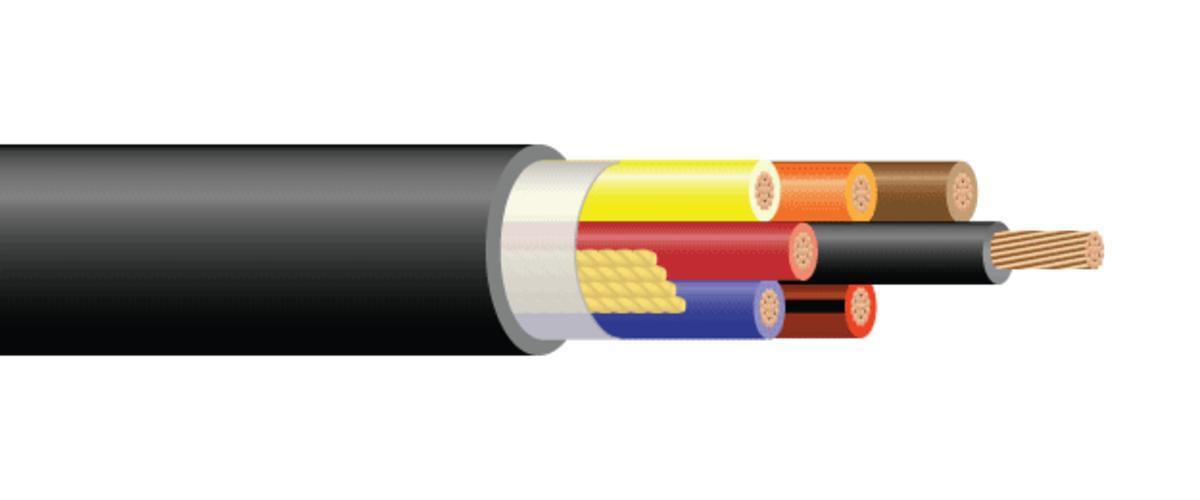

- Southwire, 58541699, Shielded Multiconductor Cable, Type TC-ER, 600, 1000 V, 4 Conductors, Tinned Copper Conductor, 698 mil OD, 105 Strands, Cross Linked Insulation, Thermoplastic Elastomer Jacket, Black Jacket, 90 deg C Dry/Wet, -40 deg C Cold
58541699 Application
Suitable for Cable tray, Conduit, Raceways, Exposed run (TC-ER) and Machine tool wiring conforming to NFPA 79 201858541699 Item Features
- Power supply cable for VFDs and motors, suitable for cable tray, conduit, raceways, exposed run (TC-ER) and machine tool wiring conforming to NFPA 79 2018
- Suitable for free air and direct burial
58541699 Standards
ASTM B33|ASTM B172|ASTM B174|UL 44|UL 758|UL 1277|UL 2277|CSA C22.2 No. 210|CSA C22.2 No.230|CSA C22.2 No. 239|CE/RoHS-2SKU #2461065Part Number #58541699UNSPSC26121600UPC
Image provided may only be a representation of final product and may include optional equipment
