Part Number # 16252-R
SKU # 2461127
16252-R
LEVITON 16252-R
Part Number # 16252-R
SKU # 2461127
$514.50 / 50Each
Typical price:$1294.00 / Each
LEVITON 16252-R Key Features
| Brand: | LEVITON |
|---|---|
| Part Number # : | 16252-R |
| SKU #: | 2461127 |
| Amperage Rating: | 15 A |
| Dimensions: | 4.06 in H x 1.52 in W x 1.14 in D |
| Enclosure: | NEMA WD-6 |
| Horsepower: | 1/2 hp |
| NEMA Rating: | NEMA 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 60 deg C |
| Terminal Type: | Back/Side Wire |
| Type: | Heavy Duty Self Grounding |
| Country of origin: | MX |
| Material: | PBT Polyester Blend |
| Manufacturer Name: | Leviton |
| UNSPSC: | 39121406 |
| UPC: | 00078477663110 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$514.50 / 50Each
Typical price:$1294.00 / Each
Quantity:
LEVITON 16252-R
Brand: LEVITON
Part Number: 16252-R
Additional Description: LVTN-16252-R RED 15A DECPLUS RECEPT

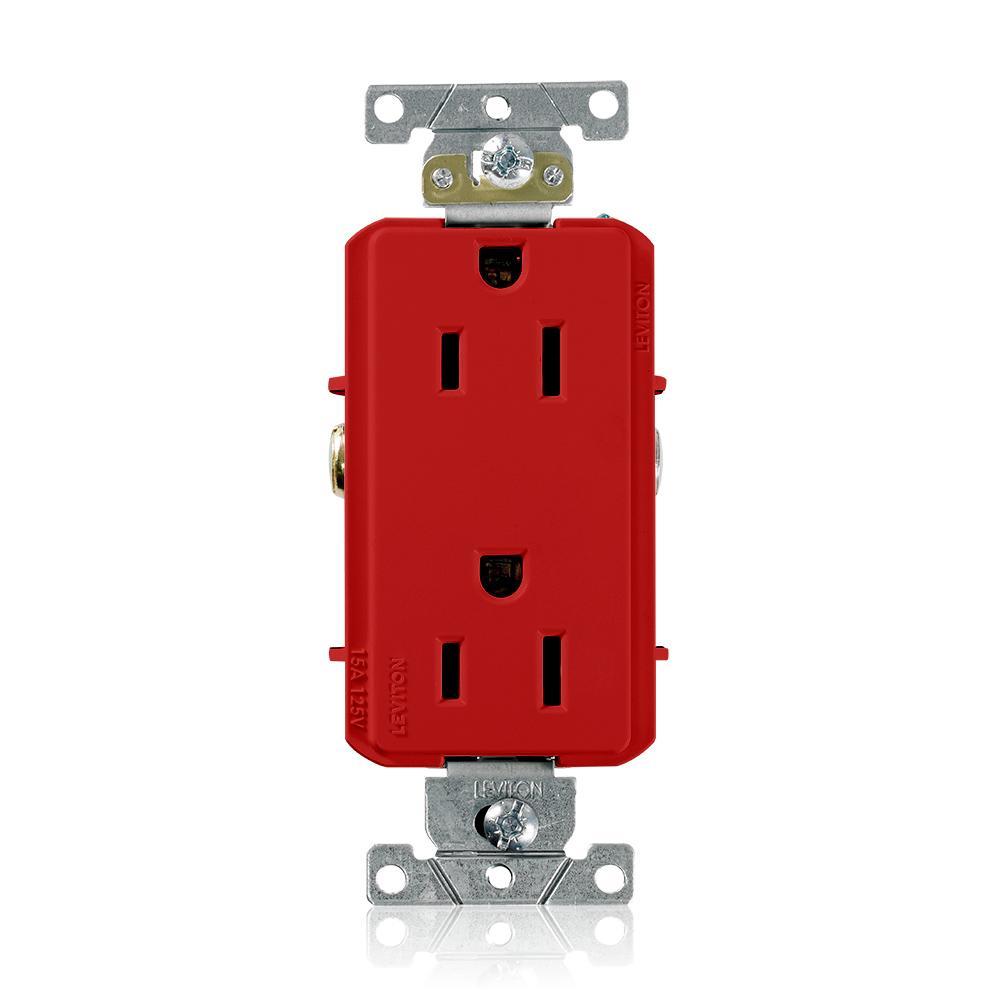

Catalog Description: 15A 125V NEMA 5-15R 2P 3W Decora Plus. Duplex Receptacle. Straight Blade. Commercial Grade. Self Grounding. Back and Side Wired. Steel Strap - Red
16252-R Application
Commercial and Industrial Applications16252-R Standards
UL 498 File No. E13399 Listed|ANSI (C-73)|CSA C22.2 No. 42 File No. LR-406, NOM (057), UL 94 Flammability RatedSKU #2461127Part Number #16252-RUNSPSC39121406UPC00078477663110
