Part Number # 16252-GY
SKU # 2461129
16252-GY
LEVITON 16252-GY
Part Number # 16252-GY
SKU # 2461129
LEVITON 16252-GY Key Features
| Brand: | LEVITON |
|---|---|
| Part Number # : | 16252-GY |
| SKU #: | 2461129 |
| Amperage Rating: | 15 A |
| Dimensions: | 4.06 in H x 1.52 in W x 1.14 in D |
| Enclosure: | NEMA WD-1/WD-6 |
| Horsepower: | 1/2 hp |
| NEMA Rating: | NEMA 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 60 deg C |
| Terminal Type: | Back/Side Wire |
| Type: | Heavy Duty Self Grounding |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Manufacturer Name: | Leviton |
| UNSPSC: | 39121406 |
| UPC: | 00078477819692 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
LEVITON 16252-GY
Brand: LEVITON
Part Number: 16252-GY

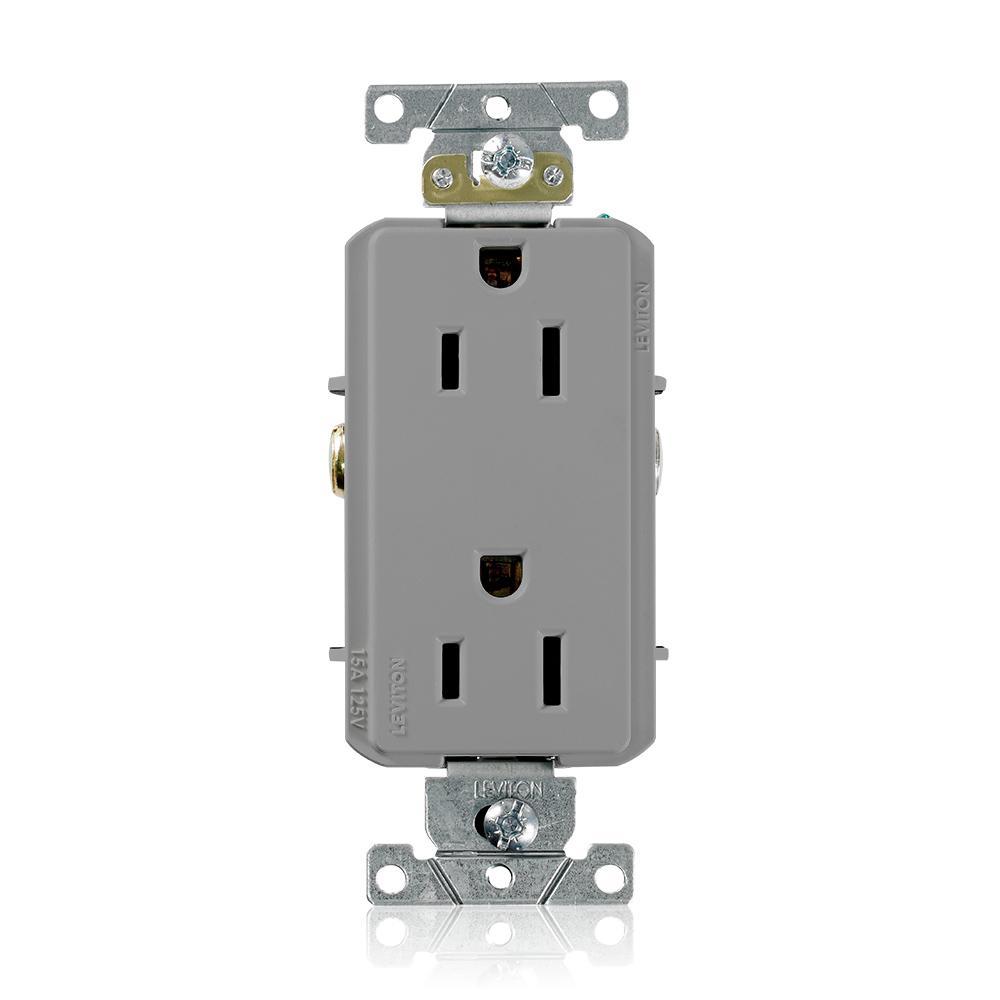

Decora® Plus Straight Blade Duplex Receptacle, Heavy Duty Self Grounding, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, Gray, 4.06 in H x 1.52 in W x 1.14 in D Dimensions
Additional Description: LVTN-16252-GY GY REC DUP DEC 2PO 3WI 5-15R 15A125V
Catalog Description: 15 Amp, 125 Volt, Decora Plus Duplex Receptacle, Straight Blade, Commercial Grade, Self Grounding, Gray
16252-GY Item Features
- Back wire and side wire terminal options
- Heavy gauge locked-in wraparound strap
- Back wire terminals accept up to no 10 AWG copper or copper clad wire, solid or stranded
- Brass staked on self-grounding clip
- Heavy duty triple-wipe brass contacts for long service life
- Impact-resistant thermoplastic construction
- Wallbox mounting
- Self-grounding
- 1-phase
- 2000 VAC minimum dielectric strength
- Zinc plated steel strap
- 14 to 10 AWG wire terminal
16252-GY Standards
ANSI C-73|CSA C22.2 No. 42 File No. LR-406|NOM 057|UL 498 File No. E13399|UL 94 Flammability RatingSKU #2461129Part Number #16252-GYUNSPSC39121406UPC00078477819692
Image provided may only be a representation of final product and may include optional equipment
