Part Number # BFV14-10Q
SKU # 2461171
BFV14-10Q
3M BFV14-10Q
Part Number # BFV14-10Q
SKU # 2461171
3M BFV14-10Q Key Features
| Brand: | 3M |
|---|---|
| Part Number # : | BFV14-10Q |
| SKU #: | 2461171 |
| Temperature Rating (Degrees F): | -40 to 221 deg F |
| Tongue Size: | 0.3 in W x 0.03 in THK |
| Tongue Type: | Fork |
| Type: | Block Insulated |
| Length: | 0.85 in |
| Material: | Electrolytic Copper/Vinyl |
| Barrel Size: | 0.09 in ID x 0.25 in L |
| Barrel Type: | Butted Seam |
| Conductor Size: | 16 to 14 AWG |
| Conductor Type: | Stranded Copper |
| Country of origin: | US |
| Finish: | Tin Plated |
| Manufacturer Name: | 3M |
| Specifications: | 0.17 in Dia Max Insulation, 1/4 in Clearance |
| UNSPSC: | 31200000 |
| UPC: | 00051128599907 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
3M BFV14-10Q
Brand: 3M
Part Number: BFV14-10Q
Additional Description: 3M -7000133648 3M Highland Vinyl Insulated Butted Seam Block Forks 7000133648

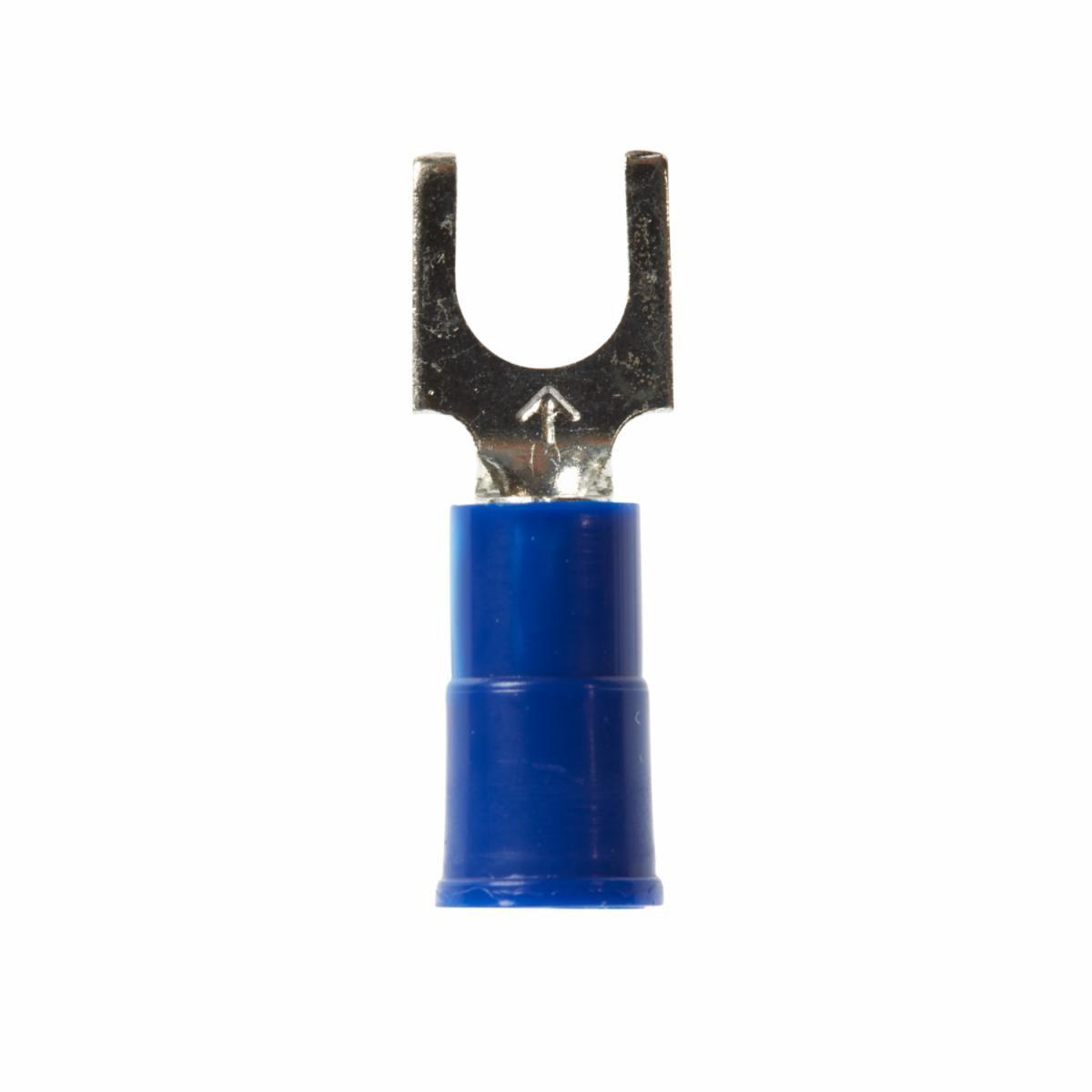

Catalog Description: 3M™ Highland™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
BFV14-10Q Application
Building Wire, Fixtures or Luminaires and Signs ApplicationsBFV14-10Q Item Features
- Abrasion and corrosion-resistant, flared, vinyl sleeve insulation ensures easy crimping
- Crimp termination
- Free hanging (in-line) mounting
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Suitable for use in a terminal block
BFV14-10Q Standards
UL File No. E23438|CSA File No. LR22190SKU #2461171Part Number #BFV14-10QUNSPSC31200000UPC00051128599907
Image provided may only be a representation of final product and may include optional equipment
