Mersen B1204051
Part Number # B1204051
SKU # 2461186

B1204051
Mersen B1204051
Part Number # B1204051
SKU # 2461186
Mersen B1204051 Key Features
| Brand: | Mersen |
|---|---|
| Part Number # : | B1204051 |
| SKU #: | 2461186 |
| Dimensions: | 74 mm H x 70 mm W x 205 mm L |
| UNSPSC: | 39121606 |
| UPC: | 00605340705669 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Mersen B1204051
Brand: Mersen
Part Number: B1204051

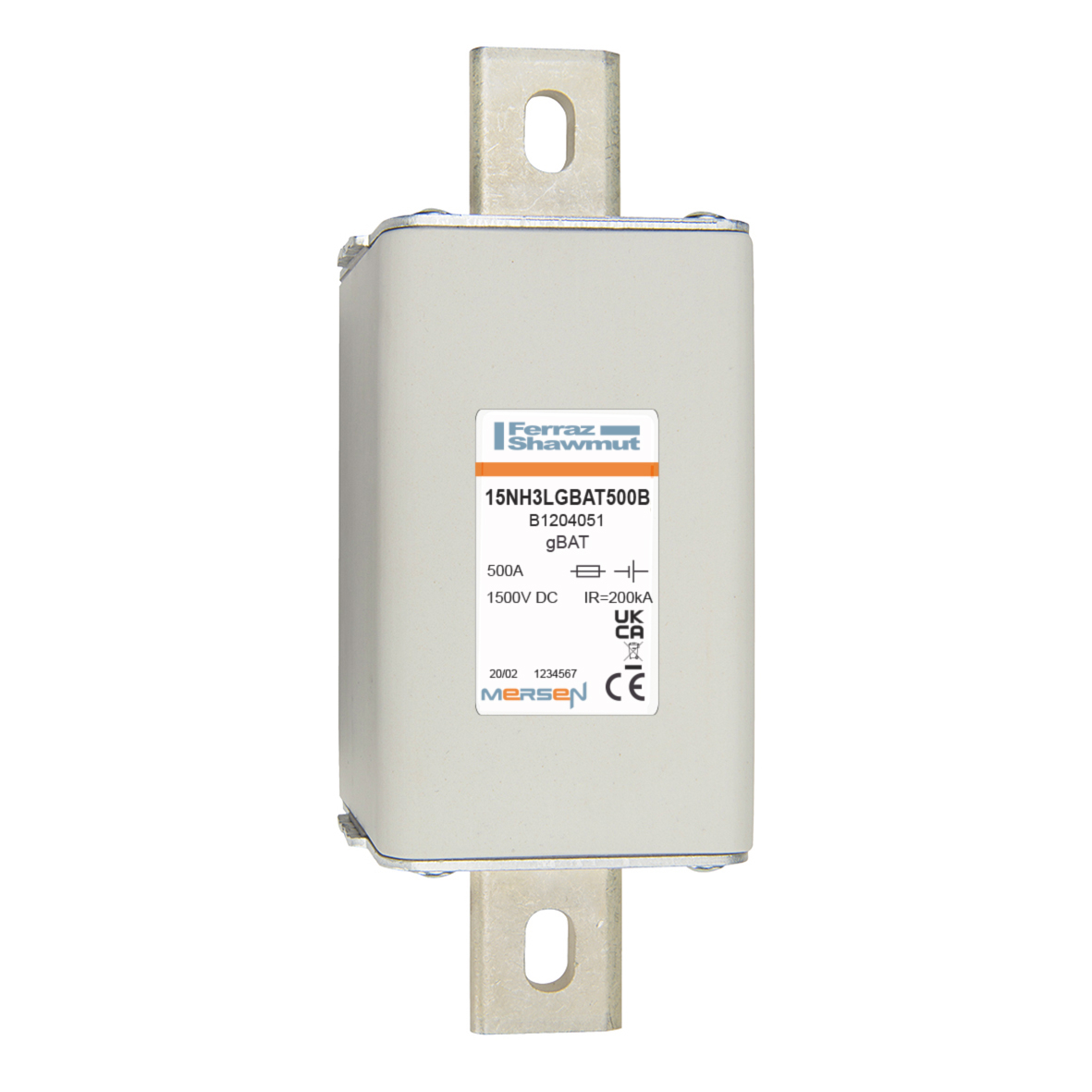

Mersen, B1204051, Fuse Link, Series: NH Series, 1.5 kV DC, 500 A, 74.5 W Power, Rated Breaking Capacity: 200 kA, Direct Mounting, 74 mm H x 70 mm W x 205 mm L Dimensions
Additional Description: MERS-B1204051 1500VDC NH3L gBAT 500A K BOLT
Catalog Description: Fuse-link gBAT 1500VDC Size 3L 500A With DIN Type Blades For Direct Mount
B1204051 Application
For Electrical energy storage, Battery storage system Line protection between battery system and DC/DC converter or battery inverter DC grid protectionB1204051 Item Features
- Mersen NH gBat fuse series was engineered specifically for protection of battery systems
- They offer full range protection and can protect very small over currents as well as DC fault current up to 150kA
- They are available with bolted type blades for direct mounting, or with plain blades
- Design for DC applications
- Full range breaking capacity
- Low watt losses
- Minimum breaking capacity 2IN
- High cycling performance
- High interrupting rating up to 150kA
B1204051 Standards
IEC 60269-7|RoHS ComplianceSKU #2461186Part Number #B1204051UNSPSC39121606UPC00605340705669
Image provided may only be a representation of final product and may include optional equipment
