Part Number # EMA41
SKU # 2461437
EMA41
Schneider Electric EMA41
Part Number # EMA41
SKU # 2461437
Schneider Electric EMA41 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | EMA41 |
| SKU #: | 2461437 |
| Dimensions: | 11.4 in H x 8.2 in W x 5.3 in D |
| Electrical Ratings: | 480Y/277 V AC |
| Environmental Conditions: | -4 to 149 deg f operating temperature, -40 to 149 deg f storage temperature, 0 to 95% operating humidity |
| Peak Surge Current: | 100 kA |
| Mounting type: | Surface/Flush |
| UNSPSC: | 39121634 |
| UPC: | 00047569000287 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric EMA41
Brand: Schneider Electric
Part Number: EMA41
Square D, EMA41, Surge Protection Module, 480Y/277 V AC Electrical Rating, 47 to 63 Hz Frequency, 4 Wires, 200 kA Short Circuit, 100 kA Peak Surge Current, 20 kA Nominal Discharge, 3 ph, Environmental Conditions: -4 to 149 deg f operating temperature, -40 to 149 deg f storage temperature, 0 to 95% operating humidity, NEMA 1 Enclosure, Surface/Flush Mounting, Lug Terminal, 11.4 in H x 8.2 in W x 5.3 in D Dimensions
Additional Description: SQD -EMA41 SPD T1 EMA 100KA 480Y 277V 3P4W
Catalog Description: Surge protective device, Surgelogic, EMA, 100kA, 480Y/277V, 3 phase, 4 wire, SPD type 1, UL 1283, NEMA 1
EMA41 Item Features
- Quality surge mitigation
- Has 100kA or 200kA per phase rating
- Mutiple voltage configurations to meet customers needs
EMA41 Standards
UL 1449:ed. 5|CSA C22.2 No 269.1|UL 96A|NEMA 1|UL 1283SKU #2461437Part Number #EMA41UNSPSC39121634UPC00047569000287

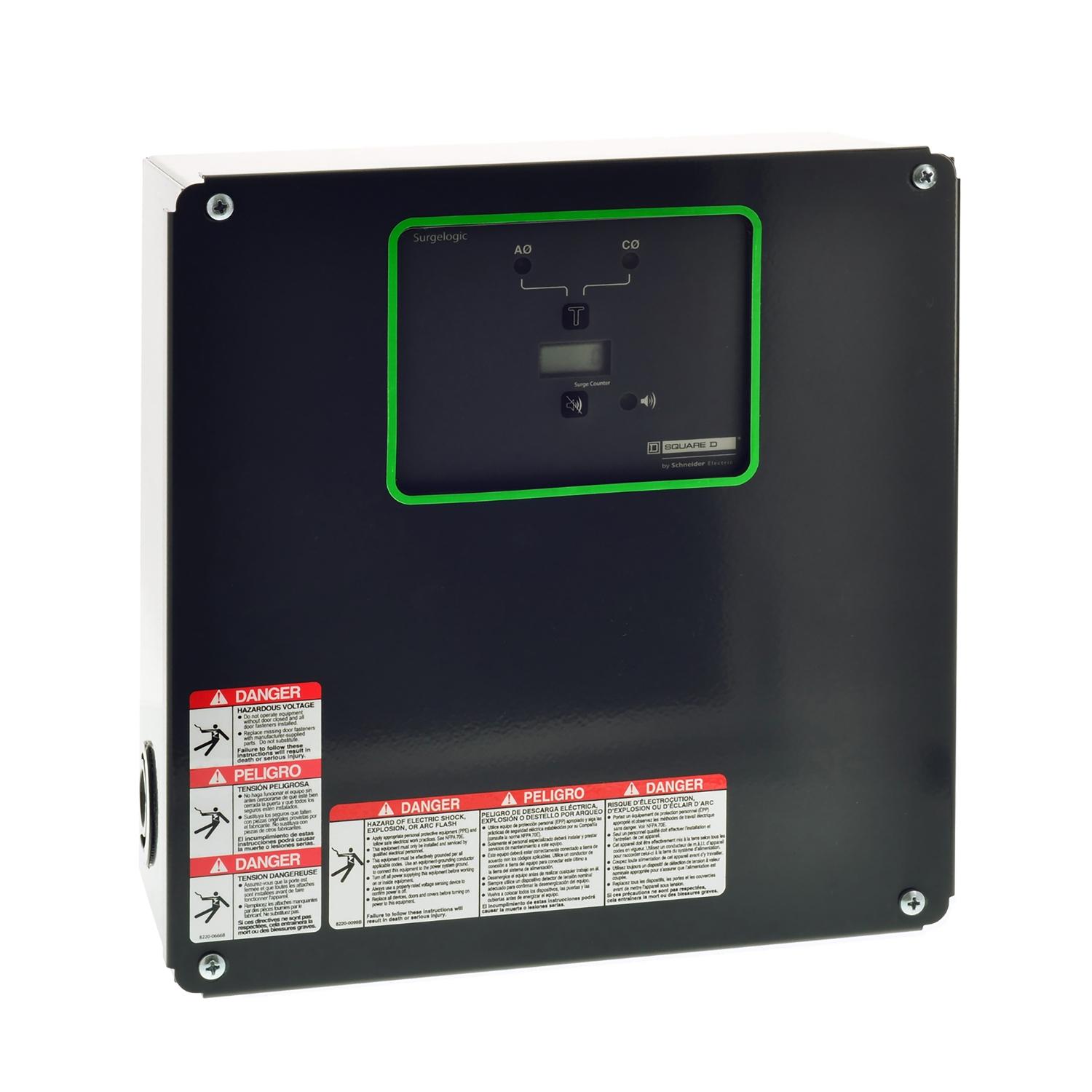

Image provided may only be a representation of final product and may include optional equipment
