Part Number # EMA42
SKU # 2461438
Brand: Schneider Electric
EMA42
Schneider Electric EMA42
Part Number # EMA42
SKU # 2461438
$2599.65 / Each
Typical price:$7500.00 / Each
Schneider Electric EMA42 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | EMA42 |
| SKU #: | 2461438 |
| Dimensions: | 11.4 in H x 8.2 in W x 5.3 in D |
| Electrical Ratings: | 480Y/277 V AC |
| Environmental Conditions: | -4 to 149 deg f operating temperature, -40 to 149 deg f storage temperature, 0 to 95% operating humidity |
| Peak Surge Current: | 200 kA |
| Mounting type: | Surface/Flush |
| UNSPSC: | 39121634 |
| UPC: | 00047569000294 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2599.65 / Each
Typical price:$7500.00 / Each
Quantity:
- Square D, EMA42, Surge Protection Module, 480Y/277 V AC Electrical Rating, 47 to 63 Hz Frequency, 4 Wires, 200 kA Short Circuit, 200 kA Peak Surge Current, 20 kA Nominal Discharge, 3 ph, Environmental Conditions: -4 to 149 deg f operating temperature, -40 to 149 deg f storage temperature, 0 to 95% operating humidity, NEMA 1 Enclosure, Surface/Flush Mounting, Lug Terminal, 11.4 in H x 8.2 in W x 5.3 in D Dimensions
EMA42 Item Features
- Quality surge mitigation
- Has 100kA or 200kA per phase rating
- Mutiple voltage configurations to meet customers needs
EMA42 Standards
UL 1449:ed. 5|CSA C22.2 No 269.1|UL 96A|NEMA 1|UL 1283SKU #2461438Part Number #EMA42UNSPSC39121634UPC00047569000294

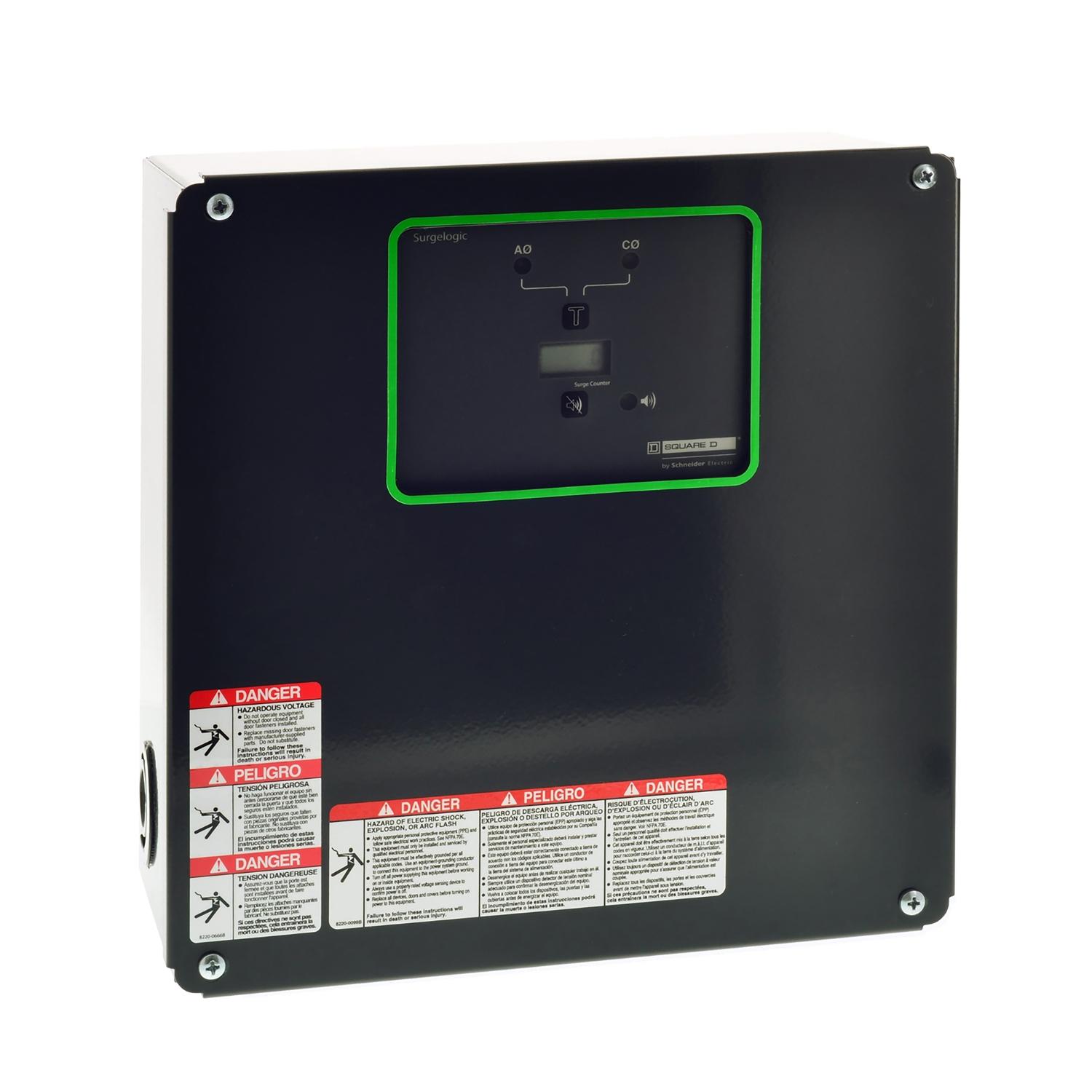

Image provided may only be a representation of final product and may include optional equipment
