Part Number # HWC43
SKU # 2461439
HWC43
Schneider Electric HWC43
Part Number # HWC43
SKU # 2461439
Schneider Electric HWC43 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | HWC43 |
| SKU #: | 2461439 |
| Dimensions: | 4.9 in H x 9.6 in W x 4.02 in D |
| Environmental Conditions: | -31 to 185 deg f operating temperature, -40 to 149 deg f storage temperature, 0 to 95% operating humidity |
| Peak Surge Current: | 300 kA |
| Terminal Type: | 10 AWG Wire |
| Mounting type: | Surface/Flush |
| UNSPSC: | 39121634 |
| UPC: | 00047569001048 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric HWC43
Brand: Schneider Electric
Part Number: HWC43
Square D, HWC43, Surge Protection Module, 480Y/277 V AC Electrical Rating, 47 to 63 Hz Frequency, 4 Wires, 200 kA Short Circuit, 300 kA Peak Surge Current, 20 kA Nominal Discharge, 3 ph, Environmental Conditions: -31 to 185 deg f operating temperature, -40 to 149 deg f storage temperature, 0 to 95% operating humidity, NEMA 4X Enclosure, Surface/Flush Mounting, 10 AWG Wire Terminal, 4.9 in H x 9.6 in W x 4.02 in D Dimensions
Additional Description: SQD -HWC43 SPD T2 HWC 300KA 480Y 277V 3P4W
Catalog Description: Surge protective device, Surgelogic, HWC, 300kA, 480Y/277V, 3 phase, 4 wire, SPD type 2, NEMA 4X, 10 Mode
HWC43 Item Features
- Quality surge mitigation
- Has 300kA per phase rating
- Compact enclosure minimizes space with high performance
- Mutiple voltage configurations to match panels
- Installed adjancet to panel
HWC43 Standards
UL 1449:ed. 5|CSA C22.2 No 269.1|UL 96A|NEMA 4XSKU #2461439Part Number #HWC43UNSPSC39121634UPC00047569001048

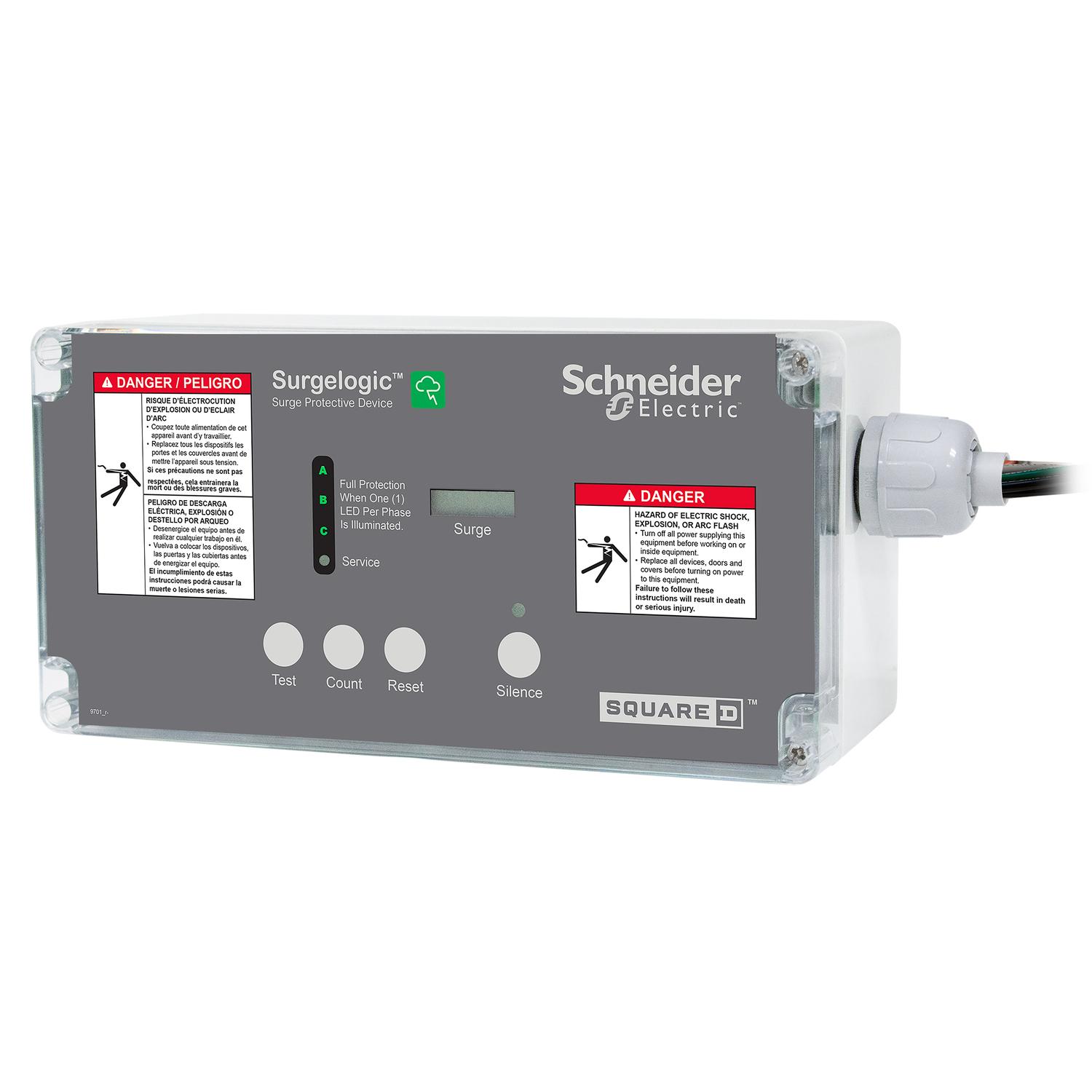

Image provided may only be a representation of final product and may include optional equipment
