1277560000
Weidmuller 1277560000
Part Number # 1277560000
SKU # 2461743
$717.63 / 48Each
Typical price:$826.13 / Each
Weidmuller 1277560000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1277560000 |
| SKU #: | 2461743 |
| Dimensions: | 15.2 mm H x 38.5 mm W x 26.25 mm D |
| Number of Positions: | 22 |
| Series: | B2C/S2C 3.50 |
| Wire Size: | 30 to 16 AWG |
| UNSPSC: | 31163101 |
| UPC: | 04050118067873 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$717.63 / 48Each
Typical price:$826.13 / Each
Quantity:
- Weidmueller, 1277560000, Terminal Connector, Plug-In, Series: B2C/S2C 3.50, 22 Positions, 1 Rows, 3.5 mm Pitch/Row Spacing, PCB Mounting, 30 to 16 AWG Wire, 50/300 V DC, Female Plug Connector, 1.5 sq-mm Connector, Tension Clamp Termination, Copper Alloy Contact, PA 66 GF 30 Housing Material, -50 to 120 deg C, Black, 15.2 mm H x 38.5 mm W x 26.25 mm D Dimensions
1277560000 Item Features
- Simply insert the prepared wire - and youre done
- Intuitive to use because
- The wire-entry area and handling area are clearly separated
- Integrated push-buttons for opening the terminal point
- High component density because of low heights
- Optional locking and releasing require no tools when using Weidmullers release latch (LR) or release lever (LH)
1277560000 Standards
RoHS Compliant|CSA Certified|cURus Listed|EAC CertifiedSKU #2461743Part Number #1277560000UNSPSC31163101UPC04050118067873

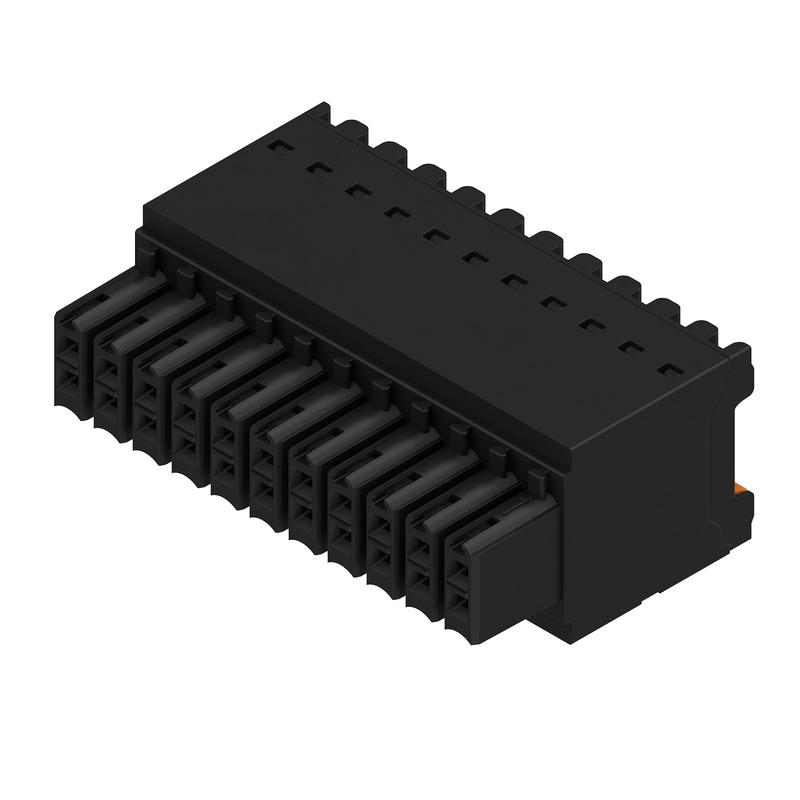

Image provided may only be a representation of final product and may include optional equipment
