Part Number # IMB43
SKU # 2462020
IMB43

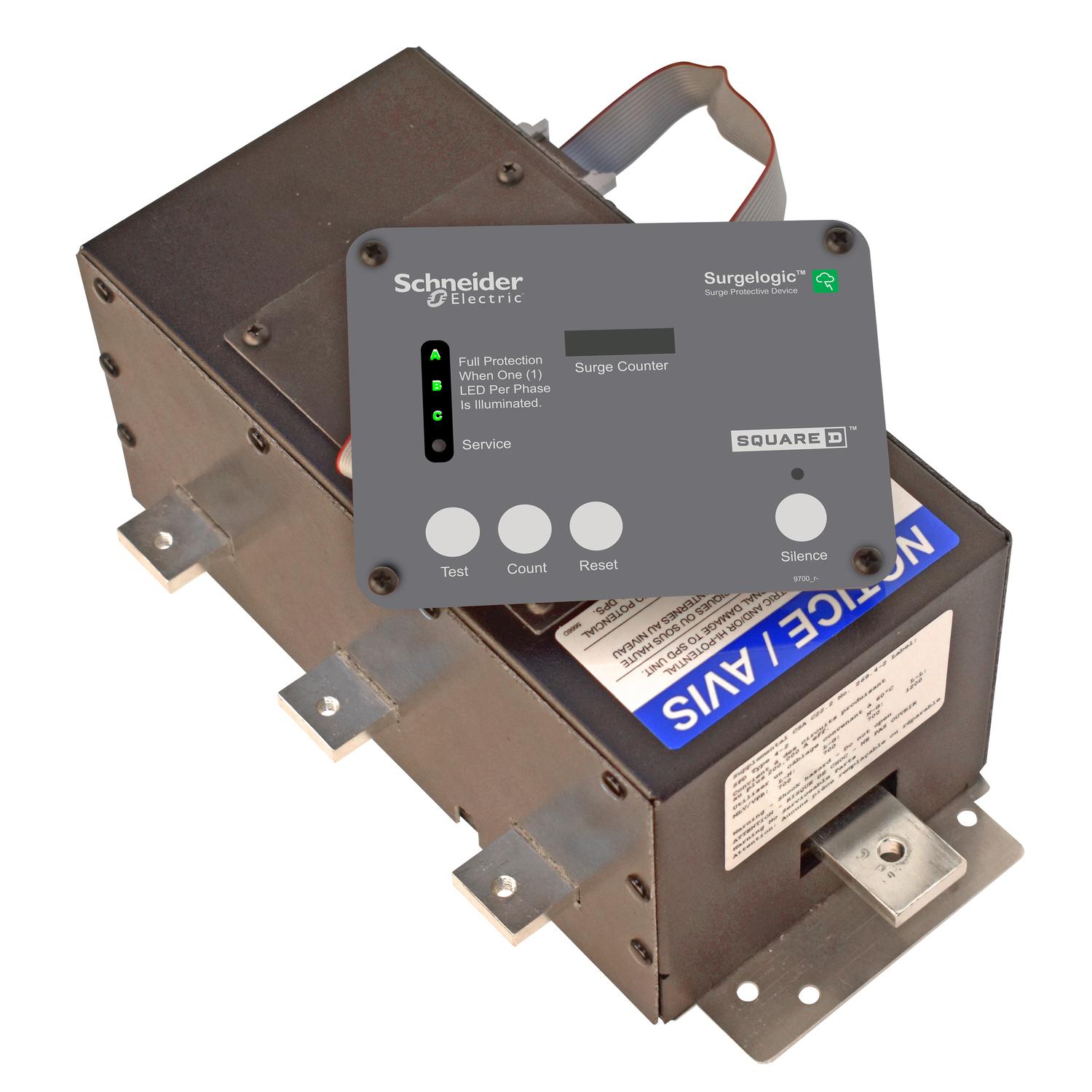

Square D IMB43
Part Number # IMB43
SKU # 2462020
$4436.62 / Each
Typical price:$4500.00 / Each
Square D IMB43 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | IMB43 |
| SKU #: | 2462020 |
| Dimensions: | 6.5 in H x 11.8 in W x 4.5 in D |
| Electrical Ratings: | 480Y/277 V AC |
| Enclosure Type: | Open |
| Environmental Conditions: | -13 to 140 deg f operating temperature, -58 to 176 deg f storage temperature, 0 to 95% operating humidity |
| Frequency Rating: | 47 to 63 Hz |
| Number of Wires: | 4 |
| Peak Surge Current: | 300 kA |
| Phase: | 3 ph |
| Short Circuit Current Rating (kA): | 200 kA |
| Terminal Type: | Lug |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121634 |
| UPC: | 00047569001222 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4436.62 / Each
Typical price:$4500.00 / Each
Quantity:
- Square D, IMB43, Surge Protection Module, 480Y/277 V AC Electrical Rating, 47 to 63 Hz Frequency, 4 Wires, 200 kA Short Circuit, 300 kA Peak Surge Current, 20 kA Nominal Discharge, 3 ph, Environmental Conditions: -13 to 140 deg f operating temperature, -58 to 176 deg f storage temperature, 0 to 95% operating humidity, Open Enclosure, Lug Terminal, 6.5 in H x 11.8 in W x 4.5 in D Dimensions
IMB43 Item Features
- Quality surge mitigation
- Has 200kA, 300kA or 500kA per phase rating
- Mutiple voltage configurations to meet system needs
- Internally mounted in your desired panel to provide protection
IMB43 Standards
UL 1449:ed. 5|CSA C22.2 No 269.2|UL 1283SKU #2462020Part Number #IMB43UNSPSC39121634UPC00047569001222
Image provided may only be a representation of final product and may include optional equipment
