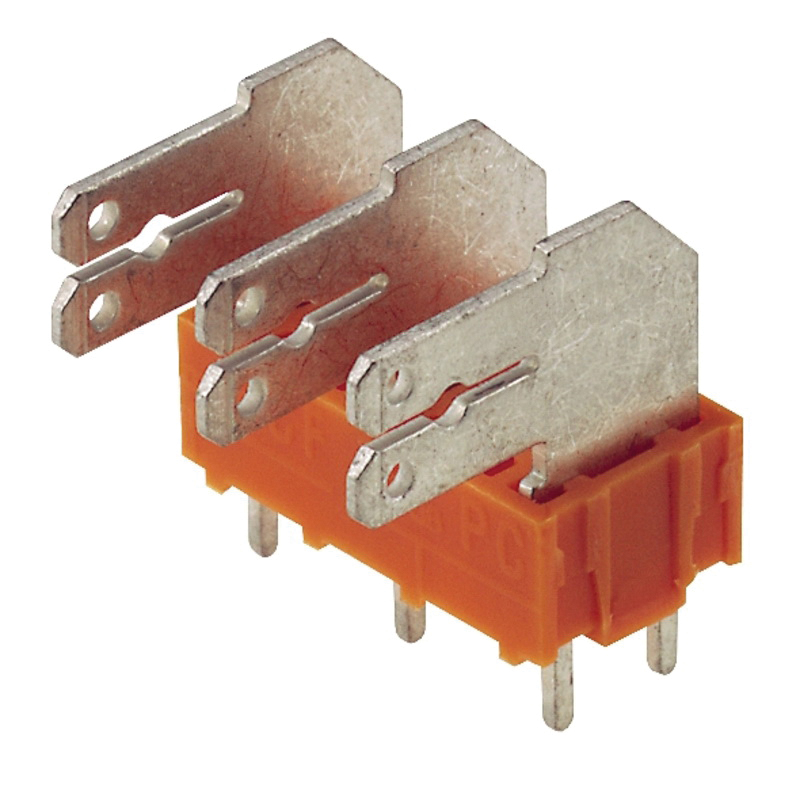

Weidmuller OMNIMATE Signal 9511590000 PCB Terminal Block, 300/1000 V, 15/24 A, 2 Poles, Through-Hole Mount
Part Number # 9511590000
SKU # 2462134
9511590000
Weidmuller OMNIMATE Signal 9511590000 PCB Terminal Block, 300/1000 V, 15/24 A, 2 Poles, Through-Hole Mount
Part Number # 9511590000
SKU # 2462134
$78.31
Typical price:$90.20 /
9511590000 Key Features
| Part Number # : | 9511590000 |
|---|---|
| SKU #: | 2462134 |
| Amperage Rating: | 15/24 A |
| Dimensions: | 18.4 mm H x 12.3 mm W x 9.8 mm D |
| Number of Poles: | 2 |
| Spacing: | 7.5 mm |
| Temperature Rating (Degrees F): | -50 to 100 deg C |
| Terminal Type: | THT Solder |
| Connection type: | Flat Blade |
| Country of origin: | DE |
| Material: | Polyamide |
| Mounting type: | Through-Hole |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121409 |
| UPC: | 4008190557744 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$78.31
Typical price:$90.20 /
Quantity:
- Weidmuller OMNIMATE Signal PCB Terminal Block, 300/1000 V, 15/24 A, 2 Pole, THT Solder Terminal, 7.5 mm Spacing, Through-Hole Mounting, Flat Blade Connection, -50 to 100 deg C, Polyamide, Orange, 18.4 mm H x 12.3 mm W x 9.8 mm D Dimensions
9511590000 Application
Hand Soldering Applications9511590000 Item Features
- Flat blade connection in 90, 135 and 180 deg conductor outlet direction for 6.3 and 2.8 mm spade connector at 7.5 mm pitch
9511590000 Standards
RoHS Compliant|CSA File No. 12400-282|UL 1059|IEC 60664-1|IEC 61984|UL 94 V-2 Flammability RatingSKU #2462134Part Number #9511590000UNSPSC39121409UPC4008190557744
Image provided may only be a representation of final product and may include optional equipment
