Part Number # MPDB67410
SKU # 2462138
MPDB67410

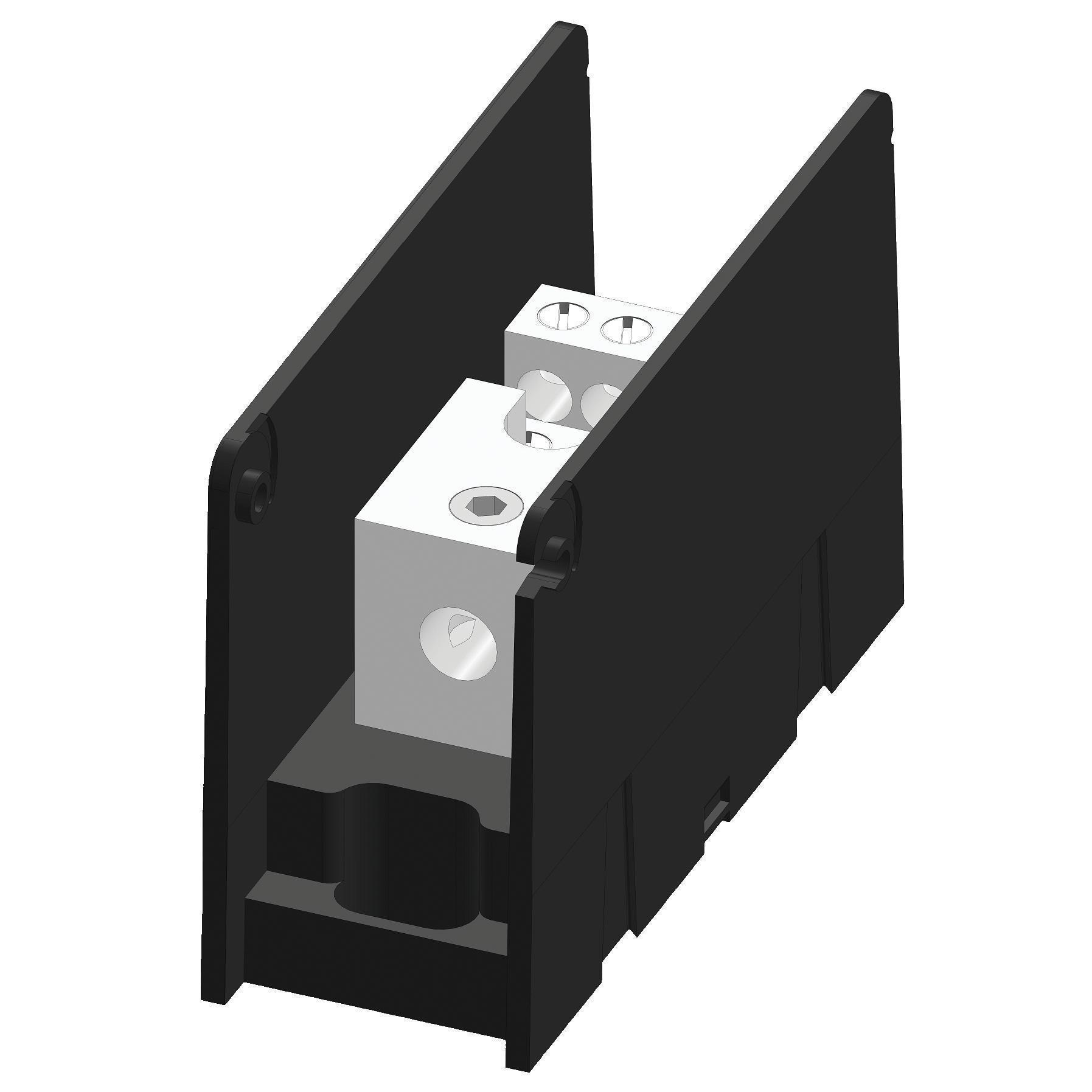

Mersen MPDB67410 Adder Intermediate Open Style Power Distribution Block, 600 V AC, 380 A, 4 AWG to 500 kcmil Wire, Polycarbonate
Part Number # MPDB67410
SKU # 2462138
$540.84
Typical price:$1246.11 /
MPDB67410 Key Features
| Part Number # : | MPDB67410 |
|---|---|
| SKU #: | 2462138 |
| Dimensions: | 1.72 in W x 5 in D x 3.25 in H |
| Series: | MPDB |
| Type: | Adder Intermediate Open Style |
| UNSPSC: | 39121453 |
| UPC: | 782001451691 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$540.84
Typical price:$1246.11 /
Quantity:
- Mersen Power Distribution Block, Adder Intermediate Open Style, Series: MPDB, 600 V AC, 380 A, 1 Primary Connections/Pole, 4 Secondary Connection/Pole, 4 AWG to 500 kcmil Wire, 100 kA Short Circuit, Polycarbonate, Black, 1.72 in W x 5 in D x 3.25 in H Dimensions
MPDB67410 Application
Cable Splicing, Splitting Primary Power into Secondary Circuits, Fixed Junction and Tap-Off Point ApplicationsMPDB67410 Item Features
- Aluminum connectors accept both aluminum or copper wire while copper connectors accept copper wire only and all 1-piece tin plated
- Connectors are all 1-piece tin-plated
- Insulators are virtually unbreakable, made of glass-filled polycarbonate
- See-through, hinged safety covers provide a greater degree of safety and shock resistance where required
- Hinged covers can be installed without tools
- 1 in through air and 2 in over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL508A
- Polycarbonate safety covers provide dead-front protection
- One cover is needed for each pole
- Each cover has a test probe hole in the center for circuit checking
- Adder poles for increased flexibility and ease-of-use
- Adder poles can be stacked to form multi-pole units in the field without the use of tools
- Adder poles allow for customization of primary and secondary wire combinations
- 4 AWG to 500 kcmil Al line, 14 to 2/0 AWG Al load
MPDB67410 Standards
RoHS Compliant|UL File No. E352417|CSA Class 6228-01, File No. 069363_0_000|CE Marked|UL94-V0 FlammabilitySKU #2462138Part Number #MPDB67410UNSPSC39121453UPC782001451691
Image provided may only be a representation of final product and may include optional equipment
