Part Number # HPD100
SKU # 2463163
HPD100
Hubbell HPD100
Part Number # HPD100
SKU # 2463163
$522.86 / Each
Typical price:$798.00 / Each
Hubbell HPD100 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HPD100 |
| SKU #: | 2463163 |
| Actuator Type: | Rotary Handle |
| Amperage Rating: | 100 A |
| Dimensions: | 7.75 in W |
| Enclosure Type: | NEMA 4/12 |
| Frequency Rating: | 60 Hz |
| Number of Poles: | 3 |
| Phase: | 3 ph |
| Series: | Pro |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | Standard Duty |
| Country of origin: | PL |
| Material: | PBT |
| Mounting type: | External Mounting Feet |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 0 |
| UPC: | 00783585789101 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$522.86 / Each
Typical price:$798.00 / Each
Quantity:

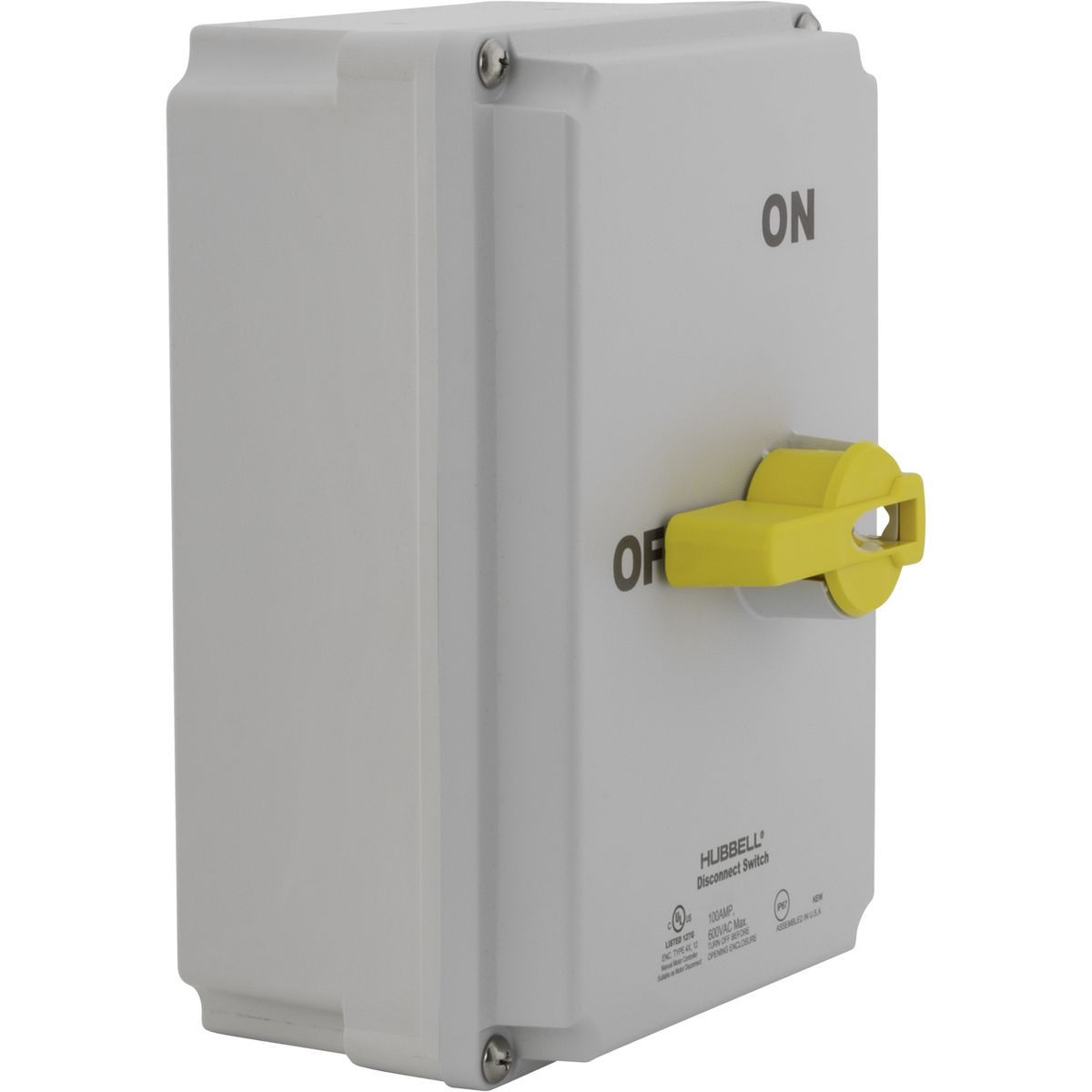

- Hubbell Wiring Device-Kellems, HPD100, Motor Disconnect Switch, Standard Duty, Series: PRO, 600 V AC, 100 A, 3 ph, 60 Hz Frequency, 3 Pole, Rotary Handle Actuator, NEMA 4/12 Enclosure, External Mounting Feet, Screw Terminal, -40 to 75 deg C, 7.75 in W Dimensions, PBT
HPD100 Application
For LabellessHPD100 Item Features
- Highly visible yellow LO/TO Handle
- Stainless steel captive screws
- Non-Fused
- Accepts up to 2 Auxiliary contacts
HPD100 Standards
cULus Certified|CE Certified|NEMA 4|UL 508|IP67|NEMA 4X|OSHA|UL 60947-4-1SKU #2463163Part Number #HPD100UNSPSC0UPC00783585789101
Image provided may only be a representation of final product and may include optional equipment
