Part Number # IG5252W
SKU # 2463246
IG5252W

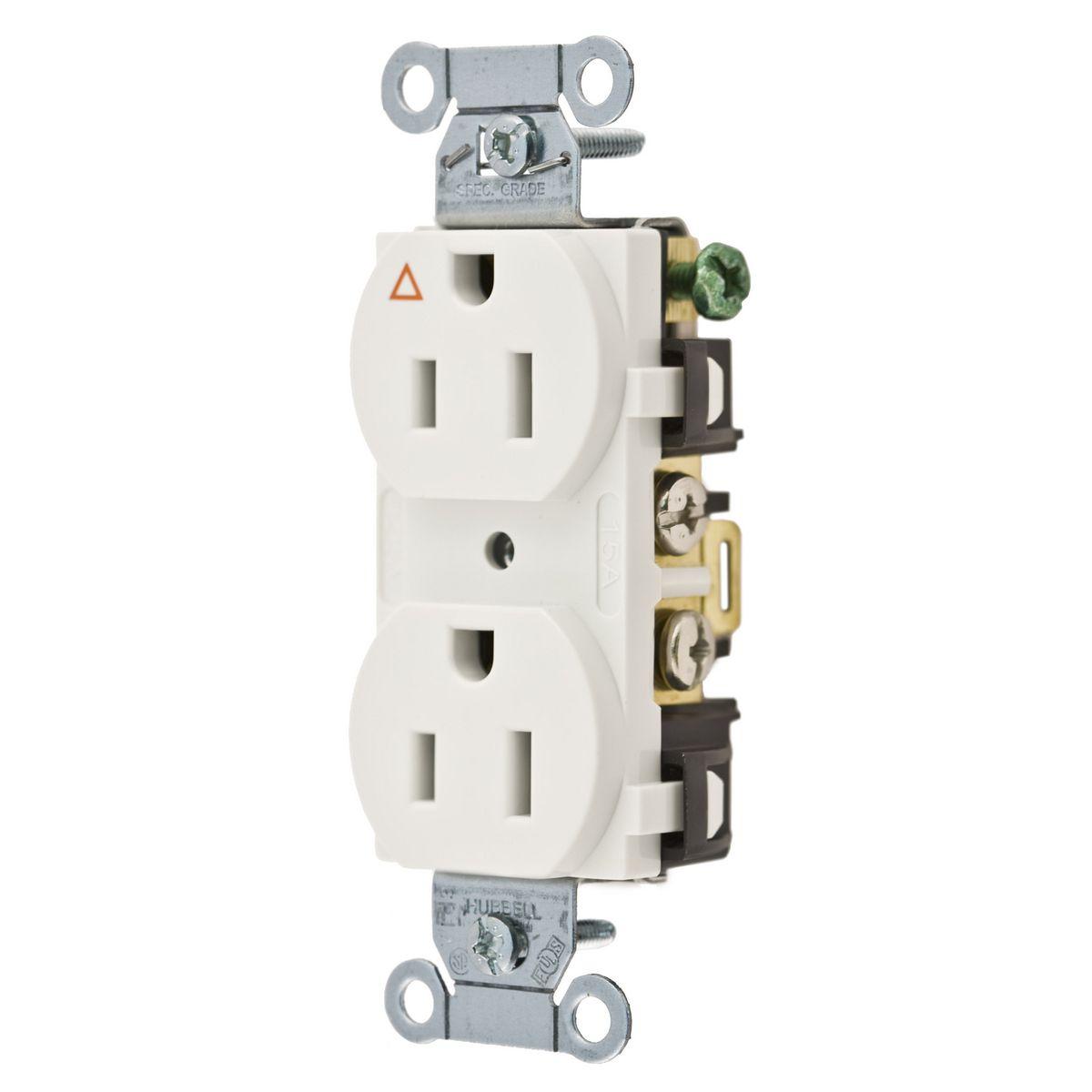

Hubbell Wiring Device-Kellems Hubbell-PRO SpikeShield IG5252W 1-Phase Duplex Grounding Heavy Duty Isolated Ground Standard Traditional Screw Mount Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, White
Part Number # IG5252W
SKU # 2463246
$128.60
Typical price:$166.50 /
IG5252W Key Features
| Part Number # : | IG5252W |
|---|---|
| SKU #: | 2463246 |
| Amperage Rating: | 15 A |
| Dimensions: | 3.28 x 1.57 x 1.07 in |
| Horsepower: | 1/2 hp |
| NEMA Rating: | 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Back and Side Wire/Screw |
| Type: | 1-Phase Duplex Grounding Heavy Duty Isolated Ground Standard Traditional Screw Mount |
| Country of origin: | CN |
| Material: | Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 783585146713 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$128.60
Typical price:$166.50 /
Quantity:
- Hubbell Wiring Device-Kellems Hubbell-PRO SpikeShield, IG5252W, Straight Blade Receptacle, 1-Phase Duplex Grounding Heavy Duty Isolated Ground Standard Traditional Screw Mount, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Industrial Grade, -40 to 75 deg C, Back and Side Wire/Screw Terminal, Nylon, White, 3.28 x 1.57 x 1.07 in Dimensions
IG5252W Application
Dry Indoor ApplicationsIG5252W Item Features
- Slender/compact design
- Smooth Face
- Triangle marking on face indicates isolated ground
IG5252W Standards
NEMA WD1/WD5|CSA Certified|RoHS Compliant|UL 498 File No. E2186|CSA C22.2 No. 42|Federal Specification WC596SKU #2463246Part Number #IG5252WUNSPSC39121406UPC783585146713
Image provided may only be a representation of final product and may include optional equipment
