Part Number # HBL8215CST
SKU # 2463276
HBL8215CST

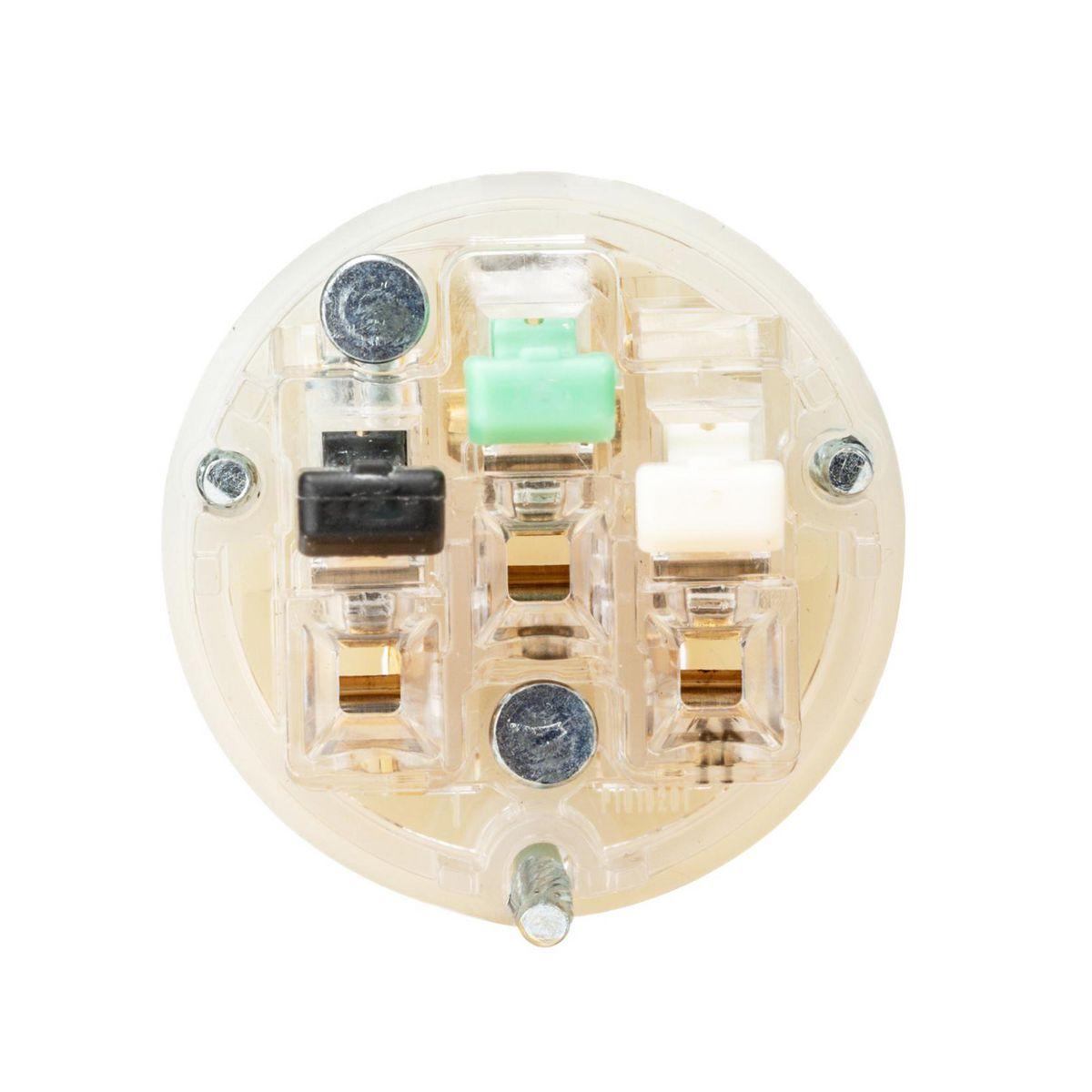

Hubbell Wiring Device-Kellems HBL8215CST EdgeConnect Straight Blade Device, 125 V, 15 A, 2 Poles, 3 Wires, Black/White
Part Number # HBL8215CST
SKU # 2463276
$11.86
Typical price:$35.85 /
HBL8215CST Key Features
| Part Number # : | HBL8215CST |
|---|---|
| SKU #: | 2463276 |
| Amperage Rating: | 15 A |
| Dimensions: | 1.09 in H x 1.41 in W x 3.28 in D |
| Horsepower: | 0.5 hp |
| NEMA Rating: | NEMA 5-15P |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Series: | EdgeConnect |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Spring |
| Country of origin: | CN |
| Material: | Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121402 |
| UPC: | 783585964874 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$11.86
Typical price:$35.85 /
Quantity:
- Hubbell Wiring Device-Kellems, HBL8215CST, Straight Blade Device, Series: EdgeConnect, 125 V, 15 A, 0.5 hp, 2 Pole, 3 Wires, NEMA 5-15P NEMA Rating, Hospital Grade, -40 to 75 deg C, Spring Terminal, Nylon, Black/White, 1.09 in H x 1.41 in W x 3.28 in D Dimensions
HBL8215CST Application
For Hospital GradeHBL8215CST Item Features
- Spring termination for a faster and more secure terminal connection
- Superior cord grip design protects terminations from excess strain
- Accepts 14 - 10AWG, solid or stranded
- Ribbed housing is impact and chemical resistant
HBL8215CST Standards
RoHS Compliant|NEMA WD-6 Compliant|CSA Certified to C22.2 No. 42 File 280|Fed. Spec. W-C596G|NEMA 5-15PSKU #2463276Part Number #HBL8215CSTUNSPSC39121402UPC783585964874
Image provided may only be a representation of final product and may include optional equipment
