Part Number # BR20STI
SKU # 2463277
BR20STI

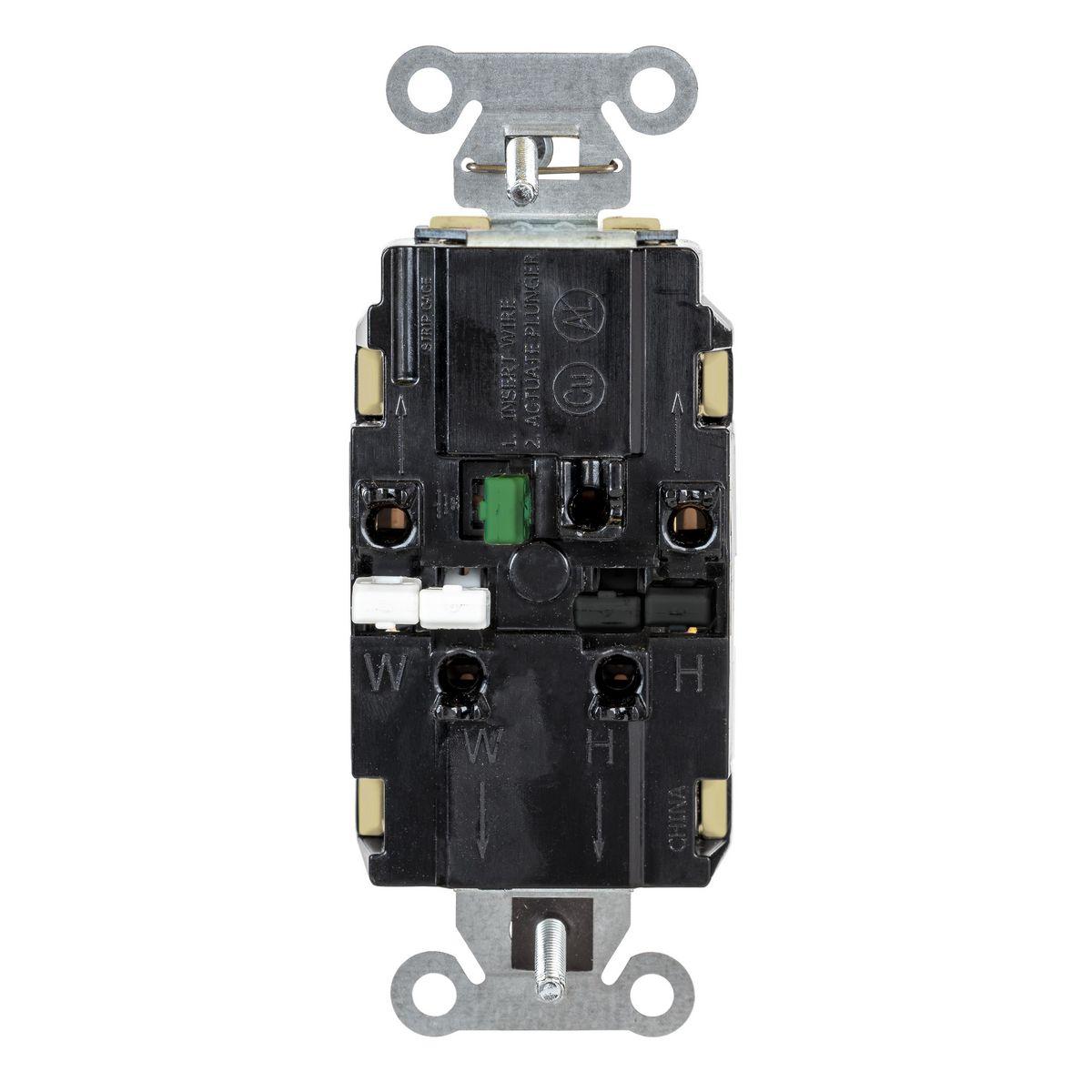

Hubbell Wiring Device-Kellems BR20STI EdgeConnect Straight Blade Receptacle, 125 V, 20 A, 2 Poles, 3 Wires, Ivory
Part Number # BR20STI
SKU # 2463277
$72.10
Typical price:$93.50 /
BR20STI Key Features
| Part Number # : | BR20STI |
|---|---|
| SKU #: | 2463277 |
| Amperage Rating: | 20 A |
| NEMA Rating: | 5-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Series: | EdgeConnect |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Screwless |
| Type: | Straight Blade |
| Country of origin: | CN |
| Material: | Thermoplastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$72.10
Typical price:$93.50 /
Quantity:
- Hubbell Wiring Device-Kellems, BR20STI, Receptacle, Straight Blade, Series: EdgeConnect, 125 V, 20 A, 2 Pole, 3 Wires, 5-20R NEMA Rating, Commercial Grade, -40 to 75 deg C, Screwless Terminal, Thermoplastic, Ivory
BR20STI Application
For Commercial Specification Grade applicationBR20STI Item Features
- Back wired srewless termination for faster termination time
- No need for screwdriver and torque wrench
- Spring Termination eliminates strand relaxation
- Triple and Double Wipe Contacts
- Easy access split circuit tab
BR20STI Standards
UL Listed to UL498 File No. E2186 Certified to CSA 22.2|No. 42 File 285 NEMA WD-6 CompliantSKU #2463277Part Number #BR20STIUNSPSC39121406UPC
Image provided may only be a representation of final product and may include optional equipment
