Part Number # BR20STBKM1
SKU # 2463280
BR20STBKM1
Hubbell BR20STBKM1
Part Number # BR20STBKM1
SKU # 2463280
$82.10 / 10Each
Typical price:$106.50 / Each
Hubbell BR20STBKM1 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | BR20STBKM1 |
| SKU #: | 2463280 |
| Amperage Rating: | 20 A |
| NEMA Rating: | NEMA 5-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Series: | EdgeConnect |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Back Wired |
| Type: | Duplex |
| Country of origin: | CN |
| Material: | Composite/Thermoplastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 0 |
| UPC: | 00783585799865 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$82.10 / 10Each
Typical price:$106.50 / Each
Quantity:
- Hubbell Wiring Device-Kellems, BR20STBKM1, Receptacle, Duplex, Series: EdgeConnect, 125 V, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, -40 to 75 deg C, Back Wired Terminal, Composite/Thermoplastic, White
BR20STBKM1 Application
For Spring clamp terminal strengthens over time providing a more reliable connectionBR20STBKM1 Item Features
- Back wired screwless termination for faster termination time
- No need for screwdriver and torque wrench
- Spring Termination eliminates strand relaxation
- Simple color coded plungers for easy and quick wiring
- Use small screwdriver to lift plunger and rewire as needed
- https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6372183282112, https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6372184452112
BR20STBKM1 Standards
UL Listed to UL498 File No. E2186|c-UL-us No. 42 File 285|Fed. Spec. W-C-596|NEMA WD-6 Compliant|NEMA 5-20RSKU #2463280Part Number #BR20STBKM1UNSPSC0UPC00783585799865

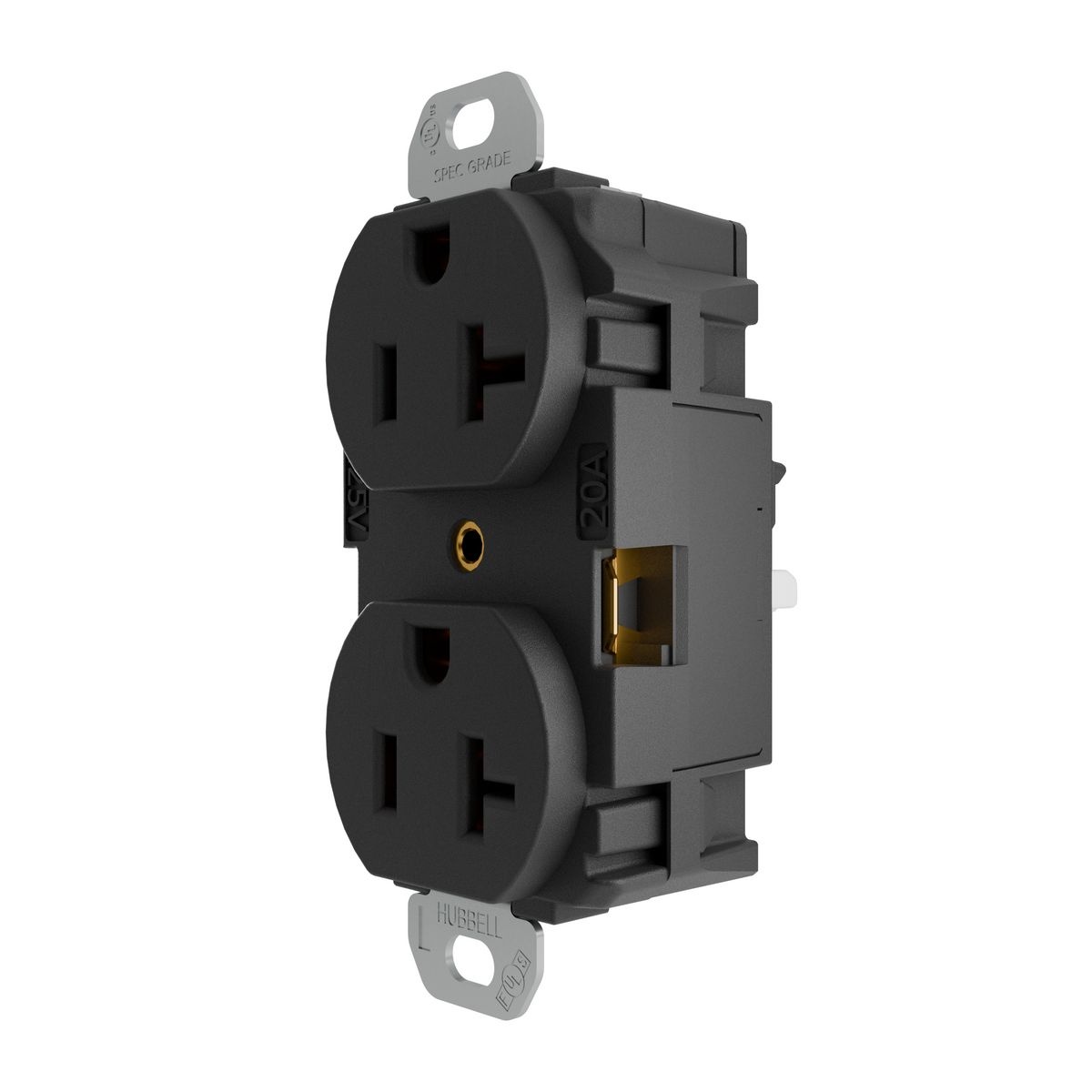

Image provided may only be a representation of final product and may include optional equipment
