Part Number # L530P
SKU # 2463281
L530P

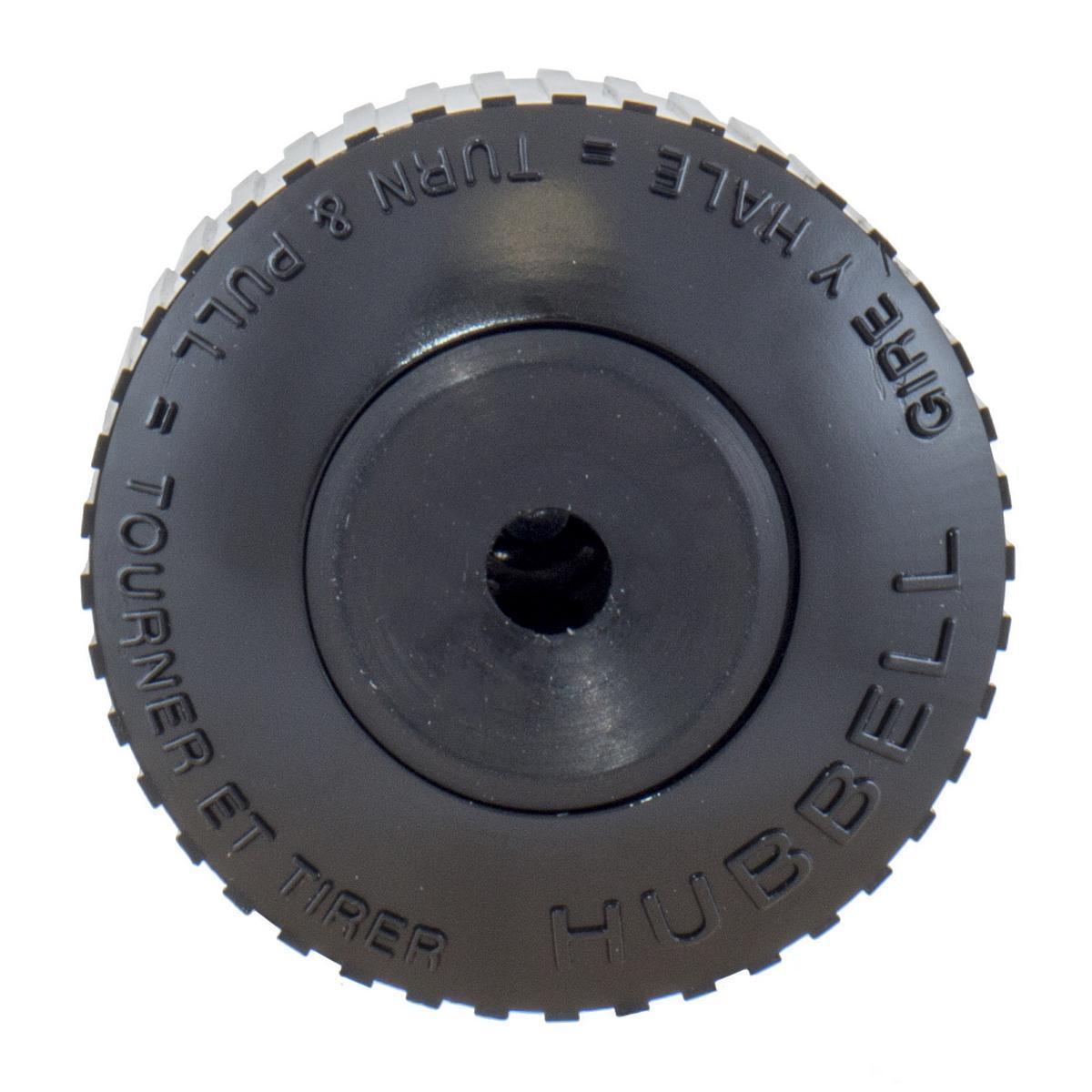

Hubbell Wiring Device-Kellems Twist-Lock L530P 1-Phase Grounding Standard Sized Cord Mount Locking Male Plug, 125 V AC, 30 A, 2 Poles, 3 Wires, Black
Part Number # L530P
SKU # 2463281
$47.00
Typical price:$60.70 /
L530P Key Features
| Part Number # : | L530P |
|---|---|
| SKU #: | 2463281 |
| Type: | 1-Phase Grounding Standard Sized Cord Mount |
| UNSPSC: | 39121403 |
| UPC: | 783585835952 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$47.00
Typical price:$60.70 /
Quantity:
- Hubbell Wiring Device-Kellems Twist-Lock Locking Male Plug, 1-Phase Grounding Standard Sized Cord Mount, 125 V AC, 30 A, 2 Pole, 3 Wires, L5-30P NEMA Rating, Commercial/Industrial Grade, -40 to 60 deg C, Screw Terminal, Composite, Black
L530P Application
For power connection applicationsL530P Item Features
- Visible NEMA ratings
- Captive assembly screws
- Supertough nylon body
- Impact modified nylon blade/contact holder
- Brass contacts/blade
- Withstands 3500 VAC per UL 498 dielectric voltage
- 600 VAC or 250 VDC maximum working voltage
- Maximum 30 deg C temperature rise at full rated current after 50 cycles overload at 150% rated current for either AC or DC applications per UL 498
- Minimum 4.8 times rated current for 100 cycles overload
- Terminals identified in accordance with UL 498 (brass, white, green)
- 18 to 8 AWG flexible cord
- Ratings and NEMA identification are permanently marked on device
- Indoor dry unless protected by additional means
- 10 to 8 AWG wire
L530P Standards
CSA Certified|RoHS Compliant|UL ListedSKU #2463281Part Number #L530PUNSPSC39121403UPC783585835952
Image provided may only be a representation of final product and may include optional equipment
