Part Number # HWC53
SKU # 2463554
HWC53
Schneider Electric HWC53
Part Number # HWC53
SKU # 2463554
$3102.24 / Each
Typical price:$8950.00 / Each
Schneider Electric HWC53 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | HWC53 |
| SKU #: | 2463554 |
| Dimensions: | 4.9 in H x 9.6 in W x 4.02 in D |
| Electrical Ratings: | 480 V AC |
| Enclosure Type: | NEMA 4X |
| Environmental Conditions: | -31 to 185 deg f operating temperature, -40 to 149 deg f storage temperature, 0 to 95% operating humidity |
| Frequency Rating: | 47 to 63 Hz |
| Number of Wires: | 3 |
| Peak Surge Current: | 300 kA |
| Phase: | 3 ph |
| Short Circuit Current Rating (kA): | 200 kA |
| Terminal Type: | 10 AWG Wire |
| Mounting type: | Surface/Flush |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121634 |
| UPC: | 00047569001055 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3102.24 / Each
Typical price:$8950.00 / Each
Quantity:
- Square D, HWC53, Surge Protection Module, 480 V AC Electrical Rating, 47 to 63 Hz Frequency, 3 Wires, 200 kA Short Circuit, 300 kA Peak Surge Current, 20 kA Nominal Discharge, 3 ph, Environmental Conditions: -31 to 185 deg f operating temperature, -40 to 149 deg f storage temperature, 0 to 95% operating humidity, NEMA 4X Enclosure, Surface/Flush Mounting, 10 AWG Wire Terminal, 4.9 in H x 9.6 in W x 4.02 in D Dimensions
HWC53 Item Features
- Quality surge mitigation
- Has 300kA per phase rating
- Compact enclosure minimizes space with high performance
- Mutiple voltage configurations to match panels
- Installed adjancet to panel
HWC53 Standards
UL 1449:ed. 5|CSA C22.2 No 269.1|UL 96A|NEMA 4XSKU #2463554Part Number #HWC53UNSPSC39121634UPC00047569001055

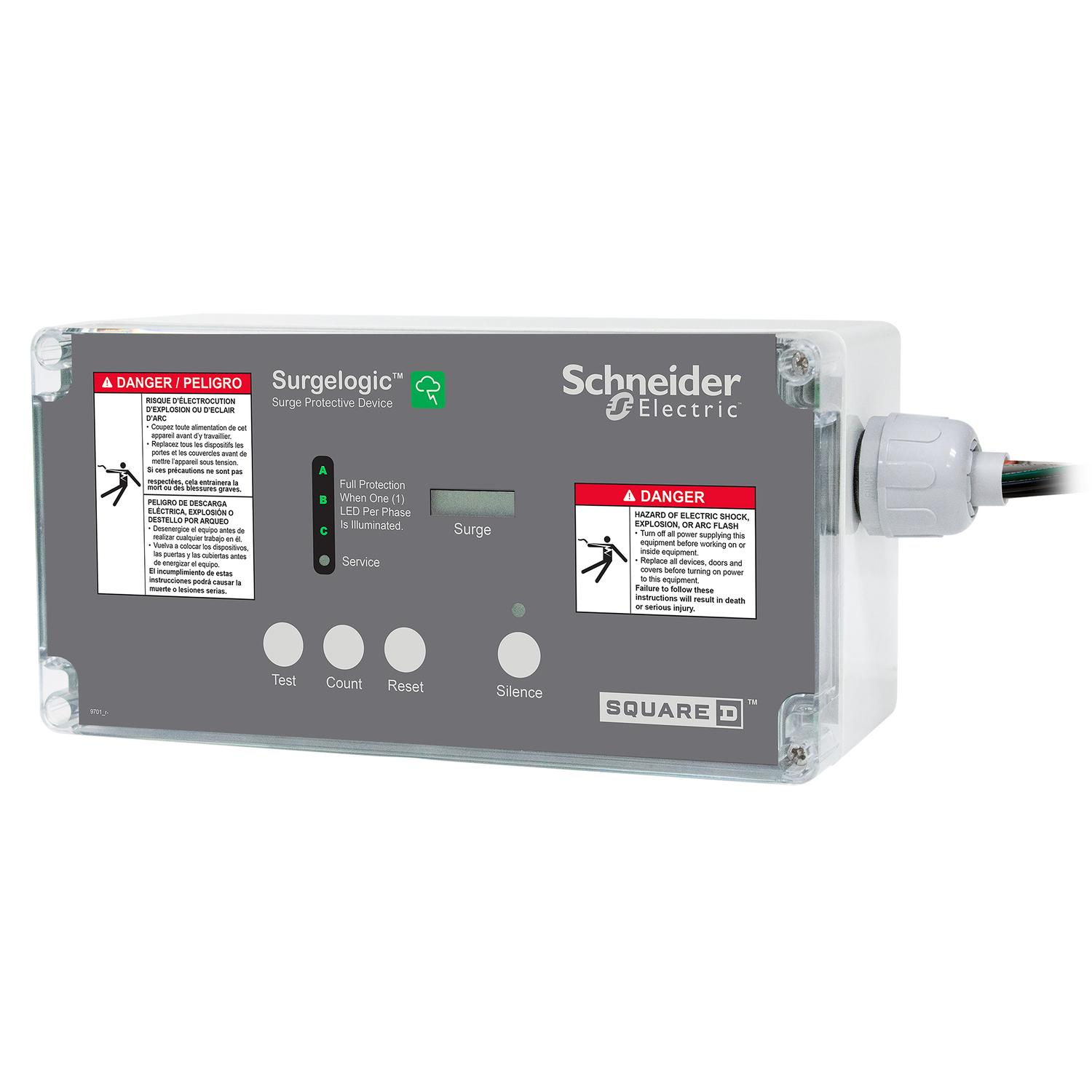

Image provided may only be a representation of final product and may include optional equipment
