Part Number # CCP2R-2-30CF
SKU # 2463787
CCP2R-2-30CF
Bussmann CCP2R-2-30CF
Part Number # CCP2R-2-30CF
SKU # 2463787
$362.94 / Each
Typical price:$672.75 / Each
Bussmann CCP2R-2-30CF Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | CCP2R-2-30CF |
| SKU #: | 2463787 |
| Operator: | Right Front Rotary/Clockwise Operated Switch |
| Series: | CCP |
| Type: | Compact Fused Finger Safe Lock-On provision |
| Height: | 8.1 in |
| UNSPSC: | 39122233 |
| UPC: | 00051712709842 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$362.94 / Each
Typical price:$672.75 / Each
Quantity:
- EATON Circuit Protector Disconnect Switch, Compact Fused Finger Safe Lock-On provision, Series: CCP, 600 V AC/125 V DC, 225 A, 2 Pole, 35 mm DIN Rail Mounting, Right Front Rotary/Clockwise Operated Switch Operator, -4 to 167 deg F Operating, 3 in Width, 8.1 in Height
CCP2R-2-30CF Application
Electrical Assemblies, Panels and EOEMsCCP2R-2-30CF Item Features
- Uses UL class CF time delay or fast acting CUBEFuse with class J electrical performance
- Extremely compact design at 25.4 mm wide per pole
- Amp rating rejection disconnects will not accept a CUBEFuse amp rating greater than switch rating
- Disconnect rated to provide a means for load isolation
- UL 98 listed and suitable for branch circuit disconnect and branch circuit protection with installed fuses
- Open fuse indication - local open fuse indication light standard on each pole
- Additional open fuse indication can be provided by the indicating time delay CUBEFuse (6 to 100 A)
- Finger-safe construction with 10 AWG wire or larger
- Built-in switch interlock prohibits removing or installing the fuse while in the ON position
- Padlockable for lockout/tagout procedures with a 1/4 in lock
- 200 kA AC, 100 kA DC short circuit current rating
CCP2R-2-30CF Standards
UL 98 File No. E302370, Guide WHTY|cULus to Canadian Standard 22.2 No. 4-04 File No. E302370, Guide WHTY7|CE Certified|CCC CertifiedSKU #2463787Part Number #CCP2R-2-30CFUNSPSC39122233UPC00051712709842

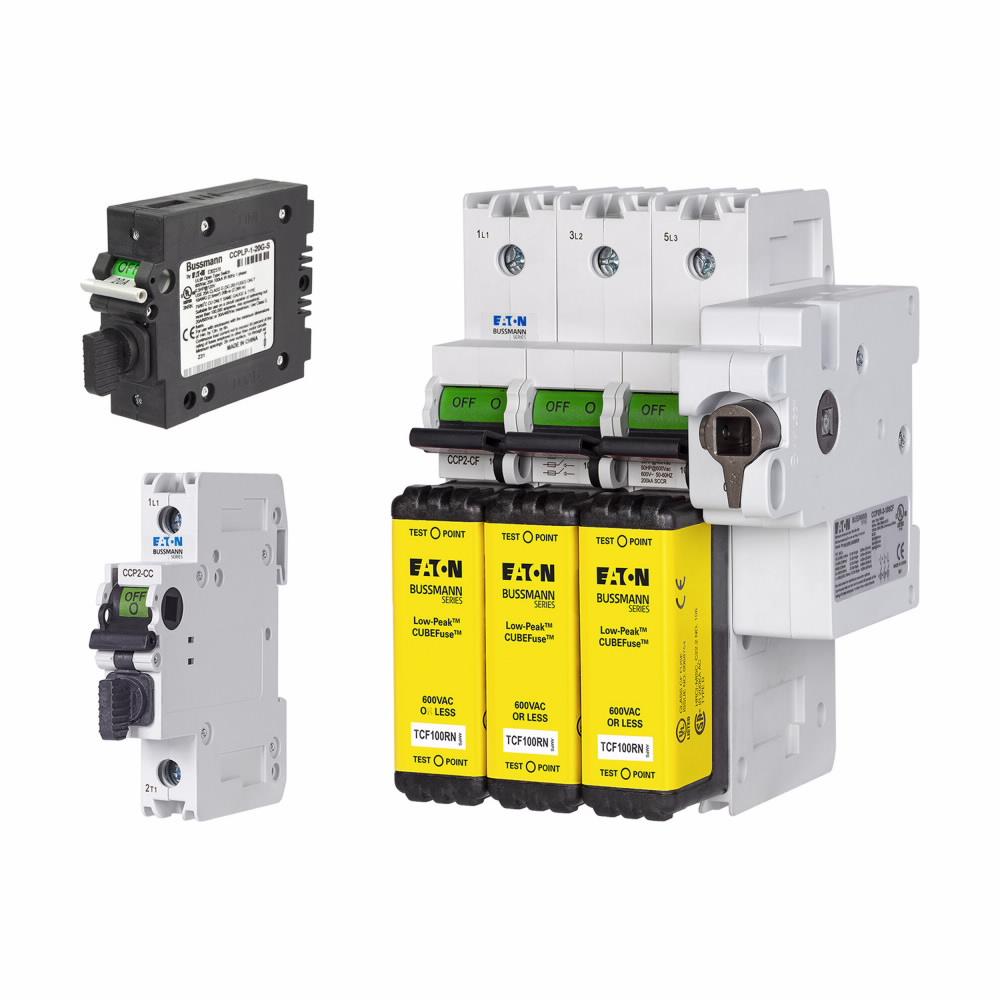

Image provided may only be a representation of final product and may include optional equipment
