Part Number # 1FT71085SC701BA0
SKU # 2463843
1FT71085SC701BA0
Siemens SIMOTICS S 1FT71085SC701BA0 Compact Forced Ventilation Servo Motor, 20-1/2 hp, 33 A, 2000 rpm Speed, IM B5/IM V1/IM V3 Mount
Part Number # 1FT71085SC701BA0
SKU # 2463843
$11705.67
Typical price:$15757.63 /
1FT71085SC701BA0 Key Features
| Part Number # : | 1FT71085SC701BA0 |
|---|---|
| SKU #: | 2463843 |
| Amperage Rating: | 33 A |
| Dimensions: | 196 mm W |
| Horsepower: | 20-1/2 hp |
| Torque Rating: | 73 N-m |
| Type: | Compact Forced Ventilation |
| UNSPSC: | 26101109 |
| UPC: | 887621543457 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$11705.67
Typical price:$15757.63 /
Quantity:
- Siemens SIMOTICS S Servo Motor, Compact Forced Ventilation, Series: 1FT7, Permanent Magnet Synchronous Special Features, 20-1/2 hp, 33 A, 2000 rpm Speed, IP64 Enclosure, 38 mm Dia x 100 mm H Shaft, 73 N-m Torque, IM B5/IM V1/IM V3 Mounting, 104 deg F, Insulation Class: Class F, 196 mm W Dimensions
1FT71085SC701BA0 Application
High Performance Machine Tools Machines with High Demands Placed on the Dynamic Response, Precision and Flexibility Packaging Machines, High Bay Racking Vehicles, Conveyor Systems, Handling Equipment and Printing Machines1FT71085SC701BA0 Item Features
- With recessed flange, AS24DQI encoder RJ45 signal connection, DRIVE-CLiQ interface
- With feather key shaft extension, tolerance N shaft and flange accuracy, without holding brake
- Excellent dynamic performance in a wide speed range thanks to high overload capability 4xM0 with natural cooling
- Wide speed setting range
- Outstanding resistance to vibratory and shock loads thanks to vibration isolated encoder mounting
- High degree of protection allows operation even under demanding ambient conditions
- Quick and easy mounting due to cross profile (up to SH 100) and rotatable connectors with quick release locks
- Zero backlash holding brake
- Extremely high efficiency
- S-1FT7 compact motors have a low torque ripple so that they are ideal for use in machine tool applications that require extremely high surface quality and optimum machining results
- https://sie.ag/2MZJ9zz
1FT71085SC701BA0 Standards
cULus Recognized|WEEE 2012/19/EU|EN 60034-1/60034-7/60034-5/60034-14|DIN 748-3|DIN 42955|IEC 60034-1/60034-7/60034-5/60072-1/60072-1/60034-14SKU #2463843Part Number #1FT71085SC701BA0UNSPSC26101109UPC887621543457

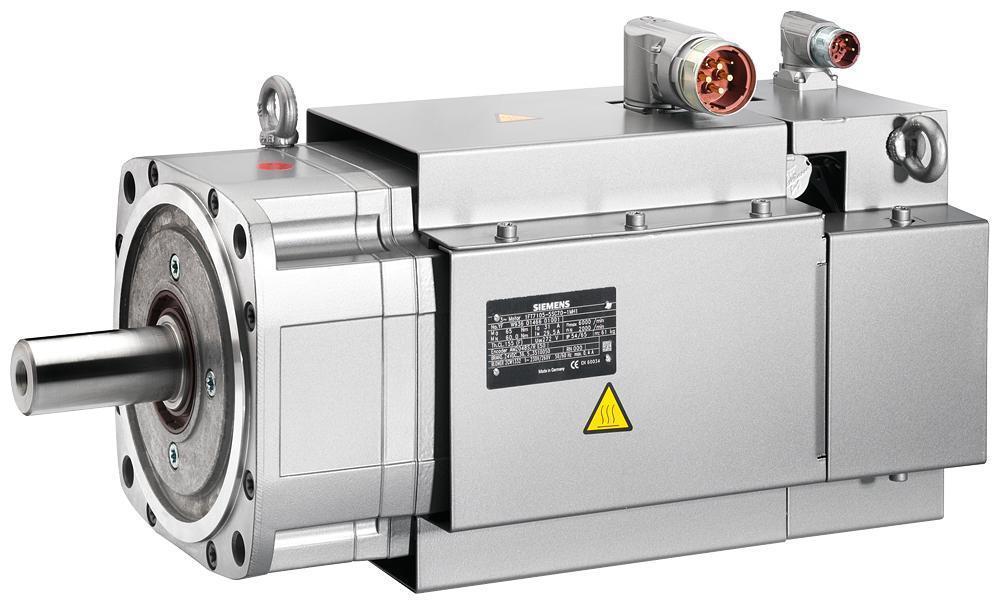

Image provided may only be a representation of final product and may include optional equipment
