ESR1XLDB0125X
Littelfuse ESR1XLDB0125X
Part Number # ESR1XLDB0125X
SKU # 2463957
$6720.72 / 12Each
Typical price:$8602.56 / Each
Littelfuse ESR1XLDB0125X Key Features
| Brand: | Littelfuse |
|---|---|
| Part Number # : | ESR1XLDB0125X |
| SKU #: | 2463957 |
| Amperage Rating: | 125 A |
| Body Type: | Square |
| Class: | aBat |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 175 kA |
| Series: | ESR Series |
| Terminal Type: | DIN 43 653 Blade |
| Type: | Battery |
| Country of origin: | MX |
| Material: | Ceramic Body, Copper Plated Contacts |
| Mounting type: | Blade |
| Manufacturer Name: | Littelfuse |
| UNSPSC: | 39121628 |
| UPC: | 00007945830630 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6720.72 / 12Each
Typical price:$8602.56 / Each
Quantity:
- Littelfuse, ESR1XLDB0125X, Protection Fuses, Battery, Series: ESR Series, Non-Indicating, 125 A, 1.5 kV DC, 175 kA Interrupt, Class: aBat, DIN 43 653 Blade Terminal, Blade Mounting, Square Body, Ceramic Body, Copper Plated Contacts, White, 2.03 in W x 2.03 in D x 7.86 in H Body
ESR1XLDB0125X Application
Battery energy storage systems (BESSs) - Battery Protection Unit (BPU) and battery racks, Power conversion systems, Dc common bus systems, Hybrid PV-BESS invertersESR1XLDB0125X Item Features
- High dc interrupting rating provides superior short-circuit protection and the ability to scale-up systems without the need to redesign the existing circuit protection, saving time and costs
- The low minimum breaking current offers easy coordination with battery modules and reduces size and rating of dc contactors to save space and costs
- Extremely fast acting delivers high-speed performance
- Low watt loss maximizes efficiency by preventing energy loss and minimizing the wasted power of components
- Conforming to the IEC60269-7 battery standard, the ESR series is specifically designed to safeguard evolving battery technologies with fuse circuit protection
- Compact NH 1XL size saves space and offers design flexibility
- https://players.brightcove.net/1799386164001/default_default/index.html?videoId=4814378601001
ESR1XLDB0125X Standards
cURus|CE|RoHS|REACH|UKCASKU #2463957Part Number #ESR1XLDB0125XUNSPSC39121628UPC00007945830630

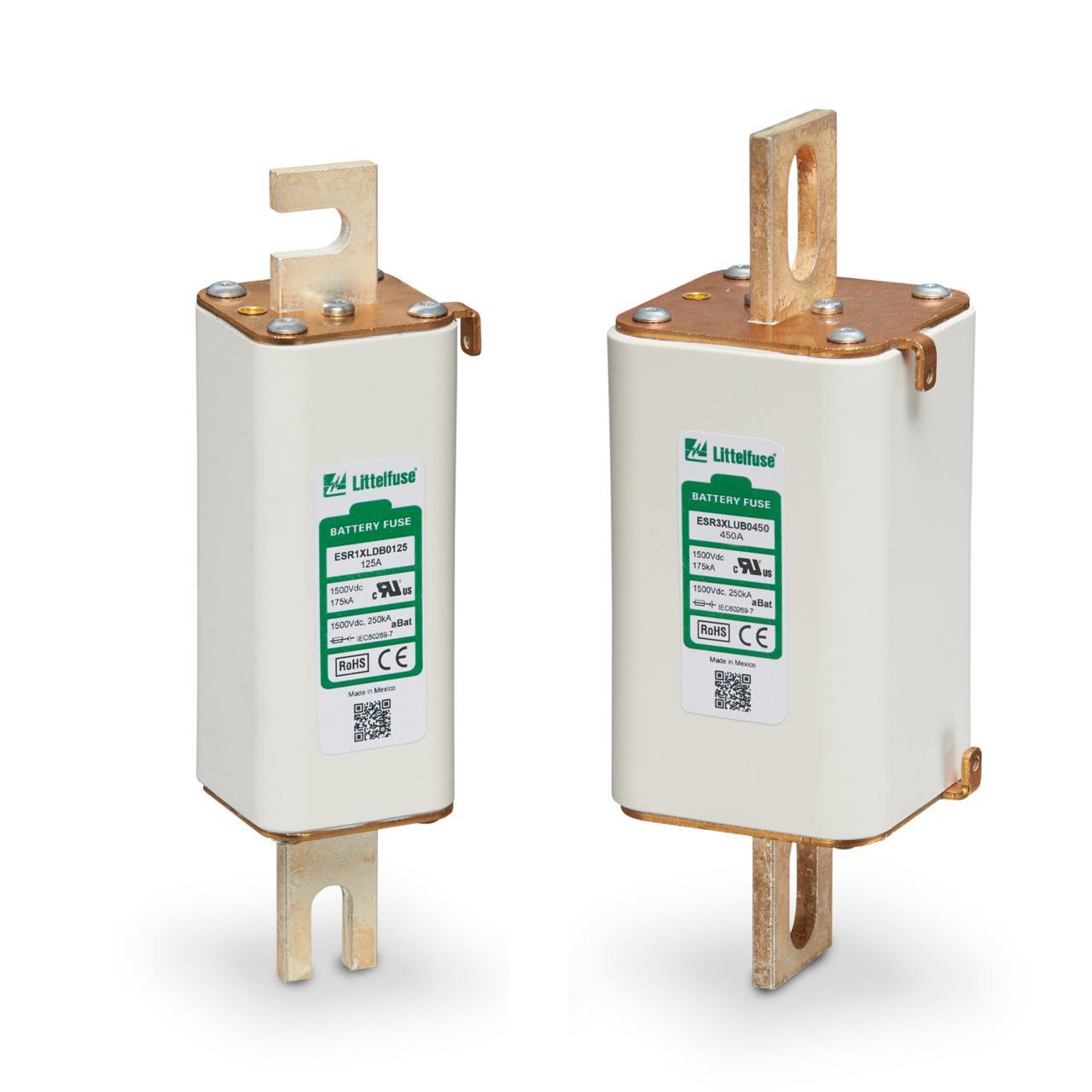

Image provided may only be a representation of final product and may include optional equipment
