Part Number # ESR3XLDB0400X
SKU # 2463963
Brand: Littelfuse
ESR3XLDB0400X
Littelfuse ESR3XLDB0400X
Part Number # ESR3XLDB0400X
SKU # 2463963
$6541.50 / 7Each
Typical price:$8373.12 / Each
Littelfuse ESR3XLDB0400X Key Features
| Brand: | Littelfuse |
|---|---|
| Part Number # : | ESR3XLDB0400X |
| SKU #: | 2463963 |
| Response Time: | <=3 ms |
| Series: | ESR |
| Type: | Power Speed |
| Mounting type: | DIN Blade |
| UNSPSC: | 39121628 |
| UPC: | 00007945837036 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6541.50 / 7Each
Typical price:$8373.12 / Each
Quantity:
Littelfuse ESR3XLDB0400X
Brand: Littelfuse
Part Number: ESR3XLDB0400X
Littelfuse, ESR3XLDB0400X, Fuses, Power Speed, Series: ESR, 400 A, 1.5 kV DC, 250 kA Interrupt, <=3 ms Response, DIN Blade Mounting, Square Body, 3.13 in Dia x 7.86 in H Body
Additional Description: LTFS-ESR3XLDB0400X ESR3XLDB0400X POWR-SPEED SQB ESR 1500VDC 3XL DIN 400A
Catalog Description: POWR-SPEED SQB ESR 1500VDC 3XL DIN 400A
ESR3XLDB0400X Application
Battery energy storage systems (BESSs). Battery Protection Unit (BPU) and battery racks. Power conversion systems. Dc common bus systems. Hybrid PV-BESS invertersESR3XLDB0400X Item Features
- High dc interrupting ratings provide superior short-circuit protection and allow scaling up systems without redesigning existing circuit protection
- The low minimum breaking current offers easy coordination with battery modules and reduces size and rating of dc contactors to save space and costs
- Extremely fast acting delivers high-speed performance
- Low watt loss maximizes efficiency by preventing energy loss and minimizing the wasted power of components
- Compact NH 1XL size saves space and offers design flexibility
- Meets IEC 60269-7 standard for the protection of batteries and battery systems
- Designed to meet evolving demands for battery circuit protection
ESR3XLDB0400X Standards
cRUus Listed|CE Listed|RoHS CompliantSKU #2463963Part Number #ESR3XLDB0400XUNSPSC39121628UPC00007945837036

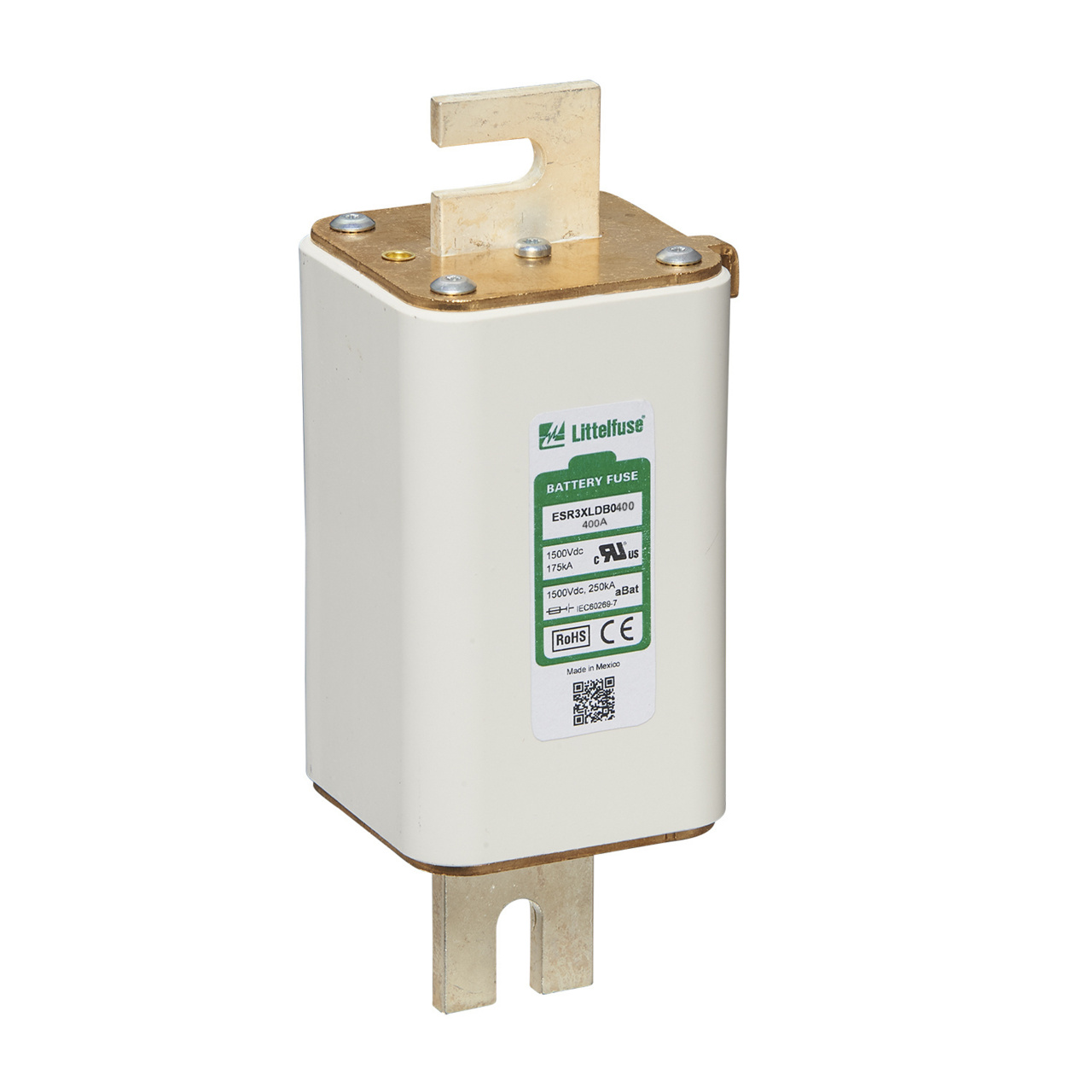

Image provided may only be a representation of final product and may include optional equipment
