54914BEUF10
Thomas & Betts 54914BEUF10
Part Number # 54914BEUF10
SKU # 2464110
Thomas & Betts 54914BEUF10 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 54914BEUF10 |
| SKU #: | 2464110 |
| UNSPSC: | 39121405 |
| UPC: | 00786209922632 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 54914BEUF10
Brand: Thomas & Betts
Part Number: 54914BEUF10

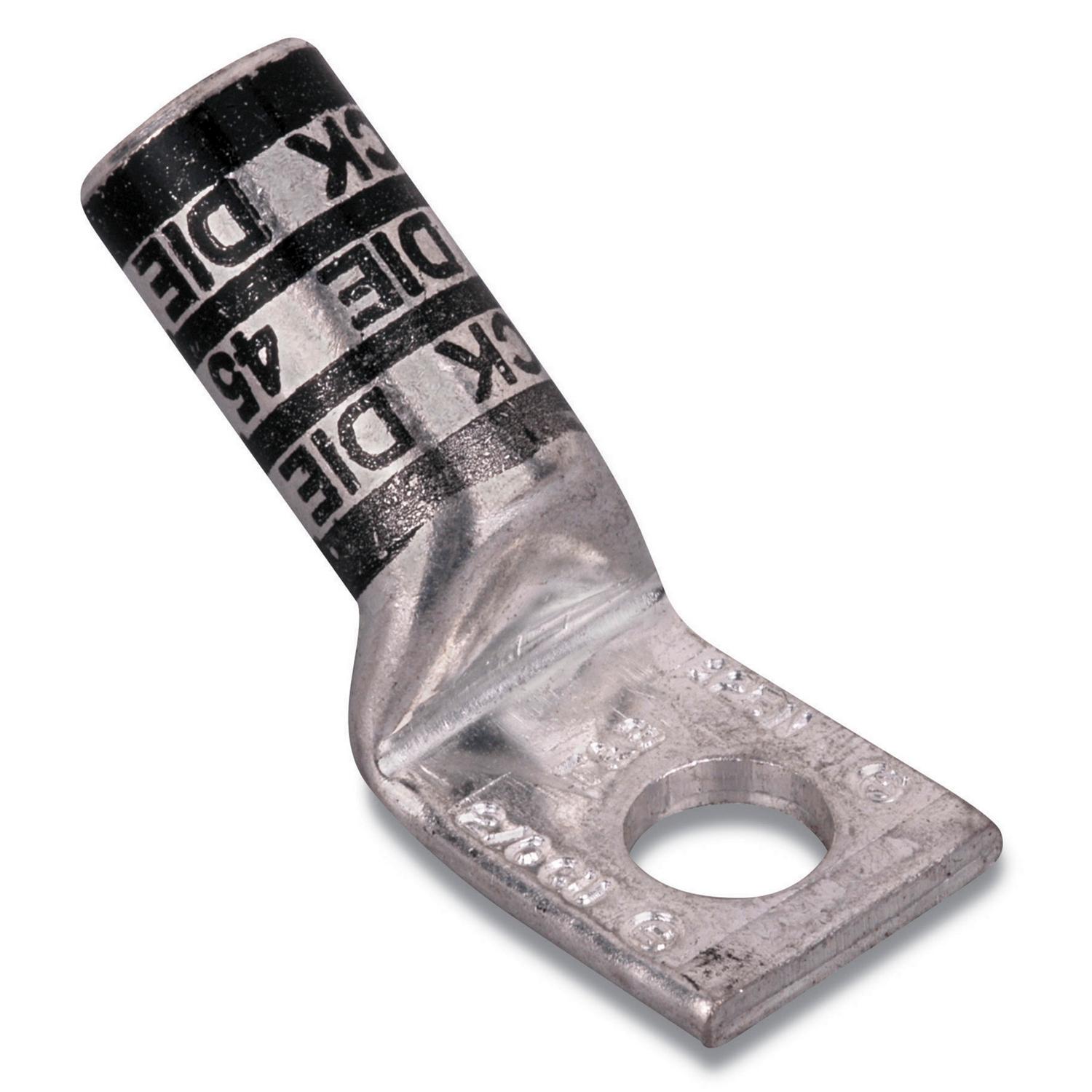

Color-Keyed Compression Lug, 1-Hole, Series: 54900, Copper/Stranded Conductor, 300 kcmil Conductor, Die Code: 66, 600 V to 35kV, 5/8 in Stud, 45 deg Tongue, 1.25 in L x 1.25 in W x 0.15 in THK Tongue, Blind End/Long Barrel, 0.85 in Dia Barrel, 0.656 in Mounting Hole, Copper, White
Additional Description: TB -54914BEUF10 (N) 54914BE 5/8 BLT 1H 45D LNG BRL NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Copper One-Hole Lug, 45 Degree Bend Long Barrel, Blind End, Max 35kV, Wire Size 300 kcmil, 5/8 Inch Bolt Size, Tin Plated, White 66
54914BEUF10 Application
For providing a high degree of reliability in electrical wiring54914BEUF10 Item Features
- Connectors have colored bands or colored dots that correspond to color markings on the dies
- Color-Keyed connectors are banded by colored stripes or engraving to indicate location of die on connector for compression
- Connection by compression
- High quality connection at a low installed cost
- High conductivity wrought copper construction
- 1/2 in hole center to end, NEMA 570/2B
54914BEUF10 Standards
UL 486A/467|CSA C22.2 No. 65|CSA C22.2 No. 04SKU #2464110Part Number #54914BEUF10UNSPSC39121405UPC00786209922632
Image provided may only be a representation of final product and may include optional equipment
