PSR070FS0160Z
Littelfuse PSR070FS0160Z
Part Number # PSR070FS0160Z
SKU # 2464186
$813.52 / 2Each
Typical price:$1735.52 / Each
Littelfuse PSR070FS0160Z Key Features
| Brand: | Littelfuse |
|---|---|
| Part Number # : | PSR070FS0160Z |
| SKU #: | 2464186 |
| Amperage Rating: | 160 A |
| Body Type: | Square |
| Class: | Class AR |
| Indicating/Non-Indicating: | Indicating |
| Interrupt Rating: | 100/150 kA |
| Series: | PSR Series |
| Terminal Type: | Flush End Inches Thread |
| Type: | High Speed Very Fast Acting |
| Country of origin: | MX |
| Material: | Ceramic |
| Mounting type: | Flush End |
| Manufacturer Name: | Littelfuse |
| UNSPSC: | 39121628 |
| UPC: | 00007945820551 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$813.52 / 2Each
Typical price:$1735.52 / Each
Quantity:
- Littelfuse POWR-SPEED Semiconductor Fuse, High Speed Very Fast Acting, Series: PSR Series, Indicating, 160 A, 1250/1300 V AC/1300/1000 V DC, 100/150 kA Interrupt, Class: Class aR, Flush End Inches Thread Terminal, Flush End Mounting, Square Body, Ceramic, 2.81 in L x 1.69 in W x 1.69 in H Body
PSR070FS0160Z Application
For power conversion devices (UPS, inverter, rectifiers, drives), DC systems (dc common bus, dc injection braking), battery protection application (energy storage systems), electric vehicle charging stations, heaters and power suppliesPSR070FS0160Z Item Features
- Best in class DC performance
- Extremely current limiting
- Superior cycling capability
- Direct bus bar mount design
- Visual and microswitch fuse blown indication
- Low watt loss design
- Class aR performance according to IEC 60269-4
- 100 kA at 1250 VAC IEC, 1300 VAC UL, 150 kA at 1000 VDC interrupt rating
- https://players.brightcove.net/1799386164001/default_default/index.html?videoId=4814378601001
PSR070FS0160Z Standards
CE Certified|cULus File No. E71611 Recognized|IEC 60269-4|REACH Compliant|UL 248-13 File No. E71611 Recognized|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer.SKU #2464186Part Number #PSR070FS0160ZUNSPSC39121628UPC00007945820551

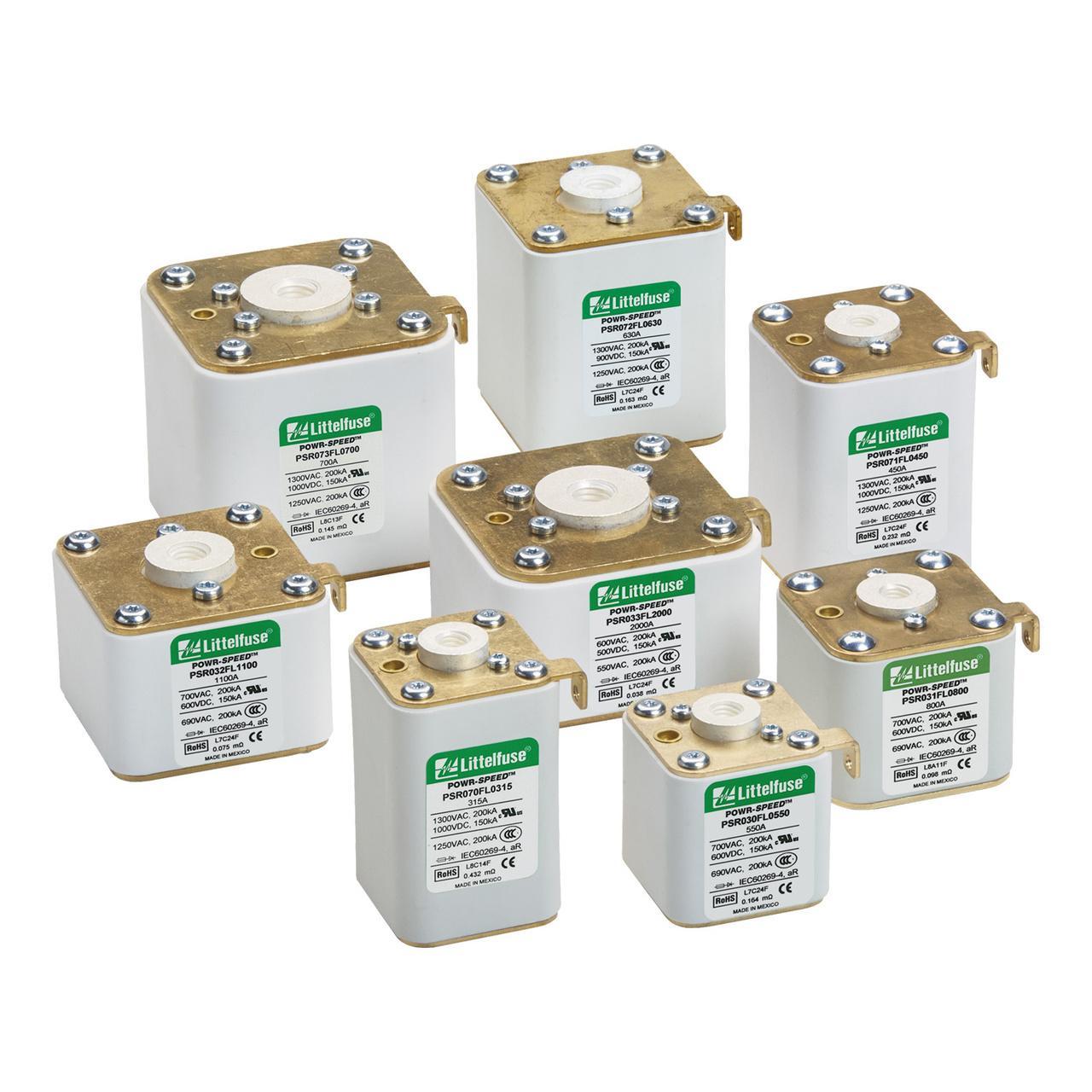

Image provided may only be a representation of final product and may include optional equipment
