Part Number # SPDC3
SKU # 2464194
SPDC3
Schneider Electric SPDC3
Part Number # SPDC3
SKU # 2464194
$399.30 / Each
Typical price:$405.00 / Each
Schneider Electric SPDC3 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | SPDC3 |
| SKU #: | 2464194 |
| Dimensions: | 3.25 in H x 3.58 in W x 3.24 in D |
| Electrical Ratings: | 300 V DC |
| Enclosure Type: | NEMA 4X |
| Environmental Conditions: | -40 to 149 deg f operating temperature, -67 to 149 deg f storage temperature, 0 to 95% operating humidity |
| Frequency Rating: | 47 to 63 Hz |
| Peak Surge Current: | 40 kA |
| Terminal Type: | 14 AWG Wire |
| Mounting type: | DIN Rail/Nipple/Bracket |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121634 |
| UPC: | 00047569001338 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$399.30 / Each
Typical price:$405.00 / Each
Quantity:
- Square D, SPDC3, Surge Protection Module, 300 V DC Electrical Rating, 47 to 63 Hz Frequency, 40 kA Peak Surge Current, 20 kA Nominal Discharge, Environmental Conditions: -40 to 149 deg f operating temperature, -67 to 149 deg f storage temperature, 0 to 95% operating humidity, NEMA 4X Enclosure, DIN Rail/Nipple/Bracket Mounting, 14 AWG Wire Terminal, 3.25 in H x 3.58 in W x 3.24 in D Dimensions
SPDC3 Item Features
- Quality surge mitigation
- Porvides 50kA per phase rating
SPDC3 Standards
UL 1449|NEMA 4XSKU #2464194Part Number #SPDC3UNSPSC39121634UPC00047569001338

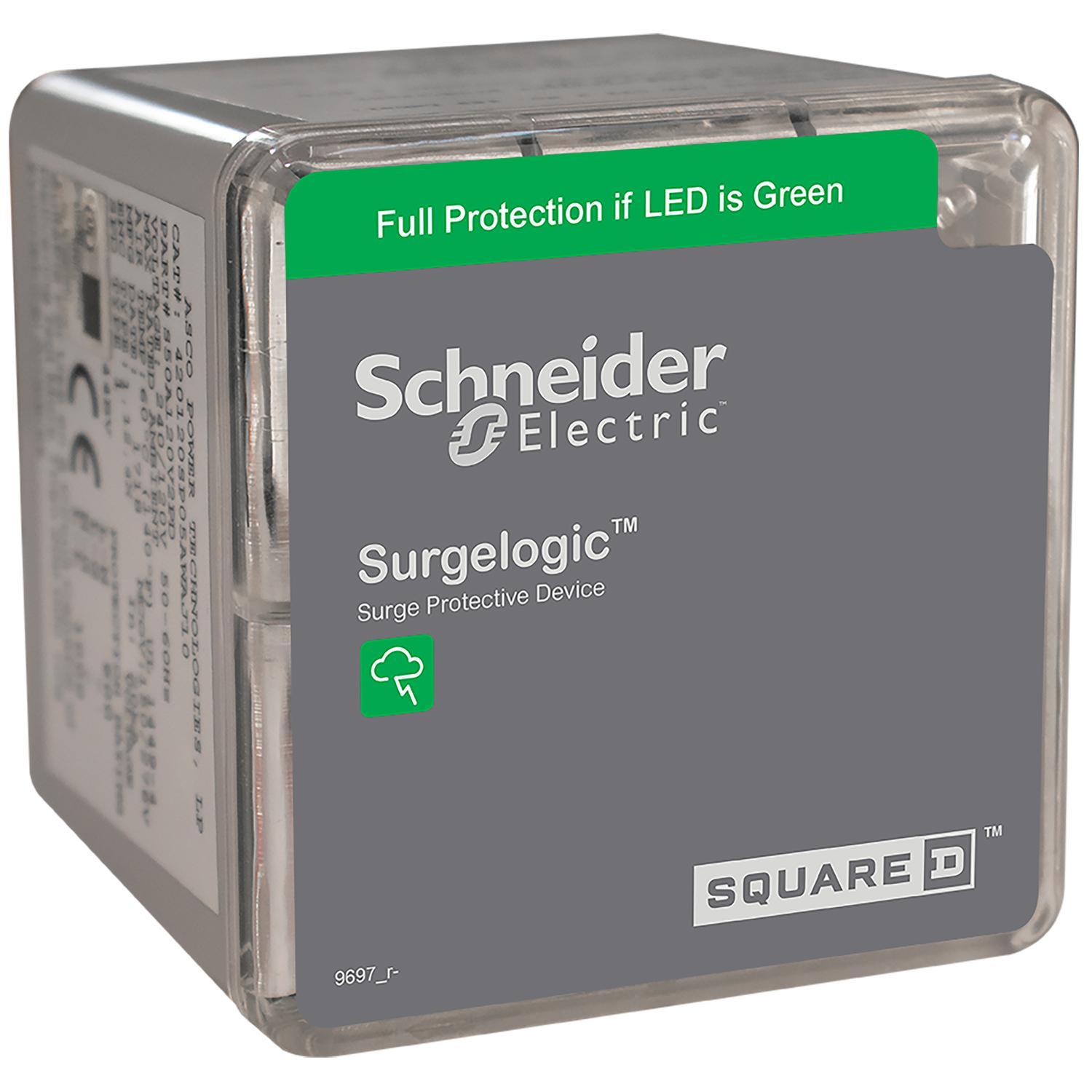

Image provided may only be a representation of final product and may include optional equipment
