Part Number # M9L37480
SKU # 2464196
M9L37480
Schneider Electric M9L37480
Part Number # M9L37480
SKU # 2464196
$276.06 / Each
Typical price:$280.00 / Each
Schneider Electric M9L37480 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | M9L37480 |
| SKU #: | 2464196 |
| Dimensions: | 3.61 in H x 2.76 in W x 2.81 in D |
| Electrical Ratings: | 20 kA |
| Enclosure Type: | NEMA 1 |
| Environmental Conditions: | -40 to 185 deg F |
| Number of Poles: | 4 |
| Number of Wires: | 5 |
| Peak Surge Current: | 20 kA |
| Response Time: | 25 ns |
| Series: | Multi 9 |
| Short Circuit Current Rating (kA): | 200 kA |
| Terminal Type: | Tunnel |
| Type: | Surge Arrester |
| Country of origin: | US |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121603 |
| UPC: | 03606481586018 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$276.06 / Each
Typical price:$280.00 / Each
Quantity:
- Schneider Electric M9L37480, Surge Arrester, Multi 9, 20 kA Electrical Rating, 4 Pole, 5 Wires, 200 kA Short Circuit, 20 kA Peak Surge Current, 20 kA Nominal Discharge, 25 ns Response, Environmental Conditions: -40 to 185 , NEMA 1 Enclosure, DIN Rail Mounting, Tunnel Terminal, Gray, 3.61 in H x 2.76 in W x 2.81 in D Dimensions
M9L37480 Item Features
- Multi 9 is a range of DIN rail modular devices, a solution offering great performance
- Multi 9 range is a Schneider Electric global offer dedicated to equipment manufacturers (OEMs), meeting all global standards for industry applications
- Designed to meet your needs for all types of machines and offering a wide range of modular devices, it provides protection, signaling functions, and accessories
- Small footprint to reduce your panel size, cost effective, less commercial references
- With remote signalling
- Electrical distribution network surge arrester type
- Type 1 surge arrester class type
- MOV surge arrester technology
- 75 kA maximum discharge current
- 75 kA iimp impulse current
- Common mode 495 V AC L/PECommon mode 320 V AC L/NDifferential mode 640 V AC L/LCommon mode 175 V AC N/PE uc maximum continuous operating voltage
- Common mode <1500 V L/PECommon mode <1000 V L/NDifferential mode <2000 V L/LCommon mode <600 V N/PE maximum up voltage protection level
- Associated circuit breaker 30 A C 10 kA disconnector device type
- 200 kA short-circuit withstand
- 8 9 mm pitches
- 0.39 in (10 mm) L/N 0.39 in (10 mm) PE 0.24 in (6 mm) dry contacts wire stripping length
M9L37480 Standards
UL 1449:ed. 4SKU #2464196Part Number #M9L37480UNSPSC39121603UPC03606481586018

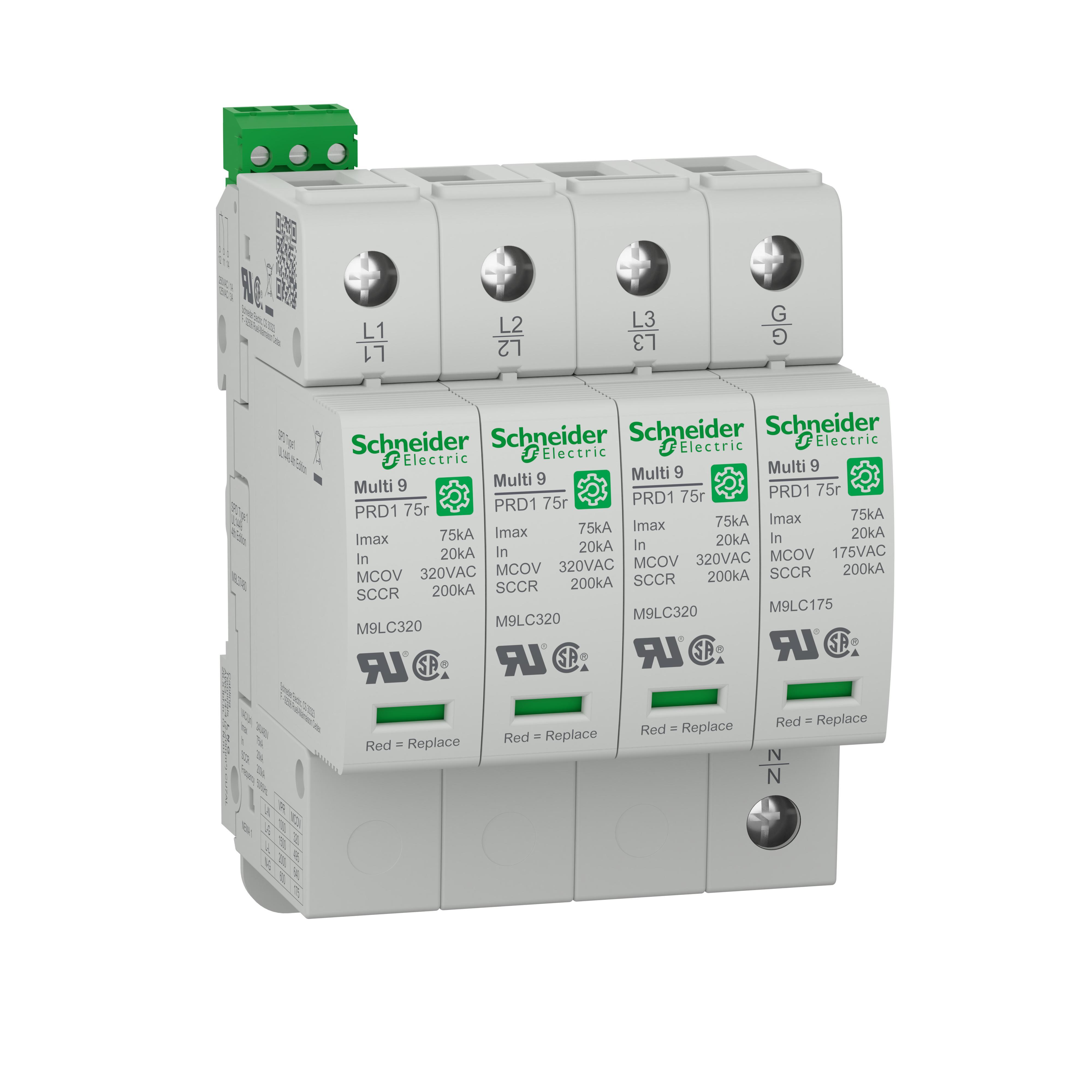

Image provided may only be a representation of final product and may include optional equipment
