Part Number # SPDE4
SKU # 2464499
SPDE4

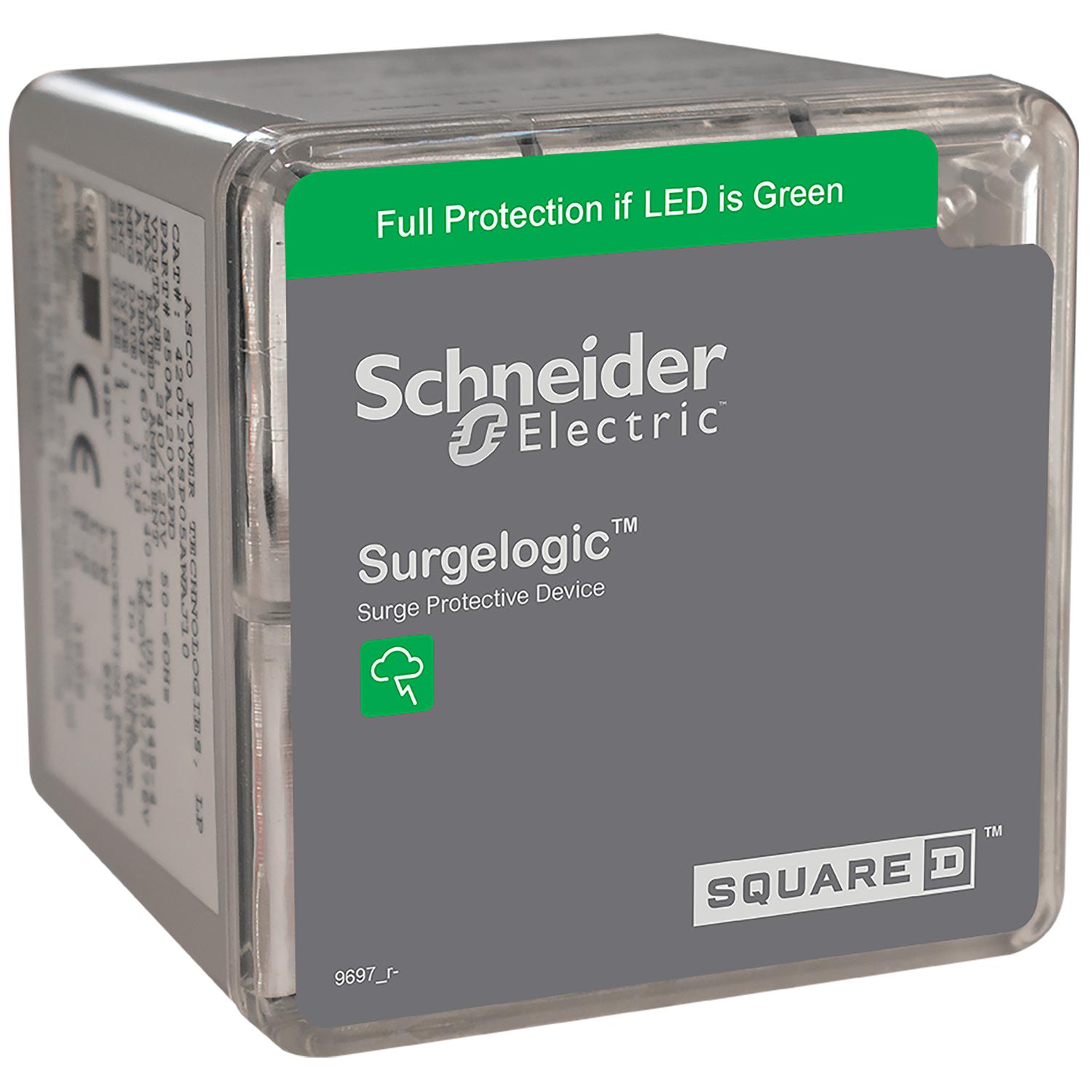

Schneider Electric SPDE4
Part Number # SPDE4
SKU # 2464499
$369.72 / Each
Typical price:$375.00 / Each
Schneider Electric SPDE4 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | SPDE4 |
| SKU #: | 2464499 |
| Dimensions: | 3.3 in H x 3.39 in W x 3.39 in D |
| Electrical Ratings: | 480Y/277 V AC |
| Enclosure Type: | NEMA 4X |
| Environmental Conditions: | -13 to 140 deg f operating temperature, -40 to 140 deg f storage temperature, 0 to 95% operating humidity |
| Number of Wires: | 4 |
| Peak Surge Current: | 50 kA |
| Phase: | 3 ph |
| Short Circuit Current Rating (kA): | 200 kA |
| Terminal Type: | 14 AWG Wire |
| Mounting type: | DIN Rail/Nipple/Bracket |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121634 |
| UPC: | 00047569001413 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$369.72 / Each
Typical price:$375.00 / Each
Quantity:
- Square D, SPDE4, Surge Protection Module, 480Y/277 V AC Electrical Rating, 4 Wires, 200 kA Short Circuit, 50 kA Peak Surge Current, 20 kA Nominal Discharge, 3 ph, Environmental Conditions: -13 to 140 deg f operating temperature, -40 to 140 deg f storage temperature, 0 to 95% operating humidity, NEMA 4X Enclosure, DIN Rail/Nipple/Bracket Mounting, 14 AWG Wire Terminal, 3.3 in H x 3.39 in W x 3.39 in D Dimensions
SPDE4 Item Features
- Quality surge mitigation with Line to Neutral and Neutral to Ground connection
- Porvides 50kA per phase rating
- Mutiple voltage configurations to meet system needs
- Has flexible mounting options
SPDE4 Standards
UL 1449:ed. 5|CSA C22.2 No 269.1|NEMA 4XSKU #2464499Part Number #SPDE4UNSPSC39121634UPC00047569001413
Image provided may only be a representation of final product and may include optional equipment
