Part Number # HWB91
SKU # 2464503
HWB91
Schneider Electric HWB91
Part Number # HWB91
SKU # 2464503
$831.89 / Each
Typical price:$2400.00 / Each
Schneider Electric HWB91 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | HWB91 |
| SKU #: | 2464503 |
| Dimensions: | 3.6 in H x 8.3 in W x 3.03 in D |
| Electrical Ratings: | 600 V AC |
| Enclosure Type: | NEMA 4X |
| Environmental Conditions: | -13 to 185 deg f operating temperature, -40 to 140 deg f storage temperature, 0 to 95% operating humidity |
| Frequency Rating: | 47 to 63 Hz |
| Number of Wires: | 3 |
| Peak Surge Current: | 100 kA |
| Phase: | 3 ph |
| Short Circuit Current Rating (kA): | 200 kA |
| Terminal Type: | 10 AWG Wire |
| Mounting type: | Surface/Flush |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121634 |
| UPC: | 00047569001000 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$831.89 / Each
Typical price:$2400.00 / Each
Quantity:

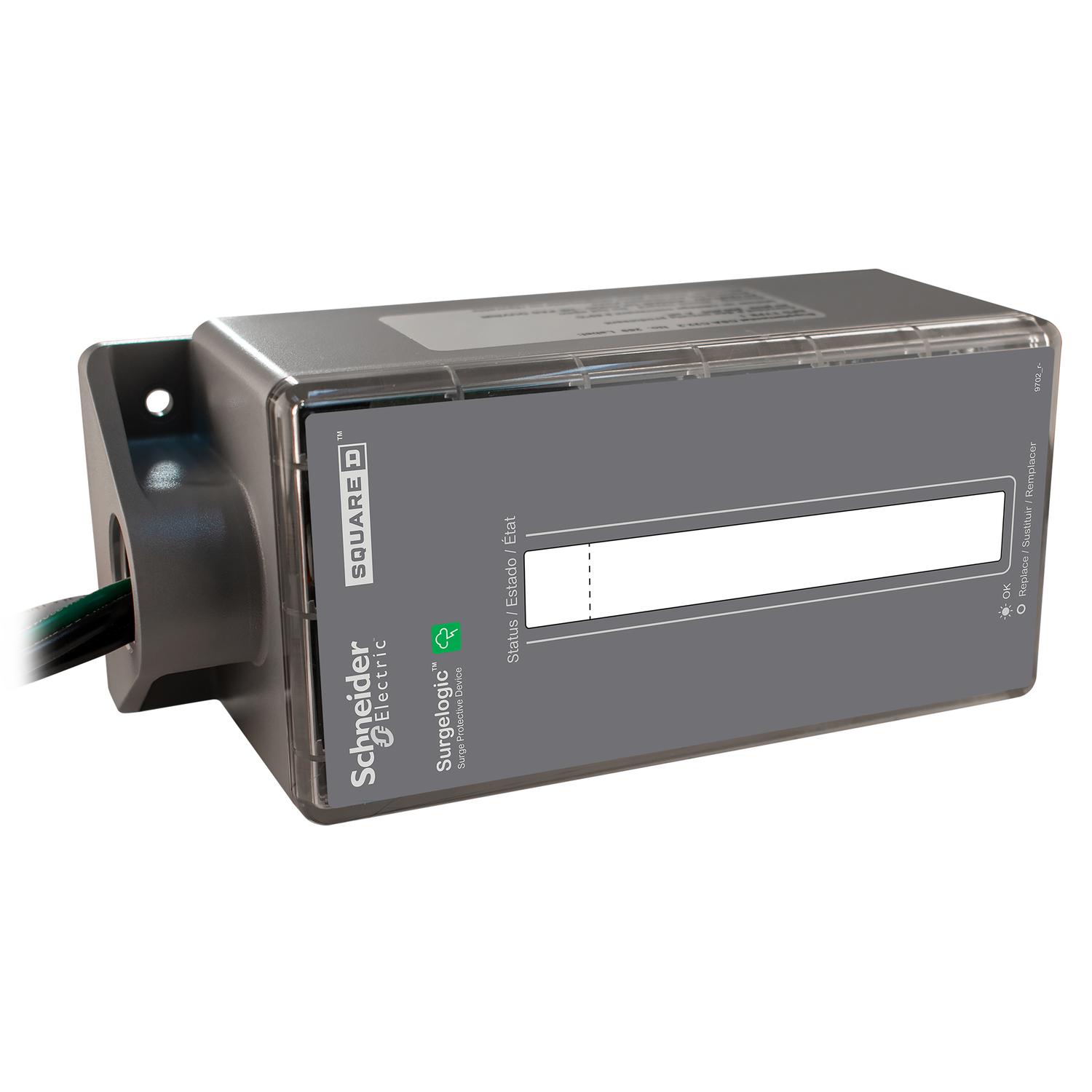

- Square D, HWB91, Surge Protection Module, 600 V AC Electrical Rating, 47 to 63 Hz Frequency, 3 Wires, 200 kA Short Circuit, 100 kA Peak Surge Current, 20 kA Nominal Discharge, 3 ph, Environmental Conditions: -13 to 185 deg f operating temperature, -40 to 140 deg f storage temperature, 0 to 95% operating humidity, NEMA 4X Enclosure, Surface/Flush Mounting, 10 AWG Wire Terminal, 3.6 in H x 8.3 in W x 3.03 in D Dimensions
HWB91 Item Features
- Surgelogic provides high performance surge suppression even in severe electrical conditions
- Externally mounted replacement module design allows for fast, easy service or replacement
- Noise filtering as well as transient surge suppression
- Fusing uses Thermal Cut-Off circuitry to isolate the SPD during severe overvoltages
HWB91 Standards
UL 1449:ed. 5|CSA C22.2 No 269.1|UL 96A|NEMA 4XSKU #2464503Part Number #HWB91UNSPSC39121634UPC00047569001000
Image provided may only be a representation of final product and may include optional equipment
