VH363AWKGLEI
Schneider Electric VH363AWKGLEI
Part Number # VH363AWKGLEI
SKU # 2464641
$1926.17 / Each
Typical price:$1992.00 / Each
Schneider Electric VH363AWKGLEI Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | VH363AWKGLEI |
| SKU #: | 2464641 |
| Actuator Type: | Single Throw |
| Amperage Rating: | 100 A |
| Dimensions: | 16.54 in H x 8.92 in W x 7.16 in D |
| Enclosure Type: | NEMA 12 |
| Number of Poles: | 3 |
| Number of Wires: | 3 |
| Phase: | 3 ph |
| Series: | VH363 |
| Terminal Type: | Ground Lug |
| Type: | Heavy Duty |
| Material: | Steel |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122205 |
| UPC: | 03606486997437 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1926.17 / Each
Typical price:$1992.00 / Each
Quantity:
- Square D, VH363AWKGLEI, SwitchInterlock, Heavy Duty, Series: VH363, 600 V AC/DC, 100 A, 3 ph, 3 Pole, 3 Wires, Single Throw Actuator, NEMA 12 Enclosure, Surface Mounting, Ground Lug Terminal, 16.54 in H x 8.92 in W x 7.16 in D Dimensions, Steel
VH363AWKGLEI Application
For Heavy applicationVH363AWKGLEI Item Features
- Heavy duty switches isolate power in daily activities and provide an effective way to interrupt power in an emergency
- Designed to satisfy individual requirements for all customers
- Visipact safety switches come with a viewing window for quick visual verification of switch position
- Designed to have a mechanical endurance three times greater than NEMA standards
- QR code allow quick access to critical ratings and other useful product documentation
VH363AWKGLEI Standards
CSA C22.2 No 4|NOM-003-SCFI-2000|UL98|UL Listed file E2875SKU #2464641Part Number #VH363AWKGLEIUNSPSC39122205UPC03606486997437

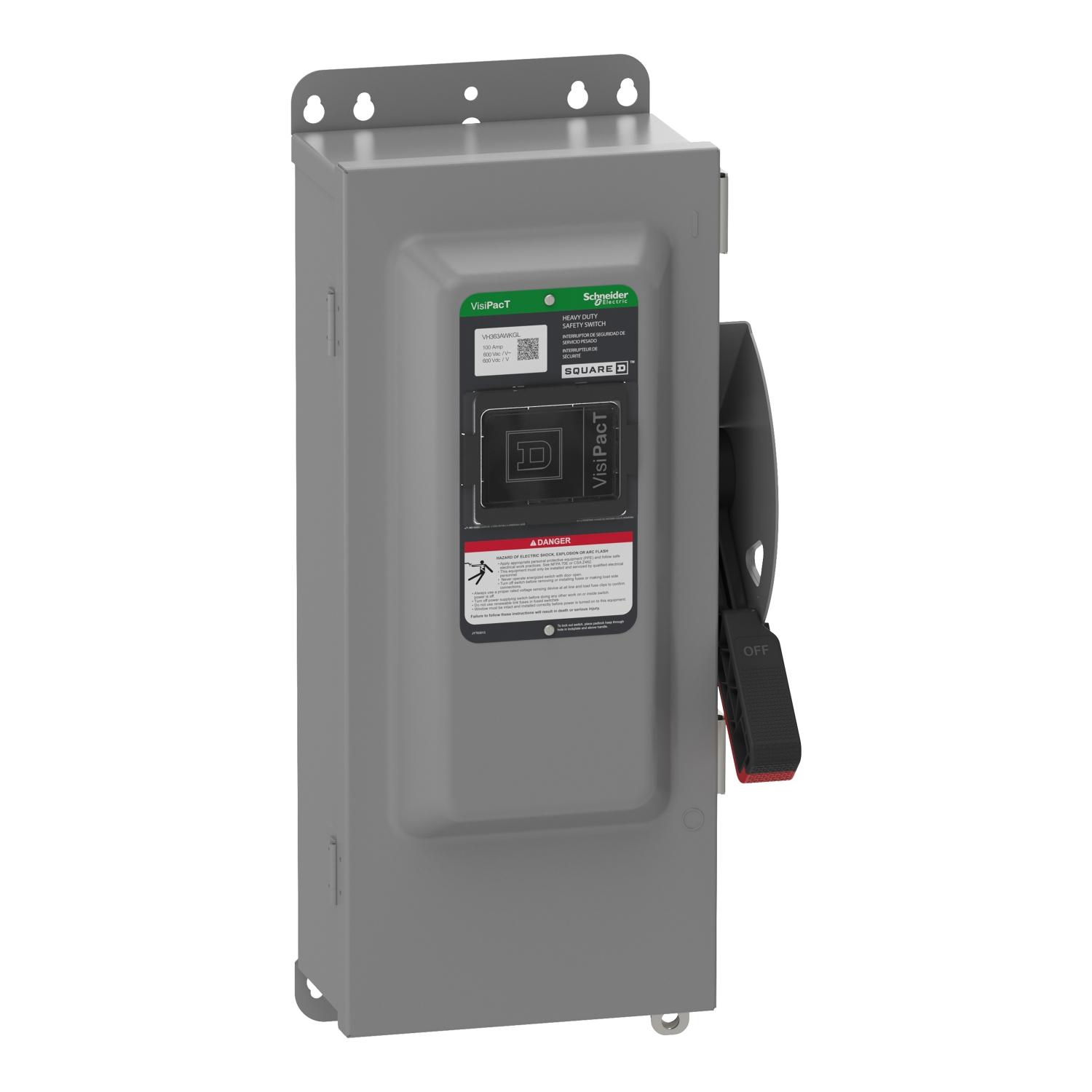

Image provided may only be a representation of final product and may include optional equipment
