Part Number # 58264799
SKU # 2465095
Southwire 58264799 Key Features
| Brand: | Southwire |
|---|---|
| Part Number # : | 58264799 |
| SKU #: | 2465095 |
| Jacket Color: | Grey |
| Jacket Material: | CPE |
| Number of Conductors: | 18 |
| Outside Diameter: | 554 mil |
| Resistance: | 2.075 Ohm |
| Strands: | 16 |
| Type: | Unshielded Multiconductor |
| Insulation material: | EPR |
| Manufacturer Name: | Southwire Company |
| UNSPSC: | 26121609 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
- Southwire, 58264799, Wire and Cable, Unshielded Multiconductor, 600/1000 V, 20 A, 18 Conductors, Copper Conductor, 18 AWG Conductor, 554 mil OD, 16 Strands, 2.075 Ohm Resistance, EPR Insulation, CPE Jacket, Grey Jacket, 90 deg F
58264799 Application
Suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, aerial supported by a messenger and where superior electrical properties are desired58264799 Item Features
- Southwires 600 V Type TC-ER control cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, aerial supported by a messenger, and where superior electrical properties are desired
- These cables are capable of operating continuously at the conductor temperature not in excess of 90 deg C for normal operation in wet and dry locations, 130 deg C for emergency overload, and 250 deg C for short circuit conditions
- Constructions with 3 or more conductors are listed for exposed runs (TC-ER) per NEC 336.10
58264799 Standards
ASTM B8|ASTM B33|UL 44|UL 1277|UL 1685|ICEA S-58-679|ICEA S-73-532|ICEA S-95-658|IEEE 1202SKU #2465095Part Number #58264799UNSPSC26121609UPC

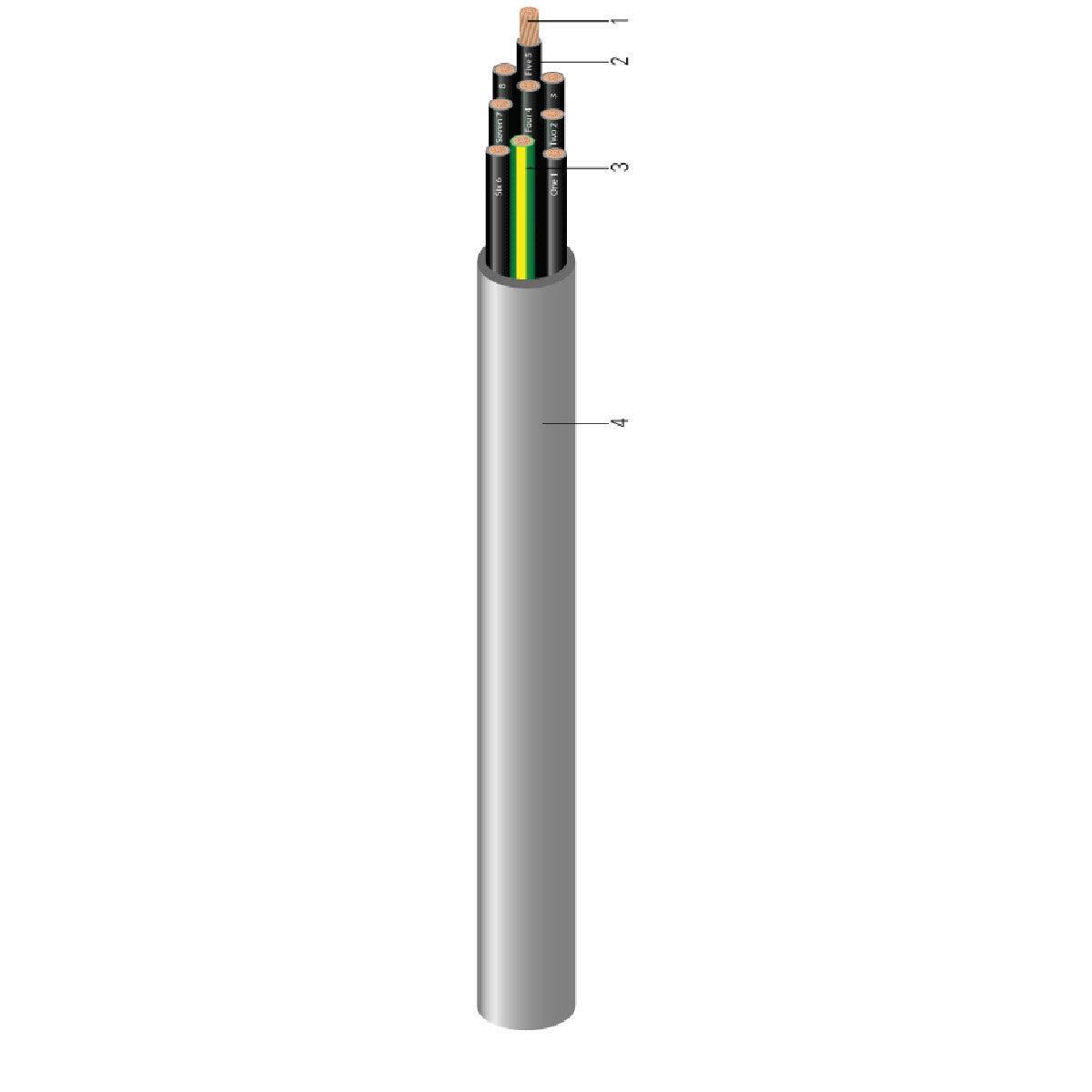

Image provided may only be a representation of final product and may include optional equipment
