9T10A1007
ABB 9T10A1007
Part Number # 9T10A1007
SKU # 2465133
ABB 9T10A1007 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T10A1007 |
| SKU #: | 2465133 |
| Dimensions: | 34.8 in W x 33 in D x 47.4 in H |
| Series: | 9T10A |
| Type: | Dry Standard Vented |
| Circuit type: | DY77A Frame |
| UNSPSC: | 39121001 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 9T10A1007
Brand: ABB
Part Number: 9T10A1007
Additional Description: ABB -9T10A1007 3A,225KVA,480-208Y,150C,N2,K1, DOE
Catalog Description: ABB Low-Voltage General Purpose Dry-Type transformers are built to last more than 20 years and are UL Listed. Our Type QL & QF transformers meet DOE 2016 efficiency standards and are UL Energy Verified as energy efficient. They are available with aluminum or copper windings and in all three temperature rise ratings. Quiet Performance-Core and coil assemblies are mounted on rubber isolation pads to reduce noise. Single-piece front/back is easily removable for installation and service. Qualified to the seismic requirements of IEEE-693-2005 and IBC-2021 and CBC 2022.
9T10A1007 Application
Commercial, Industrial, Motors, Incandescent Lighting, Resistance Heating and Motor Generators Applications9T10A1007 Includes
Lug Kit and Ground Bar Kit9T10A1007 Item Features
- Quiet performance
- Outward facing mounting feet
- Core and coil assemblies are mounted on rubber isolation pads to reduce noise
- Bolted coil terminations
- 1-piece front/back is easily removable for service
- NEMA 2 drip proof enclosure is standard, weather shield kits are available for conversion to NEMA 3R outdoor configuration
- Aluminum or copper windings and utilize a UL recognized 220 deg C insulation system
- Copper ground strap
- Robust packaging with top and side protection protects against shipping damage
- Accessible mounting flanges with front/back slotted mounting holes make installation easier
- 100% factory tested for shorts and coil integrity, current and loss, voltage, impedance and noise
- Clear, comprehensive documentation and labeling
- 5.2 % impedance
- Aluminum coil material
- +2, -4 2.5% taps
- 150 deg C temperature rise
- K1 K-factor
9T10A1007 Standards
ASCE 7.05SKU #2465133Part Number #9T10A1007UNSPSC39121001UPC

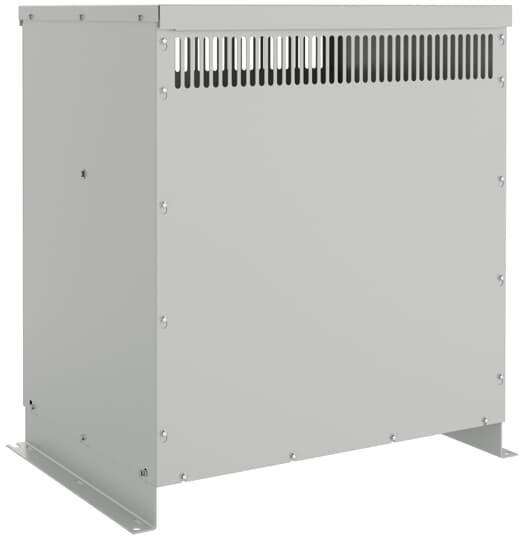

Image provided may only be a representation of final product and may include optional equipment
