1991790000
Weidmuller 1991790000
Part Number # 1991790000
SKU # 2465273
$90.08 / 50Each
Typical price:$100.05 / Each
Weidmuller 1991790000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1991790000 |
| SKU #: | 2465273 |
| Amperage Rating: | 38/41 A |
| Dimensions: | 66.5 mm H x 8.1 mm W x 45.5 mm D |
| UNSPSC: | 39121410 |
| UPC: | 04050118376494 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$90.08 / 50Each
Typical price:$100.05 / Each
Quantity:

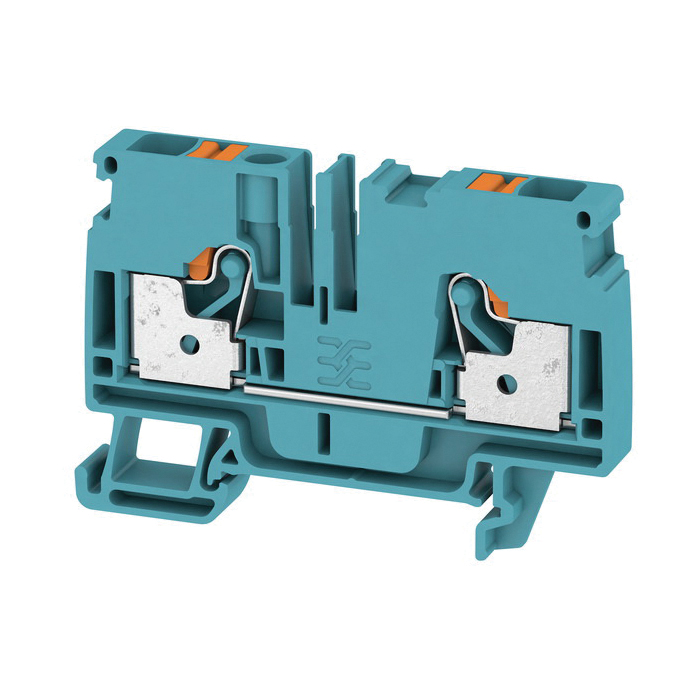

- Klippon Terminal Block, 1-Tier Feed-Through, Series: A Series, 600/800 V, 38/41 A, 22 to 8 AWG Wire, 12 mm Wire Strip Length, DIN Rail Mounting, Push-In Connection, -60 to 130 deg C, Wemid, Blue, 66.5 mm H x 8.1 mm W x 45.5 mm D Dimensions
1991790000 Item Features
- The innovative push-in technology reduces the amount of time you spend on wiring to a minimum
- Direct insertion guarantees high conductor pull-out forces and simple handling for all conductor types
- Integrated cross-connectors
- Efficient markers
- Compensating mounting foot
- Integrated pushers
- Check and test point
- 800 V IEC, 600 V UL and CSA
- 41 A IEC, 38 A UL and CSA
1991790000 Standards
RoHS Compliant|cULus File No. E60693 Recognized|CSA 200039-70089609|ATEX TUEV16ATEX7909U|IECEX IECEXTUR16.0036U|UL 94 V-0 Flammability Rating|CE Certified|DNV-GL Approved|EAC Certified|IEC 60947-7-1SKU #2465273Part Number #1991790000UNSPSC39121410UPC04050118376494
Image provided may only be a representation of final product and may include optional equipment
