2429890000
Weidmuller 2429890000
Part Number # 2429890000
SKU # 2465274
$205.55 / 50Each
Typical price:$228.30 / Each
Weidmuller 2429890000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 2429890000 |
| SKU #: | 2465274 |
| Dimensions: | 2.91 in H x 0.24 in W x 1.61 in D |
| Type: | 1 Tier |
| Wire Size: | 12 to 28 AWG |
| UNSPSC: | 39121410 |
| UPC: | 04050118439687 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$205.55 / 50Each
Typical price:$228.30 / Each
Quantity:

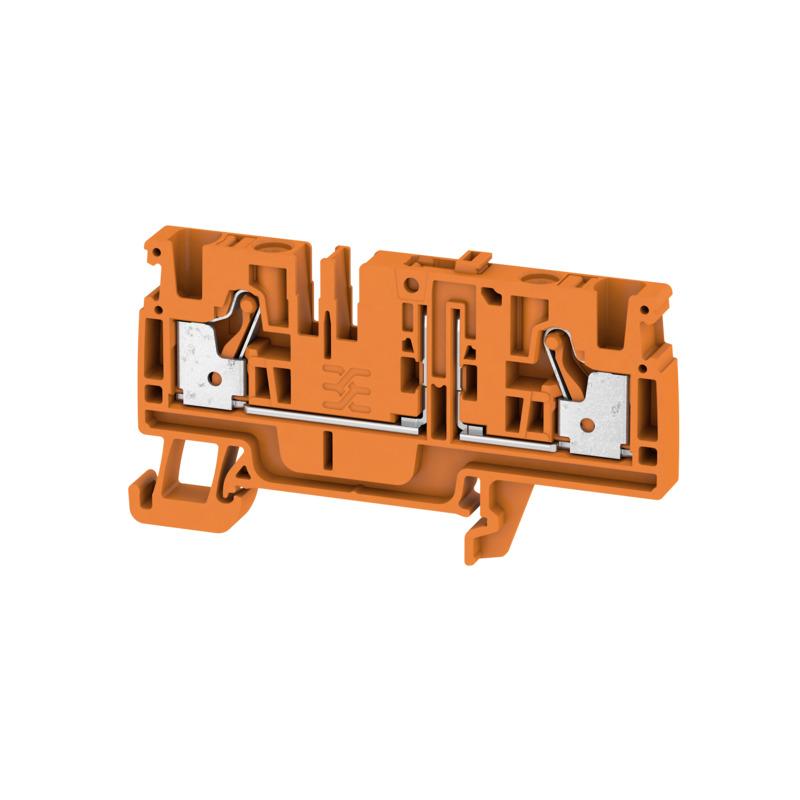

- Weidmuller, 2429890000, Terminal Block, 1 Tier, 500 V, 20 A, 12 to 28 AWG Wire, 10 mm Wire Strip Length, Test Disconnect Terminal, DIN Rail Mounting, Push-In Connection, -60 to 130 deg C, Wemid, Orange, 2.91 in H x 0.24 in W x 1.61 in D Dimensions
2429890000 Item Features
- In some applications it makes sense to add a test point or a disconnect element to the feed through terminal for testing and safety purposes
- With test disconnect terminals you measure electric circuits in the absence of voltage
- While the disconnecting points clearance and creepage distance is not assessed in dimensional terms, the specified rated impulse voltage strength must be proven
2429890000 Standards
RoHS Compliant|CCC-Ex Certified|CE Certified|CSA Certified|cURus Listed|DETNORVER|EAC Certified|IECEXTUR|KEMAKEUR|MARITREG|TUEVNATEXSKU #2465274Part Number #2429890000UNSPSC39121410UPC04050118439687
Image provided may only be a representation of final product and may include optional equipment
