Part Number # 9AS7D12
SKU # 2465306
Brand: Schneider Electric
9AS7D12

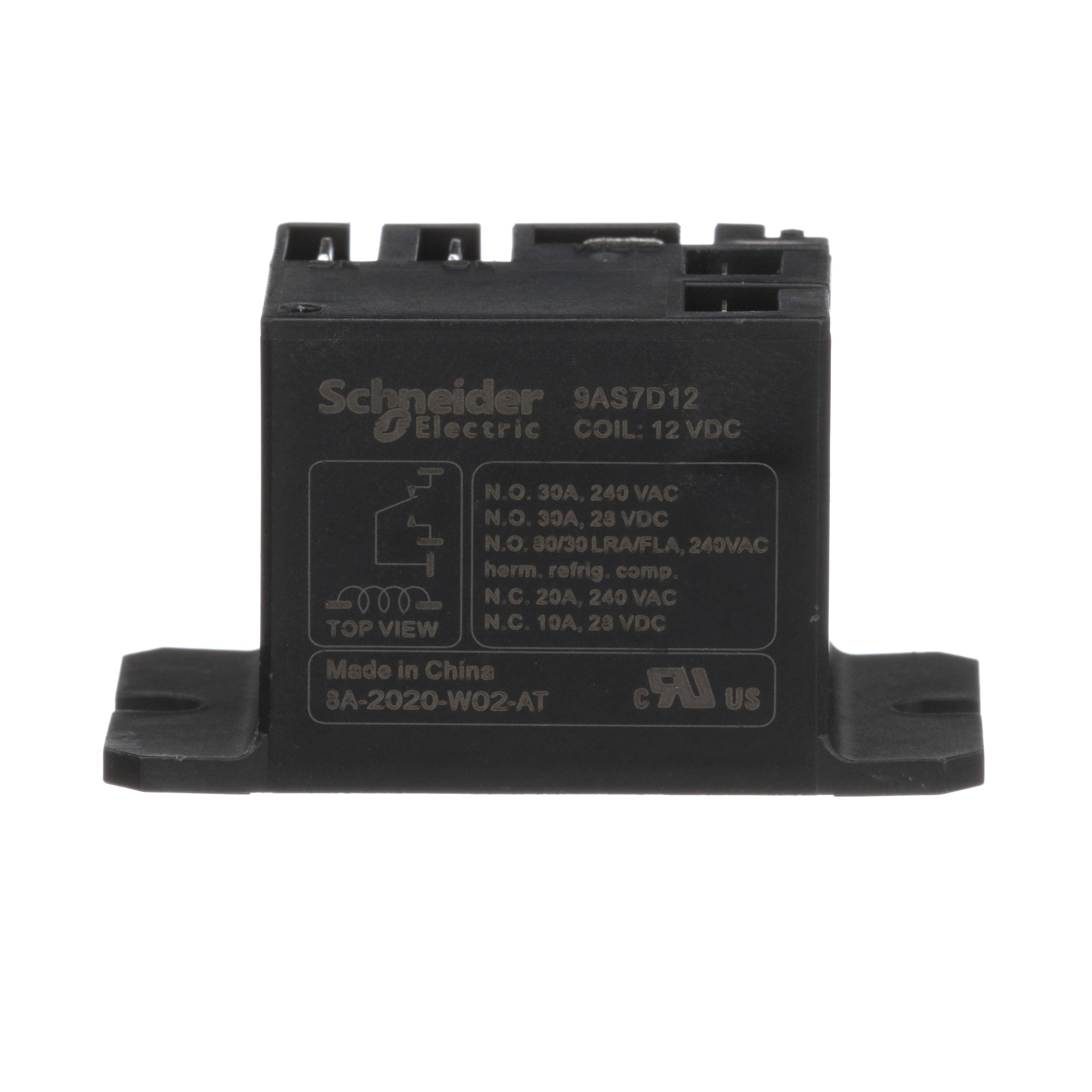

Schneider Electric 9AS7D12
Part Number # 9AS7D12
SKU # 2465306
$18.37 / Each
Typical price:$18.94 / Each
Schneider Electric 9AS7D12 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | 9AS7D12 |
| SKU #: | 2465306 |
| Series: | Harmony Series |
| Type: | Power Relay |
| UNSPSC: | 39122324 |
| UPC: | 00785901797746 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$18.37 / Each
Typical price:$18.94 / Each
Quantity:
Schneider Electric 9AS7D12
Brand: Schneider Electric
Part Number: 9AS7D12
Electromechnical Power Relays, Harmony 9A, 30A, 12 VDC SPDT, flanged panel mount, sealed cover
Additional Description: SQD -9AS7D12 ELECTROMECHNICAL POWER RELAYS, 12VDC
Catalog Description: Electromechnical Power Relays, Harmony 9A, 30A, 12 VDC SPDT, flanged panel mount, sealed cover
9AS7D12 Item Features
- SE Relays power relays easily handle current loads of 20 to 50 A (can also switch loads as low as 100 mA)
- With multiple features as well as panel and DIN mounting options, these relays offer the performance and flexibility needed to improve design, expedite installation, and simplify testing of your application
- Rated up to 50 A
- Socket compatible models available
- Blowout magnet options for high DC voltage switching
- Feature-rich covers, mounting options and accessories to suit a multitude of applications
- Silver alloy contacts contacts material
- 30 A NO20 A NC load current
- Any position operating position
- 470 VA at 240 V, NO on pilot duty275 VA at 240 V, NC on pilot duty rated power in va
- 1 hp at 125 V AC, NO2 hp at 250 V AC, NO0.25 hp at 125 V AC, NC0.5 hp at 250 V AC, NC rated power in hp
- 5 W at 1 A, 5 V DC12 VA at 1 A, 12 V AC minimum switching capacity
- 155 Ohm at 73 deg F (23 deg C) +/- 10 % average resistance
- >= 0.1 Uc drop-out voltage threshold
- 0.9 W average coil consumption
- 4 kV 1.2/50 s rated impulse withstand voltage
- 10000000 cycles mechanical durability
- 20 ms operate time
- 10 ms release time
9AS7D12 Standards
PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2465306Part Number #9AS7D12UNSPSC39122324UPC00785901797746
Image provided may only be a representation of final product and may include optional equipment
