Part Number # MLLED4CP5BU
SKU # 2465364
MLLED4CP5BU
Appleton MLLED4CP5BU
Part Number # MLLED4CP5BU
SKU # 2465364
$883.24 / Each
Typical price:$1201.21 / Each
Appleton MLLED4CP5BU Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | MLLED4CP5BU |
| SKU #: | 2465364 |
| Amperage Rating: | 0.48 A at 120 V/0.16 A at 347 V/0.20 A at 277 V/0.10 A at 480 V |
| Color Rendering Index (CRI): | 70 |
| Enclosure Type: | NEMA 3R/4/4X/IP66/IP67 |
| Fixture Wattage: | 49.3, 50.5, 48, 50.4 W |
| Housing Finish: | Gray Epoxy Powder Coated |
| Lamp Type: | LED |
| Lens Type: | Polycarbonate |
| Light Color: | Cool |
| Lumens: | 5300 Lumens |
| Series: | MLLED |
| Type: | Enclosed Gasketed |
| Housing material: | Aluminum |
| Mounting type: | Pendant Cone Hood |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39111544 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$883.24 / Each
Typical price:$1201.21 / Each
Quantity:
- Appleton, MLLED4CP5BU, Explosion-Proof Outdoor Lighting, Enclosed Gasketed, Series: MLLED, 120 to 277 VAC, 125 to 300 VDC, 49.3, 50.5, 48, 50.4 W Fixture, 0.48 A at 120 V, 0.16 A at 347 V, 0.20 A at 277 V, 0.10 A at 480 V, LED Lamp, 60000 hr Average Life, Cool Light, 5000 K Color Temperature, 70 CRI, Polycarbonate Lens, 5300 Lumens, NEMA 3R/4/4X/IP66/IP67 Enclosure, Pendant Cone Hood Mounting, Aluminum Housing Material, Gray Epoxy Powder Coated Housing Finish
MLLED4CP5BU Application
Suited for low mounting heights , allow for mounting in any locationMLLED4CP5BU Item Features
- Compact, light weight, low profile design is suited for low mounting heights
- Seven standard mounting hood designs allow for mounting in any location
- Uses the same mounting hoods as the Mercmaster III HID
- Customize to the application requirements with four different globe options, clear and diffused polycarbonate, clear glass, or prismatic glass refractor
- Three light output levels for retrofit of HID fixtures up to 175 W
- Emergency version provides up to 1400 lumens illumination for 90 min of emergency lighting with clear lens or 800 lumens illumination for 180 min of emergency lighting
- Hinge has high lip for added safety during installation and servicing
- Hinge and bolt construction assures 360 deg compression at all points on fixture housing gasket for positive sealing
- Swing away design of captive bolt and nut simplifies servicing
- Standard screw-type terminal block can accept 24-10 AWG wire
- NPT threads standard
- Emergency version features functional diagnostic test self-initiates every 14 days after initial start up
- Duration test is automatically performed once per year
- Green and Red LEDs indicate charging status and provide fault warning on Emergency version
- Quick disconnect connector easily cuts power between LEDs and battery management module to allow maintenance in hazardous locations on Emergency version
- Universal ratings provide vast regional coverage and can be specified by end users to meet NEC, CEC, IECEx or ATEX requirements
MLLED4CP5BU Standards
NEC/CEC Certified Class I, Division 2, Groups A, B, C, D/Class II, Division 1 and 2, Group E, F, G/Class III/Class I Zone 2 AEx ec IIC/Zone 21 AEx tb IIIC/Class I Zone 2 Ex ec IIC/Zone 20 Group IIIC/Type 3R, 4$ 4X/IP66/IP67/IDA Approved with VisorSKU #2465364Part Number #MLLED4CP5BUUNSPSC39111544UPC

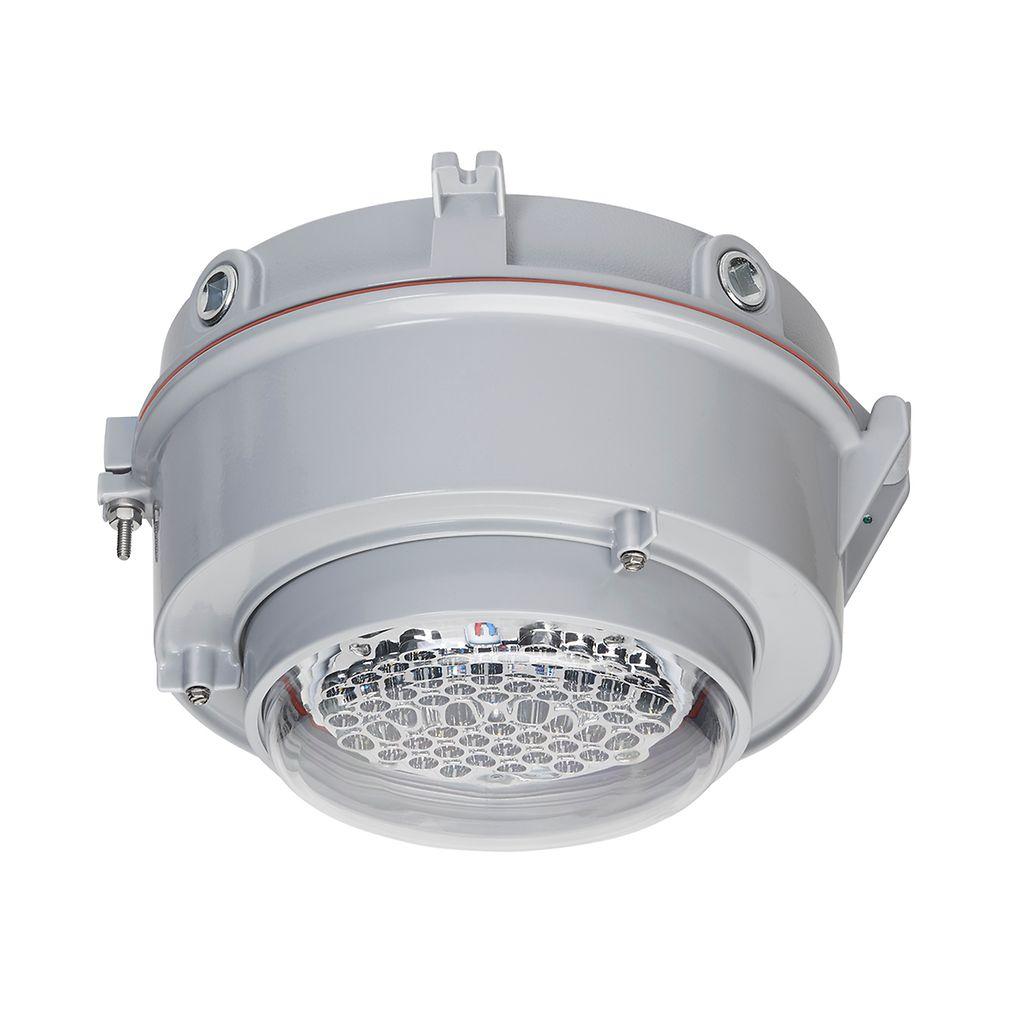

Image provided may only be a representation of final product and may include optional equipment
