Part Number # CR306FXM002
SKU # 2465373
CR306FXM002
ABB CR306FXM002
Part Number # CR306FXM002
SKU # 2465373
$3742.76 / Each
Typical price:$6420.00 / Each
ABB CR306FXM002 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | CR306FXM002 |
| SKU #: | 2465373 |
| Amperage Rating: | 135 A |
| Auxiliary Contact Rating: | 1NO-1NC |
| Coil Voltage: | 115 to 120 V AC |
| Dimensions: | 11.62 in H x 6.62 in W x 6.5 in D |
| Enclosure Type: | Open |
| Frequency Rating: | 50/60 Hz |
| Full Load Current: | 65 to 135 A |
| Number of Poles: | 3 |
| Operating Cycles: | 5000000 Cycles |
| Operating Temperature: | -20 to 70 deg C |
| Overload Relay: | 3-Leg Block/Solid-State |
| Reset Type: | Manual |
| Series: | CR306/300-Line |
| Type: | Full Voltage Magnetic Non-Combination Non-Reversing |
| Wattage: | 50 W |
| Connection type: | Line/Load |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121521 |
| UPC: | 00783166564707 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3742.76 / Each
Typical price:$6420.00 / Each
Quantity:
- GE NEMA Starter, Full Voltage Magnetic Non-Combination Non-Reversing, Series: CR306/300-Line, 600 V AC, 135 A, 50/60 Hz Frequency, 50 W Wattage, 115 to 120 VAC Coil, 3 Pole, Manual Reset, Line/Load Connection, 3-Leg Block/Solid-State Overload Relay, 65 to 135 A Full Load, 1NO-1NC Auxiliary, Open Enclosure, 5000000 Cycles Operating Cycles, -20 to 70 deg C Operating, 11.62 in H x 6.62 in W x 6.5 in D Dimensions
CR306FXM002 Application
Motor Control Center, Custom Type Control Panel, Switchgear Equipment, Electrical Distribution and Control ApplicationsCR306FXM002 Includes
Holding Interlock, Pressure Terminal and Solid State Overload RelayCR306FXM002 Item Features
- Toolless contactor disassembly (sizes 00 to 4) - allows quick access for inspection and maintenance
- Just release 2 retainers and pull a clip to get at magnet, coil and contacts
- Current carrying components - contact tips are weld resistant silver cadmium oxide (fine silver on sizes 00 and 0 only)
- Contacts are installed in a wedge configuration for positive make with minimum bounce
- Class 20 overload protection
- Visual trip indicator with manual reset - to avoid surprise restarts
- Reset occurs on arm upstroke so a tripped condition cant be overridden by holding the arm down
- Manual weld check - provides a convenient test against welding of overload relay contacts
- Just depress the weld check operator to trip the relay, run a simple continuity test across the relay contacts, then depress the manual reset to return the starter to service
- Dual bimetals - anticipate overloads, responding to rising current and temperature with faster tripping on severe overloads for better motor protection
- Trip points are factory calibrated for accuracy
- +/-10% trip adjustment - by turning a dial in the overload relay face allows "tuning" the protection to the motor on the spot
CR306FXM002 Standards
ARRA Compliant|Buy American Act Compliant|RoHS CompliantSKU #2465373Part Number #CR306FXM002UNSPSC39121521UPC00783166564707

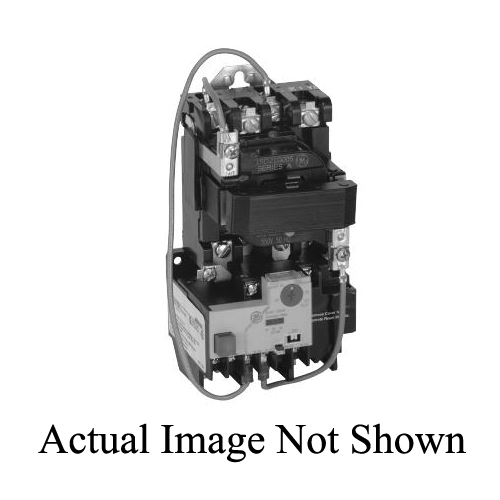

Image provided may only be a representation of final product and may include optional equipment
