Part Number # 1SVR740884R3300
SKU # 2465431
1SVR740884R3300

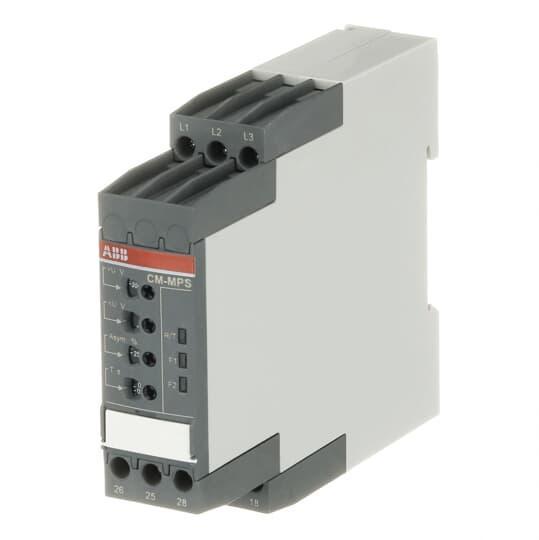

ABB 1SVR740884R3300 3-Phase Multi-Functional Monitoring Relay, 300 to 500 V AC, 2 to 4 A, 2CO SPDT Contact, 300 to 500 V AC V Coil
Part Number # 1SVR740884R3300
SKU # 2465431
$331.93
Typical price:$410.61 /
1SVR740884R3300 Key Features
| Part Number # : | 1SVR740884R3300 |
|---|---|
| SKU #: | 2465431 |
| Amperage Rating: | 2 to 4 A |
| Coil Voltage: | 300 to 500 V AC |
| Contact Configuration: | 2CO SPDT |
| Dimensions: | 103.7 mm L x 22.5 mm W x 85.6 mm H |
| Enclosure Type: | IP20/IP50 |
| Frequency Rating: | 50/60 Hz |
| Response Time: | 0/0.1 to 30 s Tripping/200 ms Startup Delay |
| Terminal Type: | Screwless |
| Type: | 3-Phase Multi-Functional |
| Country of origin: | DE |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122332 |
| UPC: | 804325584869 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$331.93
Typical price:$410.61 /
Quantity:
- ABB, 1SVR740884R3300, Monitoring Relay, 3-Phase Multi-Functional, 300 to 500 V AC, 2 to 4 A, 50/60 Hz Frequency, 300 to 500 V AC Coil, 2CO SPDT Contact Configuration, DIN Rail Mounting, Screwless Terminal, 0/0.1 to 30 s Tripping/200 ms Startup Delay Response, IP20/IP50 Enclosure, 103.7 mm L x 22.5 mm W x 85.6 mm H Dimensions
1SVR740884R3300 Application
For protection of sensitive three phase loads, protection against phase unbalance, phase loss and phase reversal, overvoltage and undervoltage1SVR740884R3300 Item Features
- Protects against - phase unbalance, phase loss and phase reversal, overvoltage and undervoltage
1SVR740884R3300 Standards
CAN/CSA C22.2 No. 14|EN 50581|IEC/EN 60255-27, 61000-6-2, 61000-6-3|UL 508|CCC Certified|cULus 508 20120829-E140448|DNV GL Certified|RMRS ApprovedSKU #2465431Part Number #1SVR740884R3300UNSPSC39122332UPC804325584869
Image provided may only be a representation of final product and may include optional equipment
