Part Number # TCF125RN
SKU # 2465645
TCF125RN
Bussmann TCF125RN
Part Number # TCF125RN
SKU # 2465645
$361.36 / Each
Typical price:$531.20 / Each
Bussmann TCF125RN Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | TCF125RN |
| SKU #: | 2465645 |
| Body Type: | Square |
| Class: | CF |
| Response Time: | 10 s |
| Series: | TCF |
| Terminal Type: | Blade |
| Type: | Non-Indicating Time Delay |
| Material: | Glass Filled Polyethersulfone |
| UNSPSC: | 39121606 |
| UPC: | 00051712697927 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$361.36 / Each
Typical price:$531.20 / Each
Quantity:

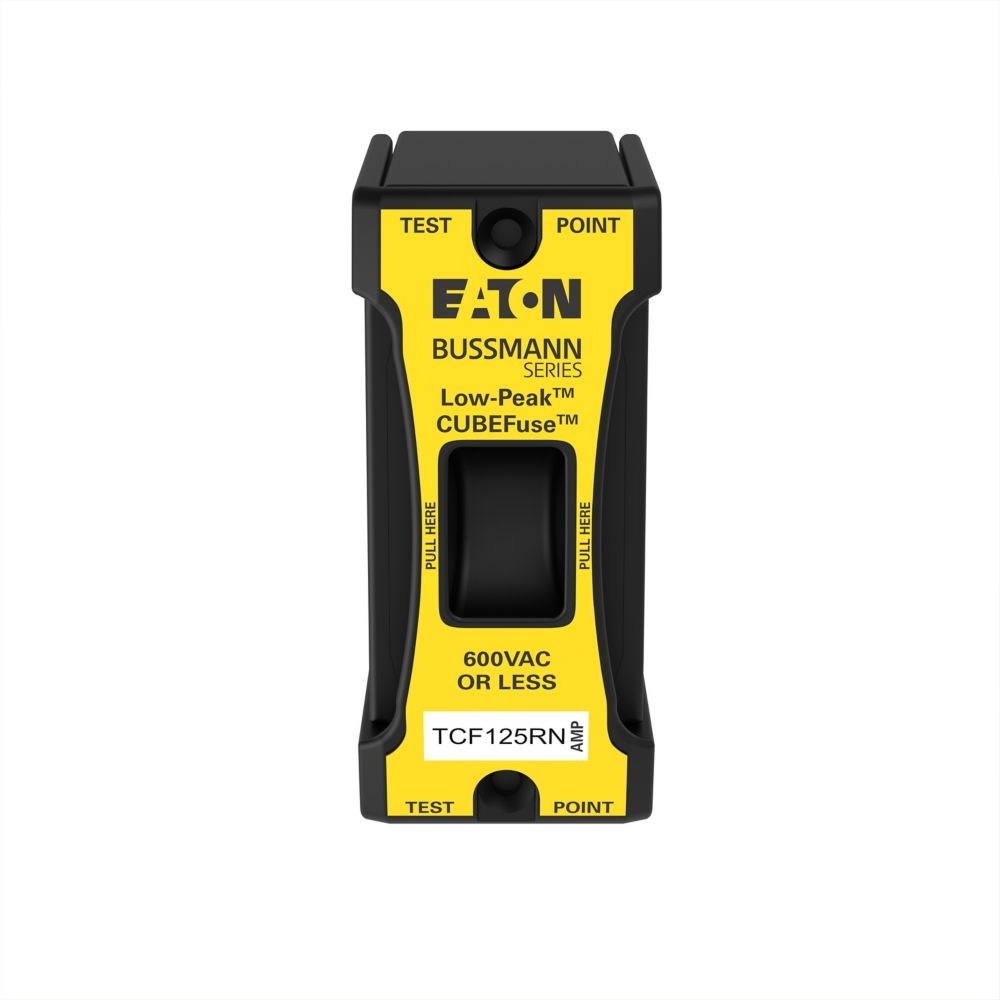

- EATON Bussmann Low-Peak CUBEFuse Fuse, Non-Indicating Time Delay, Series: TCF, 125 A, 600 V, 200 kA Interrupt, Class: CF, 10 s Response, Blade Terminal, Holder Mount, Square Body Type, Dual Element, Glass Filled Polyethersulfone, 2.9 in W x 1.34 in D x 3.62 in H Body Size
TCF125RN Application
Commercial/Institutional Buildings/structures, Power Distribution and Control, Electrical Panelboards, Machinery Disconnects, Finger Safe Systems, Industrial Control and Panel Applications, Stationary Machinery and Equipment Outside FactoryTCF125RN Item Features
- The worlds first finger safe industrial fuse system
- Smallest installed footprint of any UL Class CC, J, or R fuse solution
- UL class CF with Class J time delay electrical performance
- The indicating version features easyID open fuse technology for faster troubleshooting and reduced downtime
- Faster response to damaging faults reduces destructive thermal and magnetic forces
- True dual-element fuse construction with a minimum of 10 sec time delay at 500% of rating
- Long time delay minimizes nuisance circuit openings due to temporary overloads and transient surges
- Up to 300 kA interrupting rating safely interrupts virtually any fault
- Robust cycling and inrush current withstand
- Low let through currents under fault conditions
- Provides type 2 "no damage" in protection for IEC motors starters when properly sized
- Easy selective co-ordination with any other Bussmann series Low-Peak class CC, J, L or RK1 fuse with simple 2:1 amp ratio between upstream and downstream fuses
- 200 kA rms symmetrical, 100 kA DC interrupting rating
- https://www.youtube.com/watch?v=YMvqUyoETXk
TCF125RN Standards
UL Listed,RoHS CompliantSKU #2465645Part Number #TCF125RNUNSPSC39121606UPC00051712697927
Image provided may only be a representation of final product and may include optional equipment
