FBS2H150A1-15
Thomas & Betts FBS2H150A1-15
Part Number # FBS2H150A1-15
SKU # 2465833
$322.90 / Each
Typical price:$432.68 / Each
Thomas & Betts FBS2H150A1-15 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | FBS2H150A1-15 |
| SKU #: | 2465833 |
| UNSPSC: | 39121465 |
| UPC: | 00783786003464 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$322.90 / Each
Typical price:$432.68 / Each
Quantity:
Thomas & Betts FBS2H150A1-15
Brand: Thomas & Betts
Part Number: FBS2H150A1-15
Additional Description: TB -FBS2H150A1-15 (N) FLEX BRAID 2 9/16H 1/2X1-1/2X 15 IN NON-CANCELABLE, NON-RETURNABLE

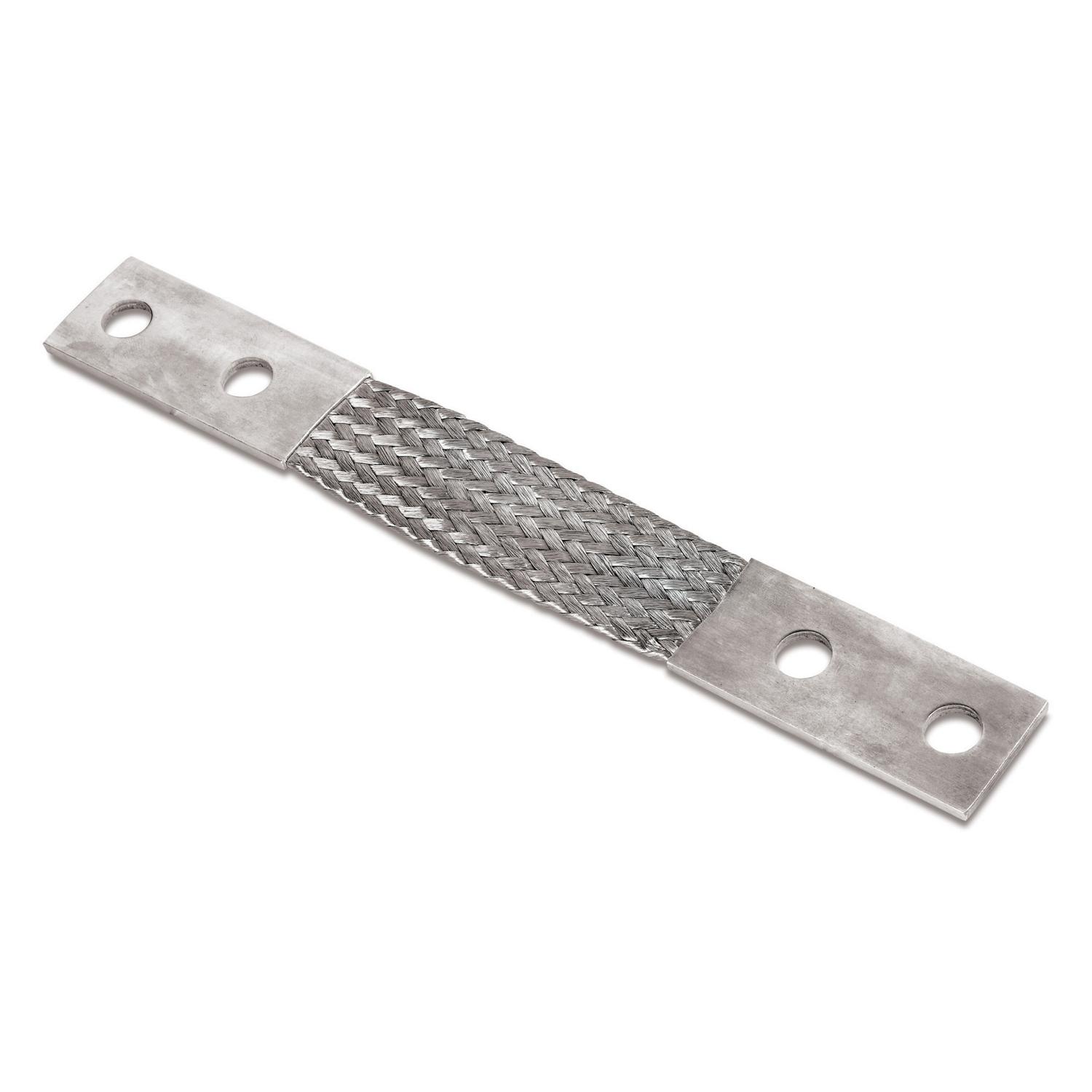

Catalog Description: 2-Hole NEMA Flexible Jumper Braid - Number of Braids in Assembly 6, Width 1-1/2 inch, Ferrule Length 3 1/2 inch, Center to Center Distance Between Holes 1-3/4 inch, Distance from Hole to End of Ferrule E 5/8 inch, Hole 9/16 inch, Thickness 1/2 inch, Length 15 inches
FBS2H150A1-15 Application
For connect transformers, generators or busbars wherever there is severe vibration or misalignmentFBS2H150A1-15 Item Features
- 36 AWG individual wires in braid construction for flexibility with connections
- 99.9% pure copper ferrules on each end provide high conductivity
- Individual wires are tinned prior to weaving to deliver maximum protection from corrosion
FBS2H150A1-15 Standards
CEI60694|IEEE/ANSI C37.34 1994SKU #2465833Part Number #FBS2H150A1-15UNSPSC39121465UPC00783786003464
Image provided may only be a representation of final product and may include optional equipment
