Part Number # CR463L70AJA
SKU # 2465905
CR463L70AJA
ABB CR463L70AJA
Part Number # CR463L70AJA
SKU # 2465905
ABB CR463L70AJA Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | CR463L70AJA |
| SKU #: | 2465905 |
| Coil Voltage: | 110/115 to 120 V AC |
| Contact Configuration: | 7NO |
| Contact Rating: | A600, 10 A at 600 V AC |
| Dimensions: | 3.86 in W x 4.18 in D x 7.39 in H |
| Number of Auxiliary Contacts: | 7 |
| Series: | CR460 Series |
| Type: | Electrically Held Standard Control |
| UNSPSC: | 39121529 |
| UPC: | 00783166622810 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB CR463L70AJA
Brand: ABB
Part Number: CR463L70AJA
Additional Description: ABB -CR463L70AJA (N) LIGHTING CONTACTOR-OPEN NON-CANCELABLE, NON-RETURNABLE
Catalog Description: CR463L Electrically Held Contactors. 30A (2-12 pole). Standard Assembled Forms. Contact position indication—when button protrudes, contact is closed. Power poles are available as single or double poles, creating 74 different circuit combinations. Convenient side access field power wiring. Contact configuration indicator. Standard base for all pole configurations. Robust pole terminals accept up to two #8 AWG wires. Manual operator. Fast, sure three-point mounting. Enclosed contacts resist contaminants for greater reliability. Combination slotted/#2 Phillips screws. Common, easily installed power poles change from NO to NC (or vice versa) simply by unlatching and rotating 180°. Power poles rated for the range of tasks: —30A rated contacts —15A motor rated —A600 Pilot duty rated. Easy-to-read rating label. Auxiliary contacts, rated A600, are suitable for use on low level circuits down to 12V, 5mA. Plug-in auxiliary contacts are NO when installed on the left side of the base, NC on the r
CR463L70AJA Application
For switch ballast (fluorescent or HID), tungsten, general use load, carry motor load, resistive, pilot duty rating, electrical distribution and control applicationsCR463L70AJA Item Features
- Without additional auxiliary contact
- Standard assembled forms
- Modular design permits fast, on-site configuration
- Snap-in auxiliary contacts
- Continuously rated, interchangeable coils
- Contact position indication when button protrudes, contact is closed
- Convenient side access field power wiring
- Contact configuration indicator
- Standard base for all pole configurations
- Robust pole terminals accept up to two #8 AWG wires
- Manual operator, fast, sure 3-point mounting
- Enclosed contacts resist contaminants for greater reliability
- Combination slotted/#2 Phillips screws
- Common, easily installed power poles change from NO to NC (or vice versa) simply by unlatching and rotating 180 deg
- Power poles rated for the range of tasks 30 A rated contacts, 15 A motor rated, A600 pilot duty rated
- Easy to read rating label
- Auxiliary contacts, rated A600 are suitable for use on low level circuits down to 12 VAC, 5 mA
- 110 VAC at 50 Hz, 115 to 120 VAC at 60 Hz coil voltage
CR463L70AJA Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 508 File No. E1811|cUL Listed|CE CertifiedSKU #2465905Part Number #CR463L70AJAUNSPSC39121529UPC00783166622810

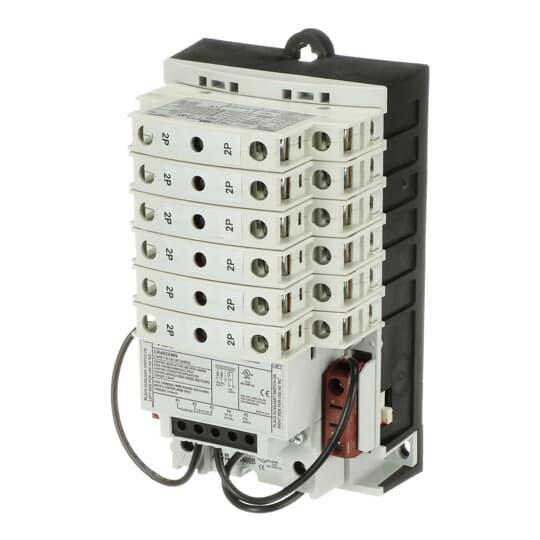

Image provided may only be a representation of final product and may include optional equipment
