Part Number # 5352BTR
SKU # 2465939
5352BTR
Hubbell 5352BTR
Part Number # 5352BTR
SKU # 2465939
Hubbell 5352BTR Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | 5352BTR |
| SKU #: | 2465939 |
| Amperage Rating: | 20 A |
| Dimensions: | 1.406 in W x 1.094 in D |
| NEMA Rating: | NEMA 5-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Back/Side Wired |
| Type: | 1-Phase Duplex Heavy Duty Self-Grounding Standard Tamper-Resistant Screw Mount |
| Country of origin: | CN |
| Material: | Composite/Thermoplastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585582245 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell 5352BTR
Brand: Hubbell
Part Number: 5352BTR
Wiring Device-Kellems Hubbell-Pro™ Straight Blade Receptacle, 1-Phase Duplex Heavy Duty Self-Grounding Standard Tamper-Resistant, 125 V, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Industrial Grade, -40 to 75 deg C, Back and Side Wired Terminal, Composite/Thermoplastic, Brown, 1.406 in W x 1.094 in D Dimensions
Additional Description: HUBW-5352BTR (N) RCPT, DUP, HUBPRO 20/125, 5-20R, TR, BN NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Straight Blade Devices, Tamper Resistant Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Brown
5352BTR Item Features
- Smooth face
- Triple wipe contacts
- Wrap-around galvanized steel strap
5352BTR Standards
UL E2186|CSA 22.2 No. 42/285|Federal Specification W-C-596|NEMA WD-6|UL94 V-2 Flammability RatingSKU #2465939Part Number #5352BTRUNSPSC39121406UPC00783585582245

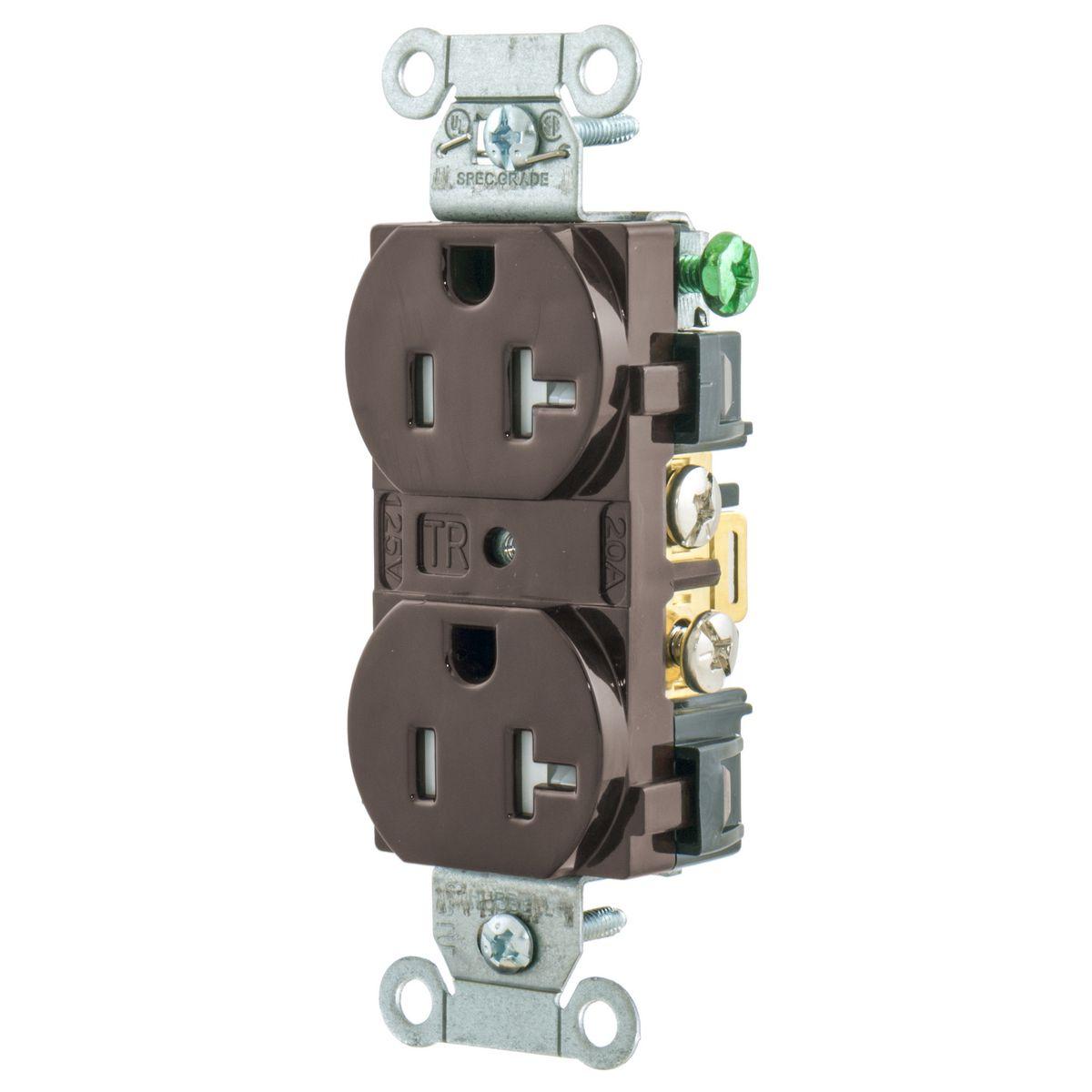

Image provided may only be a representation of final product and may include optional equipment
