1787500000
Weidmuller 1787500000
Part Number # 1787500000
SKU # 2465960
$14.91 / Each
Typical price:$17.17 / Each
Weidmuller 1787500000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1787500000 |
| SKU #: | 2465960 |
| Dimensions: | 72 mm H x 43 mm W |
| Entry Type: | M25 |
| Finish: | Powder Coated |
| Specifications: | IP65 Degree of Protection, End Locking Clamp on Lower Side, 1.2 N-m Tightening Torque, SZ 3 |
| Suitable For Use With: | RockStar NEMA Type 4X Plug Housing and HDC Enclosure |
| Temperature Rating (Degrees F): | -40 to 125 deg C |
| Type: | High |
| Country of origin: | CN |
| Material: | Die Cast Aluminum |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 32151901 |
| UPC: | 04032248204847 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$14.91 / Each
Typical price:$17.17 / Each
Quantity:

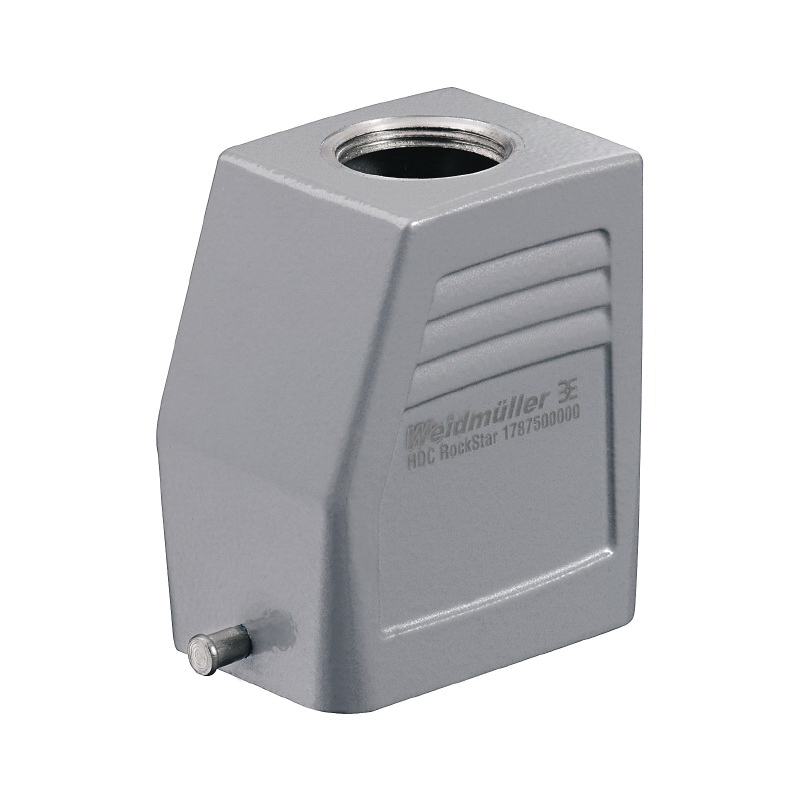

- Weidmuller Hood, High, Top Entry Position, M25 Entry, For Use With: RockStar NEMA Type 4X Plug Housing and HDC Enclosure, -40 to 125 deg C, Specifications: IP65 Degree of Protection, End Locking Clamp on Lower Side, 1.2 N-m Tightening Torque, SZ 3, Die Cast Aluminum, Gray, Powder Coated, 72 mm H x 43 mm W Dimensions
1787500000 Application
Industrial Applications1787500000 Item Features
- Special die cast alloy and the multi-layered surface sealing provide complete protection for the HDC housings
- Cleverly designed interlock system is manufactured from stainless steel
- Guarantees a long lifespan with high resistance to corrosion and impact
- Housing interlock system provides integrated safety
- Unique, patented spring system provides the housing interlock with a secure grip and prevents accidental opening
- Laser marking allows for easy and quick identification
- Each housing is permanently labelled with a laser marking so that each product can be quickly designated and positioned
1787500000 Standards
RoHS Compliant|CE Certified|cULus Recognized|REACH SVHC Lead 7439-92-1SKU #2465960Part Number #1787500000UNSPSC32151901UPC04032248204847
Image provided may only be a representation of final product and may include optional equipment
